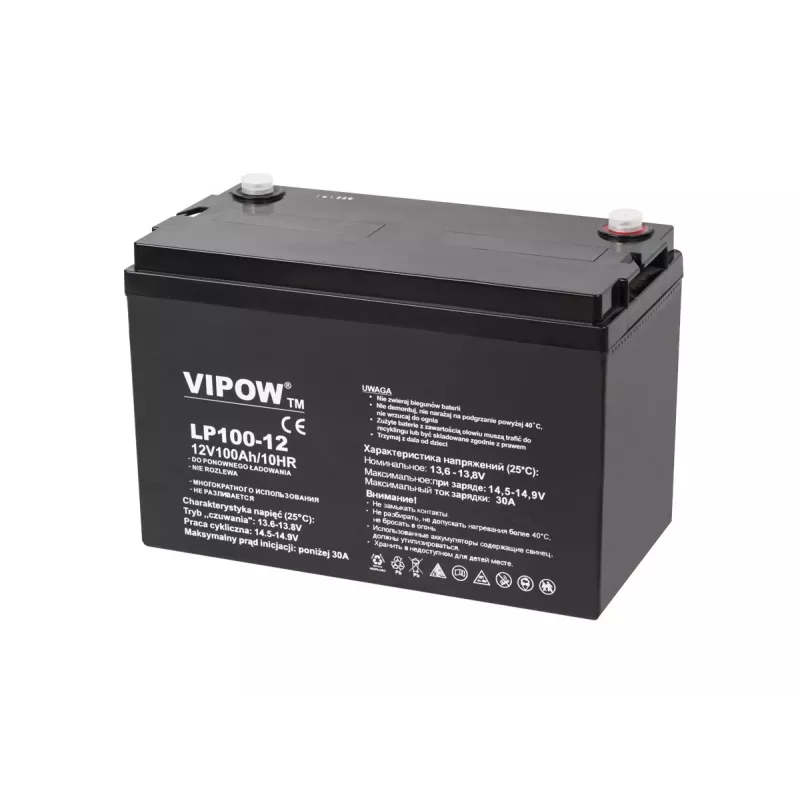

VIPOW Gel Battery 12V 100Ah

Power outages and unreliable energy storage can cripple critical systems, from solar installations to security networks. The VIPOW Gel Battery 12V 100Ah solves this by delivering dependable, maintenance-free deep-cycle power with a long service life and robust construction for demanding applications.

Who is it for

This battery is ideal for users of off-grid solar systems, uninterruptible power supplies (UPS), telecommunications equipment, emergency lighting, and security systems. It suits both professionals and DIY enthusiasts who need a reliable, sealed lead-acid battery that requires no upkeep and performs consistently in varied conditions.

Main features

• Gel electrolyte technology: prevents leakage, allows operation in any orientation, and enhances deep-cycle durability.
• Maintenance-free and valve-regulated: no need to check water levels or add acid; safe for indoor use.
• Long design life: up to 10-12 years in float service, reducing replacement frequency.
• High cycle life: 1200 cycles at 30% depth of discharge, ideal for daily cycling in solar applications.
• Low self-discharge: less than 3% per month at 25°C, ensuring readiness after storage.
• Wide operating temperature range: from -20°C to 50°C for discharge, suitable for various climates.
• Robust ABS housing: shock-resistant and durable.
• M8 bolt and nut terminals: secure, high-conductivity connections.

Specifications

• Nominal voltage: 12V
• Nominal capacity: 100Ah (C10)
• Battery type: Gel VRLA (sealed lead-acid)
• Terminal type: M8 bolt & nut
• Design life: 10-12 years (float service)
• Cycle life: 1200 cycles @ 30% DOD
• Max. discharge current: 1000A (5 seconds)
• Internal resistance: approx. 4.5 mΩ
• Float charge voltage: 13.5V - 13.8V @ 25°C
• Cycle charge voltage: 14.4V - 14.7V @ 25°C
• Operating temperature (discharge): -20°C to 50°C
• Operating temperature (charge): -10°C to 50°C
• Operating temperature (storage): -20°C to 50°C
• Self-discharge rate: less than 3% per month @ 25°C
• Housing material: ABS
• Maintenance: maintenance-free
• Safety features: valve regulated

Tips

For optimal performance, store the battery in a cool, dry place and recharge every 6 months if not in use. Always use a compatible charger with the correct voltage settings to extend battery life.
