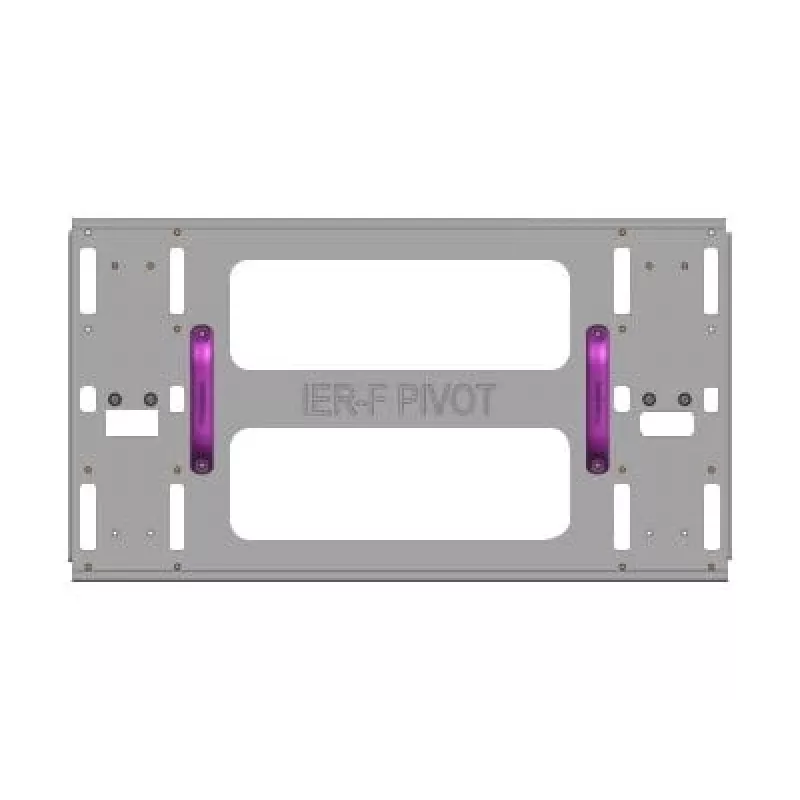

Video wall pivot mounting component Samsung CY-LJRNPF compatible with Samsung video wall panels

Mounting component Samsung CY-LJRNPF is a pivot element designed for use with Samsung video wall panels. The component provides a secure mechanical connection between display modules and the supporting frame while allowing controlled pivoting movement for alignment and access. Intended for professional video wall installations, this pivot mounting part helps technicians position panels precisely and simplifies module removal and maintenance without affecting the structural integrity of the array.

Advantages

The pivot mounting component enables precise angular adjustment of each panel for optical alignment and even bezels across the video wall. Its robust metal construction ensures stable support and long service life under continuous use in commercial environments. The part allows quick release and reattachment of individual panels during servicing, reducing downtime. Compatibility with Samsung video wall panels maintains factory-recommended mounting geometry and load distribution.

Suitable for

• Professional video wall installations in control rooms, auditoriums, retail stores, and corporate lobbies
• Technical service and on-site maintenance requiring panel removal and reattachment
• Fine alignment tasks to achieve uniform bezel spacing and seamless appearance
• Replacement of worn or damaged pivot components in existing Samsung video wall systems

Key specifications

• Function: pivot mounting element for panel alignment and service access
• Material: corrosion-resistant metal alloy for mechanical strength
• Motion: controlled pivoting action to adjust panel angle relative to frame
• Load support: engineered to carry the weight of a single video wall module within manufacturer tolerances
• Finish: durable protective coating to resist wear in commercial installations

How to use

Install the pivot component at the designated attachment points on the video wall frame and the panel according to the video wall installation guide. Secure fasteners to the specified torque to ensure stable support while allowing the pivot mechanism to move freely for alignment. Use the pivot adjustment to set panel angle and bezel alignment before tightening all mounting hardware. For servicing, follow safe removal procedures: support the panel, release the pivot fasteners, and detach the module for maintenance or replacement, then reattach and re-align as described.

Recommendations

Use only fasteners and tools that meet the installation manual specifications. Periodically inspect pivot components for loosening, corrosion, or wear, and replace any damaged parts to maintain wall alignment and safety. During installation and maintenance, follow all safety procedures for handling heavy display modules and use appropriate lifting assistance.
