VESA Rotating Plate Compulocks VRP-B Black

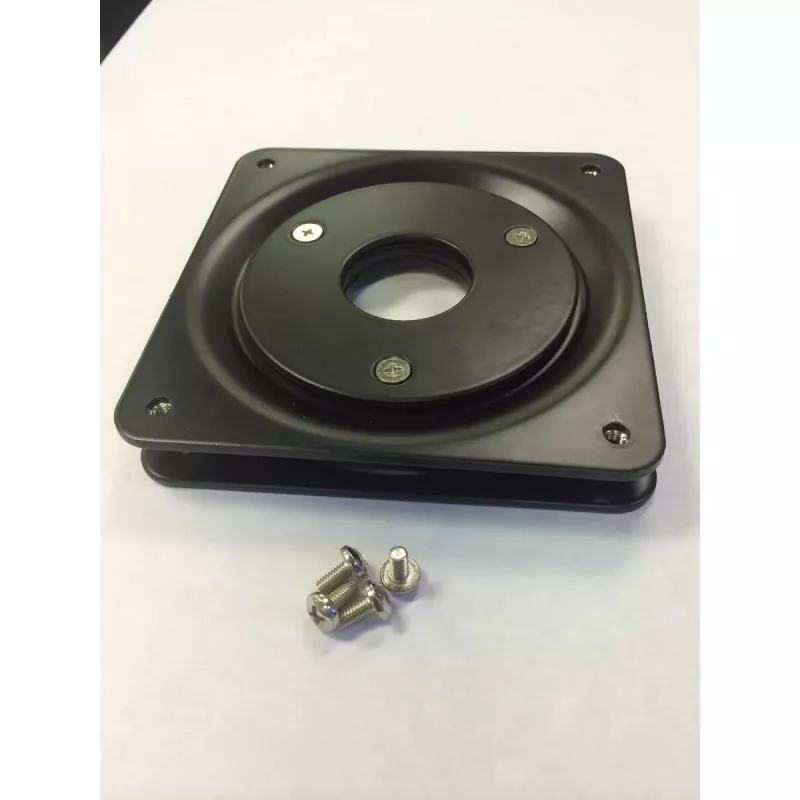

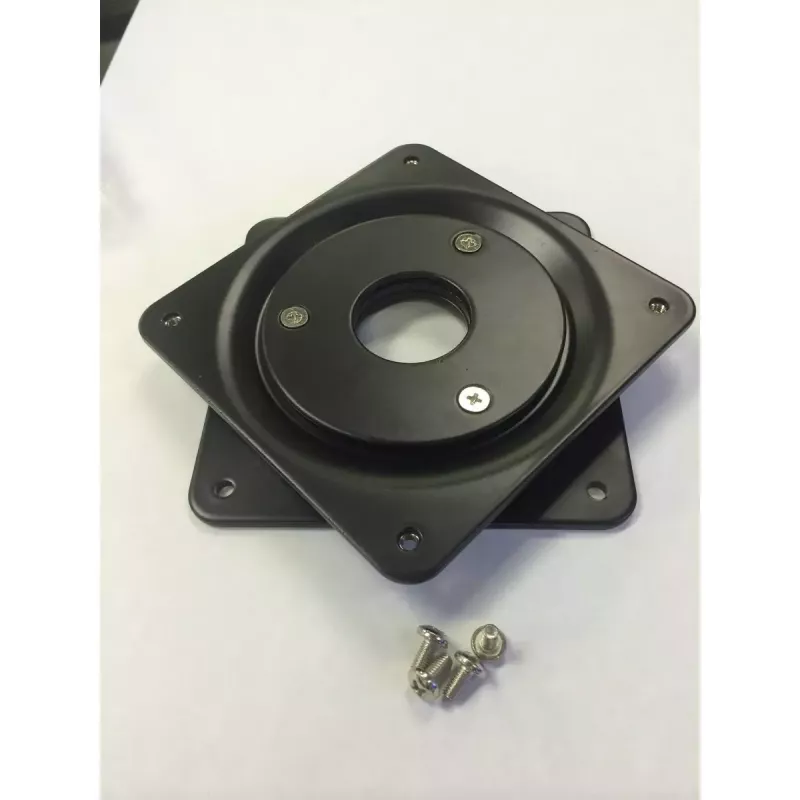

The Compulocks VESA Rotating Plate VRP-B in black is a steel mounting base designed for countertop or wall installation. It provides a 100 x 100 mm VESA interface and allows a mounted display or enclosure to rotate between landscape and portrait orientations while maintaining stability.

Advantages

Constructed from high-grade steel for durability, the VRP-B supports secure attachment to counters or walls and enables smooth rotation between display orientations. Its compact dimensions (120 mm x 120 mm x 19.9 mm) make it suitable for installations where space is limited, while the black finish integrates with most enclosures and display housings.

Suitable for

• Mounting small displays or enclosures with a 100 x 100 mm VESA interface
• Countertop installations in retail, hospitality, or reception areas
• Wall-mounted displays where rotation between portrait and landscape is required

Key specifications

• Manufacturer: Compulocks
• Model: VRP-B
• VESA interface: 100 x 100 mm
• Material: High-grade steel
• Colour: Black
• Dimensions (W x D x H): 120 mm x 19.9 mm x 120 mm
• Mounting options: Countertop or wall
• EAN: 0858420005200

How to use

Attach the rotating plate to a compatible VESA 100 x 100 mm mounting pattern on the display or enclosure using appropriate screws (not supplied). Secure the base to a stable countertop surface or to a wall using suitable fasteners for the mounting surface. Once installed, rotate the attached display between landscape and portrait as required, ensuring all fasteners remain tightened after adjustment.

Recommendations

Use fastening hardware appropriate for the mounting surface and the weight of the display or enclosure. Periodically check and re-tighten mounting screws to maintain stability and safe rotation.
