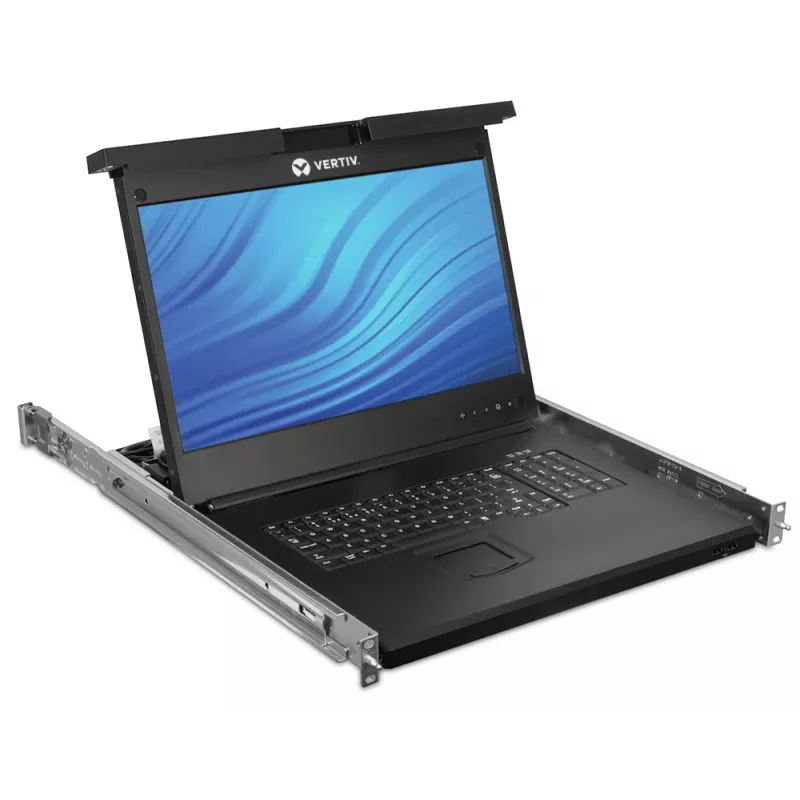

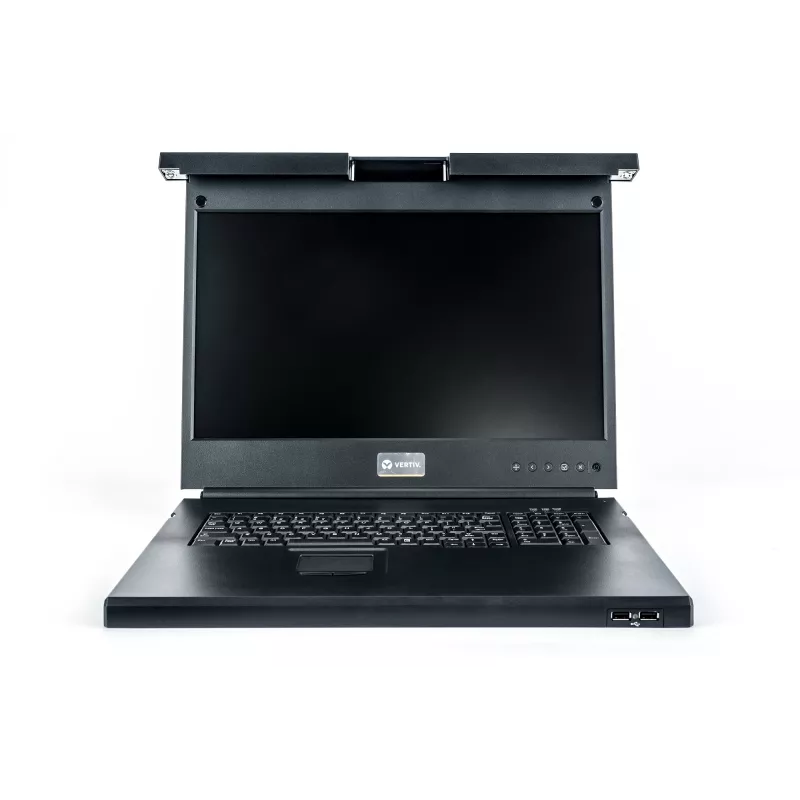

Vertiv Avocent LCD Local Rack Access Console, 8P KVM, 8 CABLES, USB KB-GER

Vertiv Avocent LCD Local Rack Access Console, 8P KVM, 8 CABLES, USB KB-GER
Vertiv Avocent LCD Local Rack Access Console, 8P KVM, 8 CABLES, USB KB-GER
Vertiv Avocent LCD Local Rack Access Console, 8P KVM, 8 CABLES, USB KB-GER
Vertiv Avocent LCD Local Rack Access Console, 8P KVM, 8 CABLES, USB KB-GER
Vertiv Avocent LCD Local Rack Access Console, 8P KVM, 8 CABLES, USB KB-GER
Vertiv Avocent LCD Local Rack Access Console, 8P KVM, 8 CABLES, USB KB-GER
R46,889
Avocent LCD Local Rack Access ConsoleThe Avocent LRA Console family provides the simplicity, efficiency and ease of use to make it the perfect in data center access point. The LRA line enables ease of access to multiple servers making software upgrades, troubleshooting and system mo​nitoring conveni... Read More
Stock Out Of StockNo Stock Code 2407546 Brand VERTIV Model LRA185KMM8D-205 Warranty 2 Years

Shipping & Returns

Avocent LCD Local Rack Access Console
The Avocent LRA Console family provides the simplicity, efficiency and ease of use to make it the perfect in data center access point. The LRA line enables ease of access to multiple servers making software upgrades, troubleshooting and system mo​nitoring convenient and less time-consuming.

- Widescreen: 18.5” LED LCD panel with a 16:9 aspect ratio. Supports resolutions up to 1600 x 1200 at both full screen and aspect ratio.
- Form Factor: Easy access in the 1U space. Detent lock engages when stowed in the rack. Room for KVM installation in the same 1U space
- KVM Compatibility: LRA Consoles are compatible with all Avocent data center KVM switches
- User Interface: On-Screen menu has an intuitive design and can be accessed in 7 languages.
- Data Center Local Access: Complete entry point to local servers when needed.
- Ease of use: Full desktop style keyboard with number pad, touch pad and 2 USB 2.0 pass through ports.

Vertiv Avocent LCD Local Rack Access Console, 8P KVM, 8 CABLES, USB KB-GER. Display diagonal: 48.3 cm (19"), Display resolution: 1366 x 768 pixels, Display: LED LCD. Interface: USB, Keyboard port type: USB, Mouse port type: USB. Keyboard language: German, Keyboard layout: QWERTZ. Certification: UL, CE, CCC, BSMI, C-Tick, EAC, VCCI, KCC\nFCC Class A. Power supply type: AC, Power consumption (typical): 17 W, Power consumption (standby): 0.5 W

Key Highlights

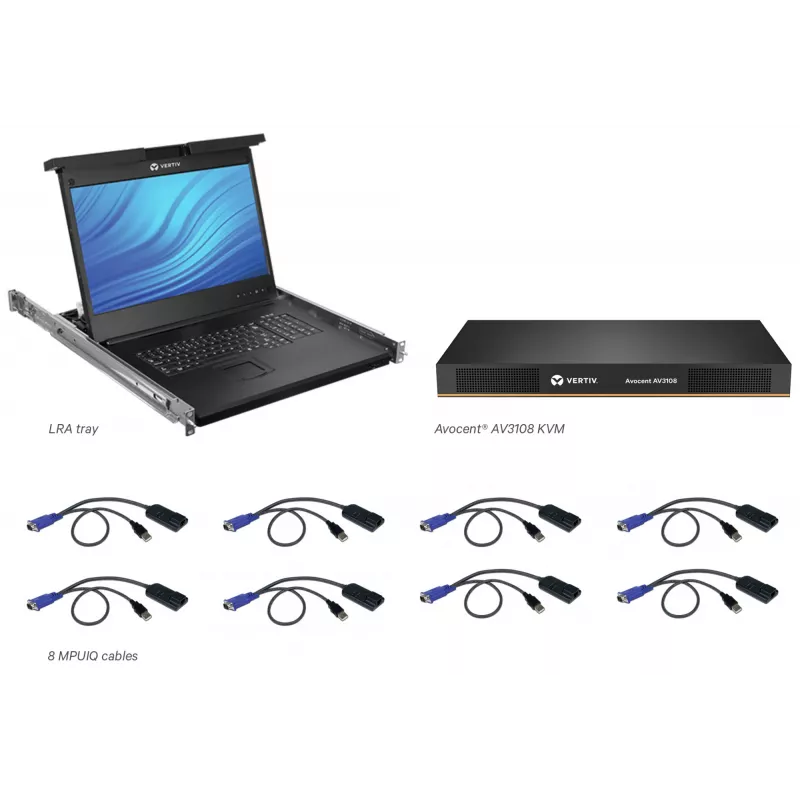

  • Integrated 8 Port KVM Switch inc Interface Adapters - Install all within the same U space, providing local and/or remote access to servers
  • Form Factor - 1U Space
  • Ease of use - Full desktop style keyboard with number pad, touch pad and 2 USB2.0 pass through ports
  • Environmentally responsible - Low power usage during operation and standby
  • Global availability - Certifications and keyboard language support
  • 48.3 cm (19") TFT 1366 x 768 pixels 250 cd/m² 1000:1
  • Rack mounting 1U
  • On Screen Display (OSD)
  • Keyboard port type: USB Mouse port type: USB Video port type: VGA
  • Keyboard number of keys: 103 Keyboard layout: QWERTZ
  • Plastic, Steel
  • Black
Specifications
AC adapter frequency
50 - 60 Hz
AC adapter included
Yes
AC adapter input voltage
90 - 264 V
AC adapter output voltage
12 V
Aspect ratio
1:1, 16:9
Built-in KVM switch
Yes
Built-in touchpad
Yes
Buttons
Auto, Menu
Cables included
KVM
Certification
UL, CE, CCC, BSMI, C-Tick, EAC, VCCI, KCC\nFCC Class A
Contrast ratio (typical)
1000:1
Depth
533.4 mm
Display
LED LCD
Display brightness
250 cd/m²
Display connection
Yes
Display diagonal
48.3 cm (19")
Display resolution
1366 x 768 pixels
Display type
TFT
Height
44.5 mm
Height (in Rack Units)
1
Interface
USB
Keyboard language
German
Keyboard layout
QWERTZ
Keyboard number of keys
103
Keyboard port type
USB
KVM switch ports quantity
8
LED indicators
Yes
Material
Plastic, Steel
Maximum resolution
1600 x 1200 pixels
Mounting brackets included
Yes
Mounting depth (max)
90.9 cm
Mounting depth (min)
70.6 cm
Mouse port type
USB
Number of computers controlled
8
Number of OSD languages
7
On Screen Display (OSD)
Yes
On/off switch
Yes
Operating relative humidity (H-H)
10 - 80%
Operating temperature (T-T)
0 - 50 °C
Output current
3.3 A
Package dimensions (WxDxH)
749.3 x 584.2 x 216 mm
Package type
Box
Package weight
15.4 kg
Pixel pitch
300 x 300 mm
Plug and Play
Yes
Power consumption (standby)
0.5 W
Power consumption (typical)
17 W
Power supply type
AC
Product colour
Black
Quick installation guide
Yes
Rack capacity
1U
Rack mount kit
Yes
Rack mounting
Yes
Relative humidity
10 - 80%
Size (imperial)
48.3 cm (19")
Storage temperature (T-T)
-20 - 70 °C
USB 2.0 Type-A ports quantity
2
Video port type
VGA
Viewable size diagonal
47 cm
Viewable size, horizontal
41 cm
Viewable size, vertical
23 cm
Viewing angle, horizontal
170°
Viewing angle, vertical
160°
Weight
9.98 kg
Width
482.6 mm

Leaflet

Open Leaflet
