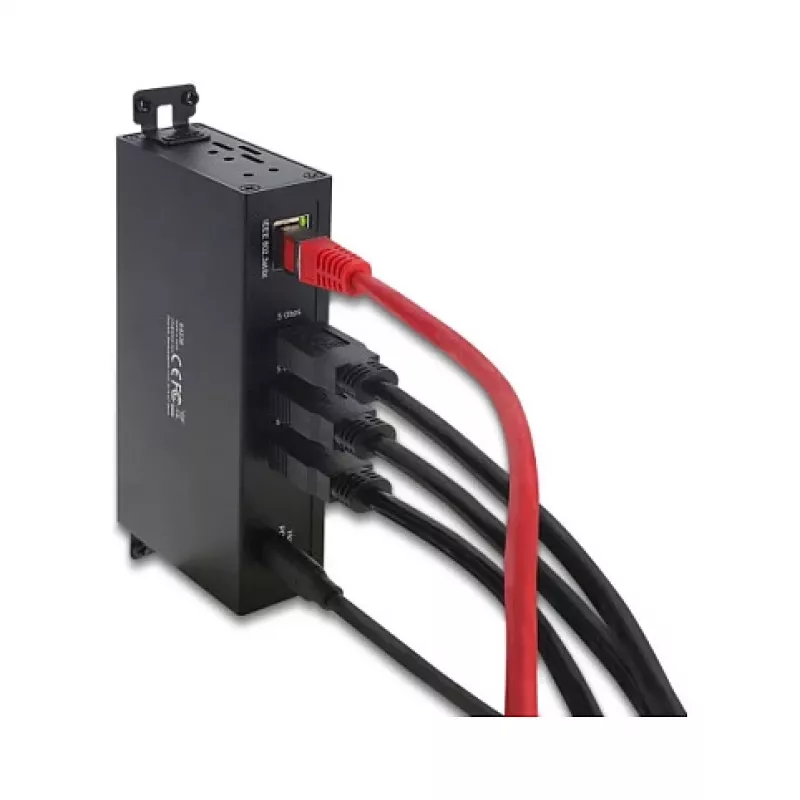

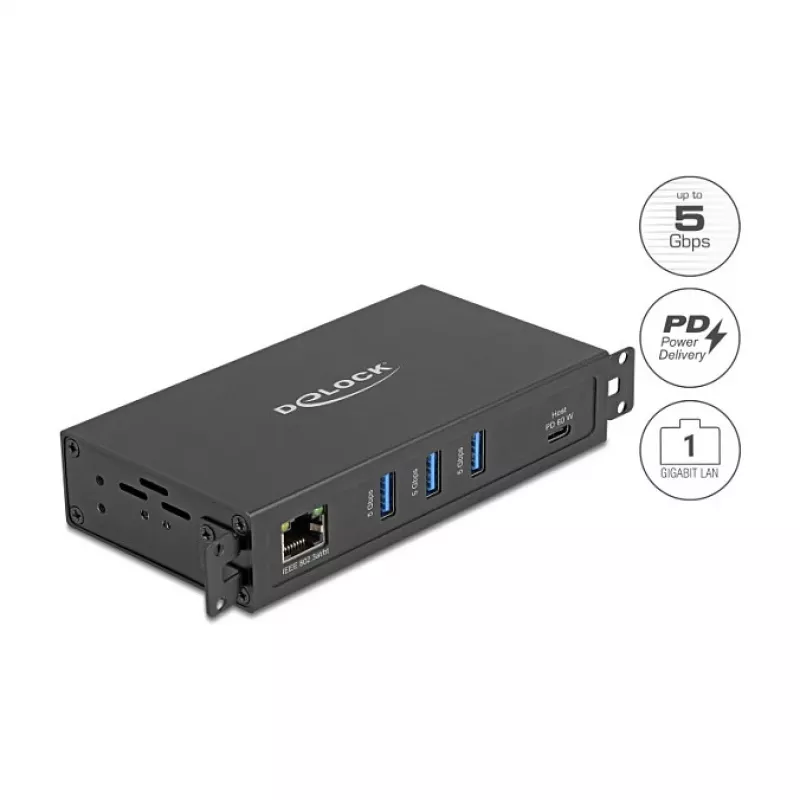

USB hub DELOCK 3-port 5 Gbps with RJ45 Gigabit PoE++ and USB Type-C host, metal case, 1.5 kV isolation, black

DELOCK USB hub with three USB-A ports and an integrated RJ45 Gigabit LAN port with PoE++ support offers a compact solution for expanding connectivity on systems with a USB Type-C host interface. The hub supports data transfer rates up to 5 Gbps on the USB ports and provides a metal housing that includes 1.5 kV isolation to protect against certain electrical disturbances. The device is supplied in black finish and combines USB expansion and network access in a single, space-saving unit suitable for desktop and embedded environments.

Advantages

The hub merges three high-speed USB 3.0 ports (up to 5 Gbps) with a Gigabit Ethernet interface that accepts Power over Ethernet ++ (PoE++) for powering compatible devices over the network cable. The metal enclosure increases mechanical durability and heat dissipation while the built-in 1.5 kV isolation enhances protection against potential ground loops and transient interference. The USB Type-C host connector simplifies connection to modern laptops and single-board computers, making the unit a compact, multipurpose peripheral.

Suitable for

• Expanding USB connectivity on laptops, mini-PCs and single-board computers
• Networked devices that require Gigabit LAN with PoE++ power delivery
• Desktop workstations and embedded systems that benefit from a robust metal housing and electrical isolation

Key specifications

• USB ports: 3 × USB-A, supported data rate up to 5 Gbps
• Host interface: USB Type-C connector
• Network: RJ45 Gigabit Ethernet port with PoE++ support
• Enclosure: metal housing, black finish
• Electrical isolation: 1.5 kV isolation between relevant interfaces
• Form factor: compact hub suitable for desktop or embedded use

How to use

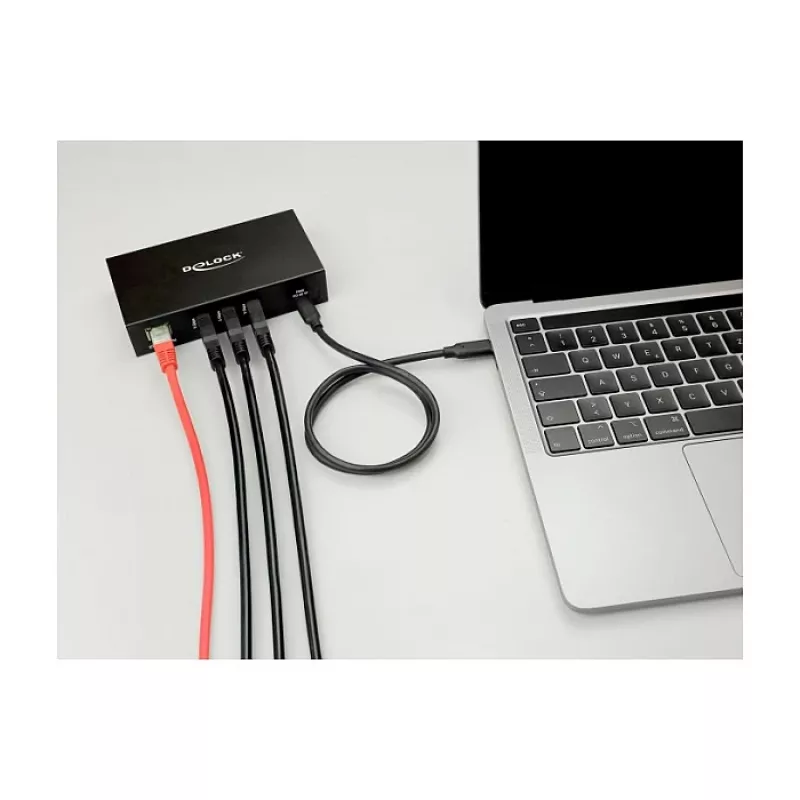

Connect the hub to the host device using the USB Type-C connector. Attach USB devices to any of the three USB-A ports to enable data transfer at speeds up to 5 Gbps where supported by the connected peripherals and the host. Connect a network cable to the RJ45 port to access Gigabit LAN; when using PoE++ switches or injectors, the hub supports power delivery to compatible powered devices over the network cable. Place the hub on a stable surface and ensure adequate ventilation around the metal enclosure during extended operation.

Recommendations

Use certified USB cables and a compliant PoE++ power source when powering devices via the RJ45 port. Verify host and peripheral compatibility for USB 3.0/5 Gbps operation and ensure the host’s USB-C port supports data functions. Avoid placing the hub in environments with excessive moisture or dust to maintain the integrity of the metal housing and isolation features.
