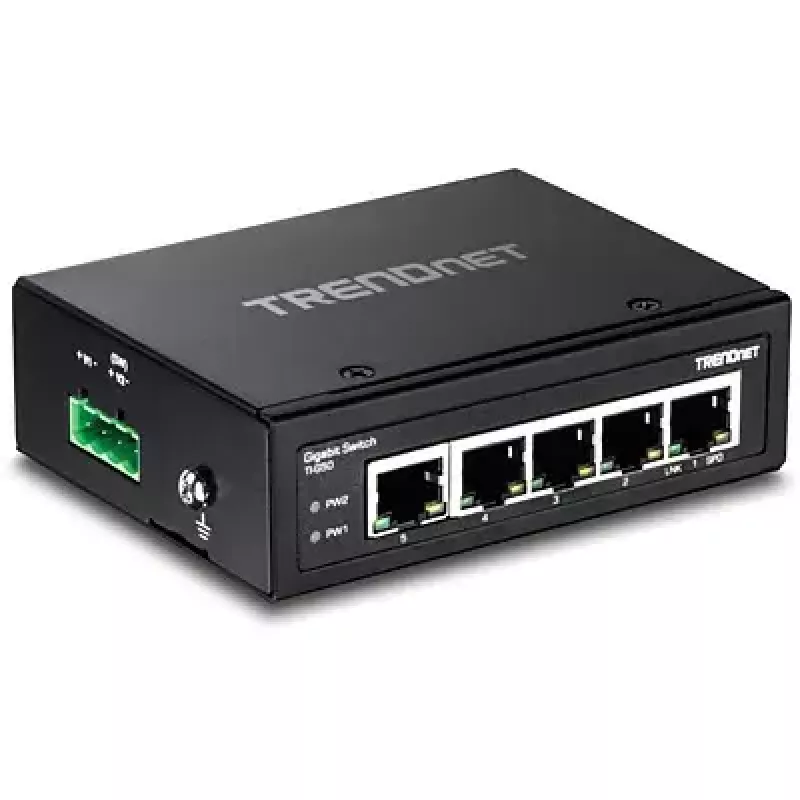

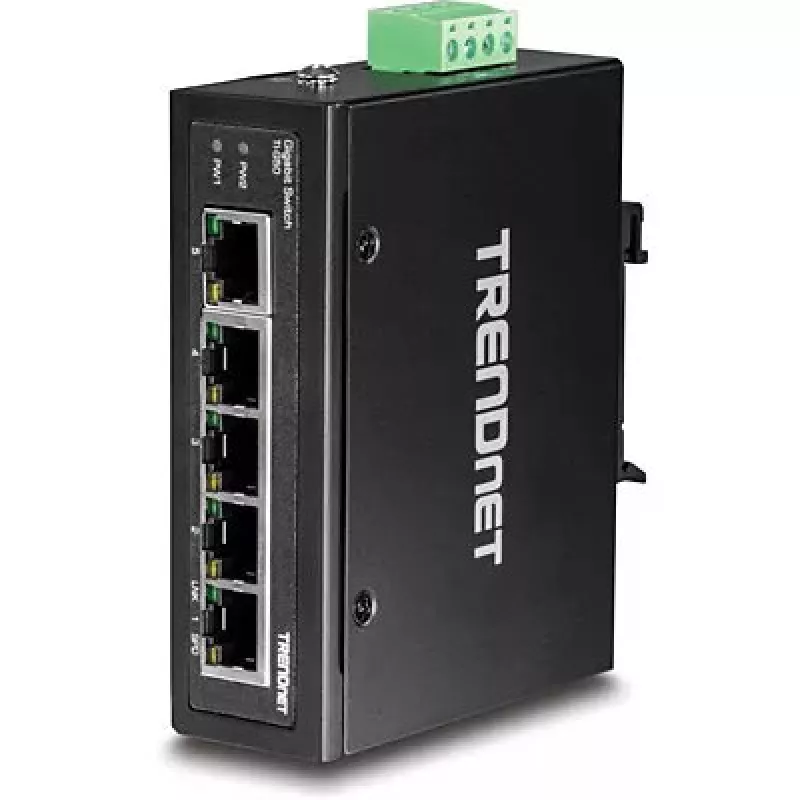

Unmanaged Switch Trendnet TI-G50

The TRENDnet TI-G50 is an unmanaged DIN-rail Ethernet switch designed for industrial environments. The compact IP30-rated unit provides five Gigabit RJ-45 ports (10/100/1000 Mbps), full-duplex operation and a MAC address table of 8,000 entries, delivering a total switching capacity of 10 Gbit/s for reliable device connectivity in automated and industrial networks.

Advantages

The TI-G50 uses hardened components and an IP30 enclosure to withstand industrial conditions. It is an unmanaged switch, so it requires no configuration and supports plug-and-play deployment. Dual redundant power inputs with overload current protection enable continuous operation in applications where uptime is critical. Compliance with IEEE 802.3 family standards ensures interoperable wired Ethernet connectivity.

Suitable for

• Factory automation and control cabinets
• Machine vision and industrial cameras
• Remote I/O and PLC connectivity
• Small industrial network segments requiring Gigabit ports

Key specifications

• Model: TRENDnet TI-G50
• Switch type: Unmanaged
• Ports: 5 × RJ-45 Gigabit (10/100/1000 Mbps)
• Switching capacity: 10 Gbit/s
• MAC address table: 8,000 entries
• Networking standards: IEEE 802.3, 802.3u, 802.3x, 802.3ab
• Housing rating: IP30 (DIN-rail mount)
• Weight: 0.168 kg
• 10G support: No
• Power: Dual redundant inputs (power adapter sold separately, TI-M6024)

How to use

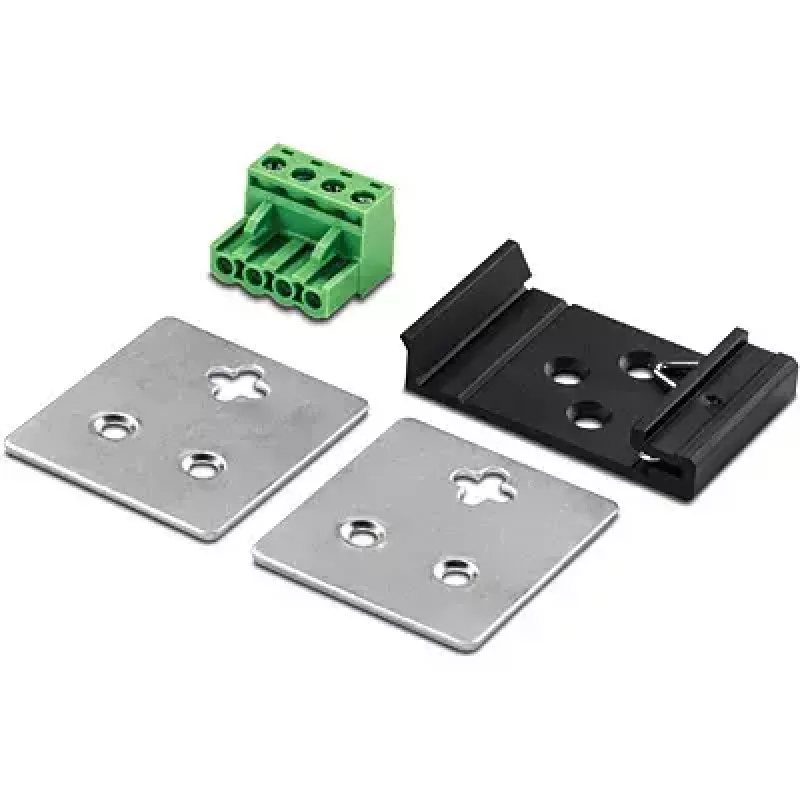

Mount the TI-G50 on a DIN rail inside an electrical cabinet and connect the network devices to the RJ-45 ports using standard Ethernet cables. Provide power via the redundant power inputs (use the specified power adapter TI-M6024 or compatible supply) and verify link/activity LEDs to confirm connectivity. As an unmanaged switch, no software configuration is required; devices receive network access immediately after physical connection.

Recommendations

Install the TI-G50 in a clean, ventilated enclosure and ensure the selected power adapter matches the device input specifications. For critical systems, use both redundant power inputs and place the switch away from strong electromagnetic interference sources to maintain stable operation.
