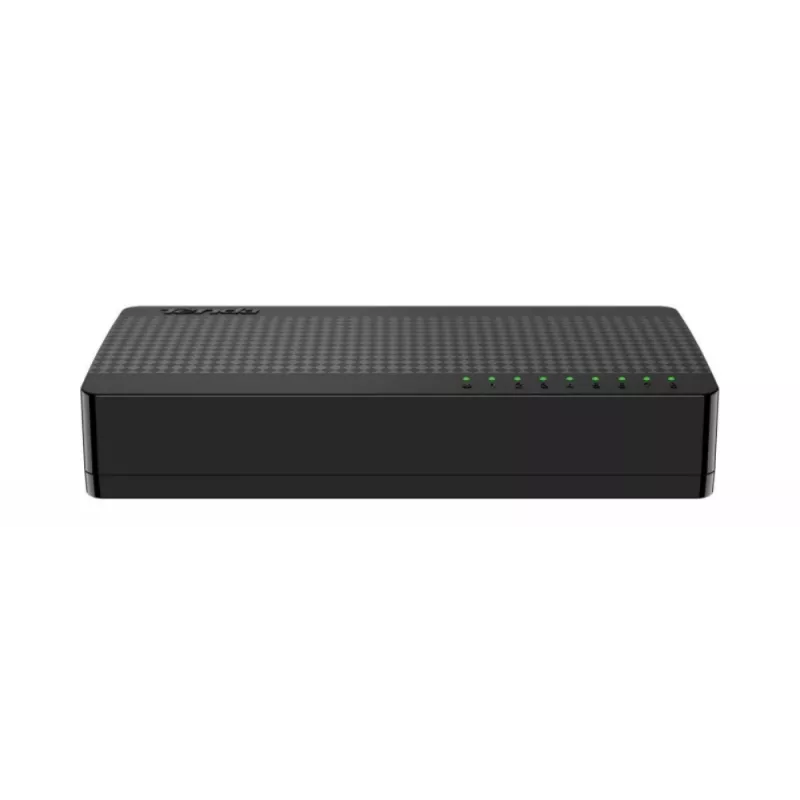

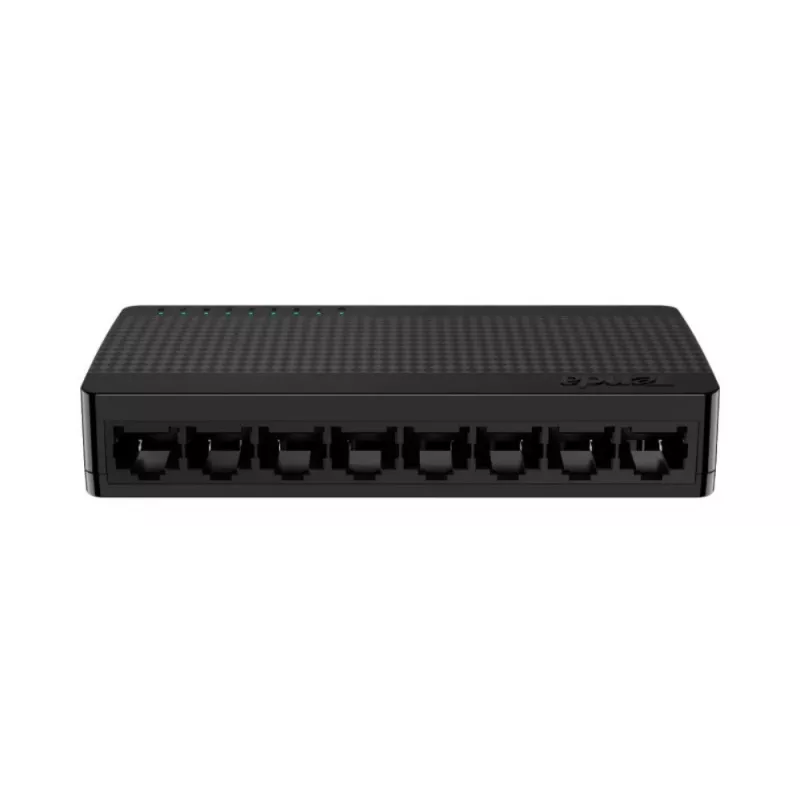

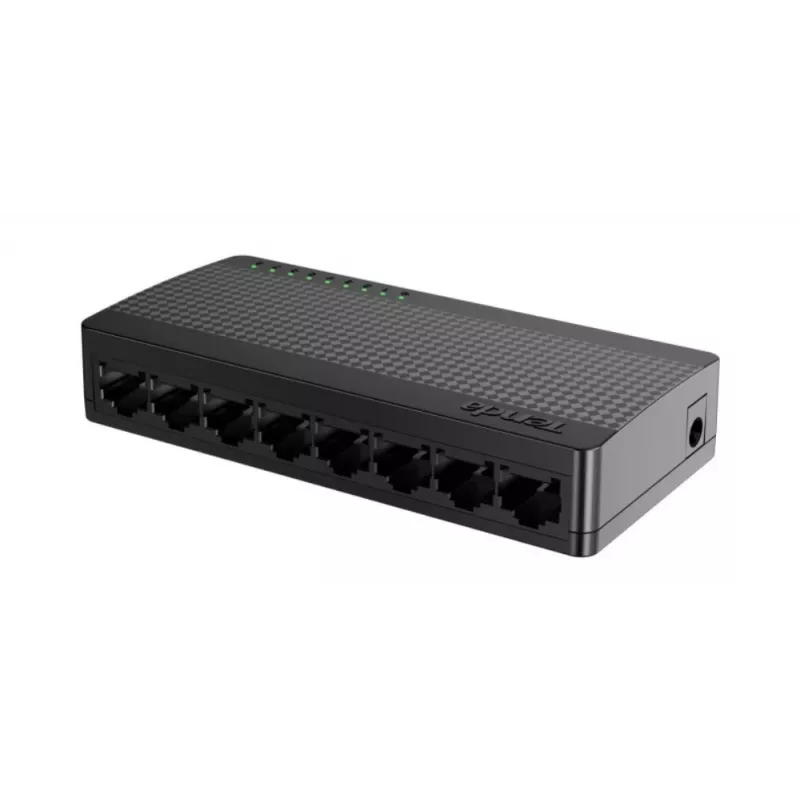

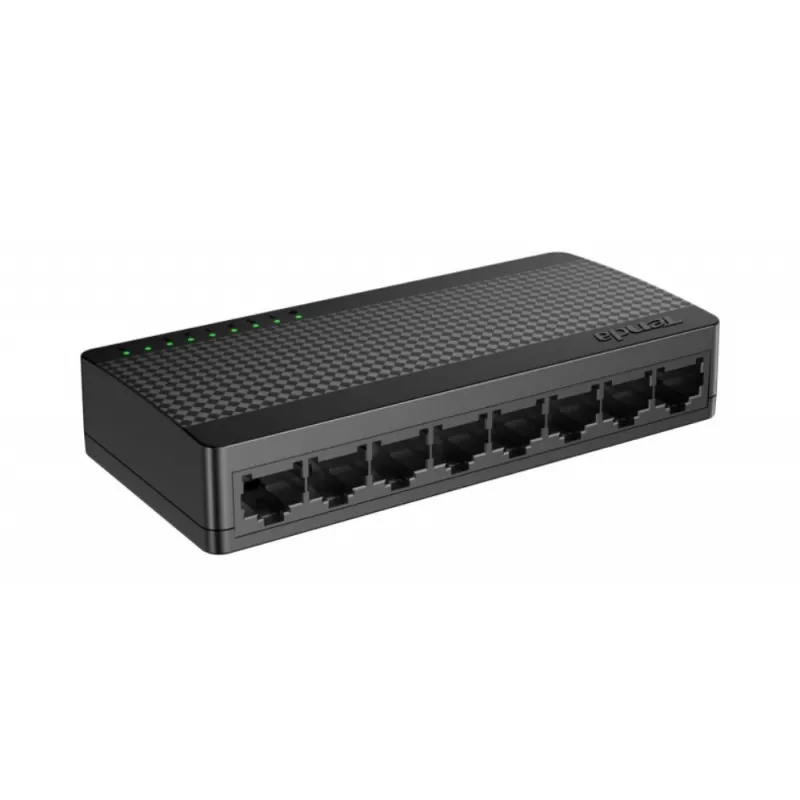

Unmanaged Switch Tenda SG108M Gigabit Ethernet 8 Ports

The Tenda SG108M is an unmanaged 8-port Gigabit Ethernet switch designed to provide full-duplex Gigabit connectivity for small office and home networks. With a compact metal housing and wall-mount option, the SG108M delivers reliable wired connections for HD surveillance, computers, printers and other networked devices without configuration.

Advantages

All eight ports support Gigabit speeds and auto MDI/MDIX, enabling up to 2000 Mbps aggregated throughput in full-duplex mode and simple plug-and-play setup. The small form factor (124 × 59 × 23 mm) saves space and the unit is compatible with IEEE 802.3/802.3u/802.3ab/802.3x standards. As an unmanaged switch it requires no configuration and supports basic network expansion for homes and small businesses.

Suitable for

• Connecting IP surveillance cameras and NVRs
• Wired connections for desktop computers and laptops
• Networked printers and NAS devices
• Smart TVs, game consoles and media players
• Small office and home network expansions

Key specifications

• Model: Tenda SG108M
• Ports: 8 × Gigabit Ethernet (10/100/1000) RJ-45
• Switch type: Unmanaged
• Switching capacity: 16 Gbit/s
• MAC address table: 8000 entries
• Networking standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x
• Power input: DC 5 V
• Dimensions: 124 × 59 × 23 mm
• Color: Black
• Wall-mountable: Yes

How to use

Place the SG108M on a flat surface or attach it to a wall using the mounting holes. Connect the switch to a power adapter (DC 5 V) and plug Ethernet cables from your router, cameras or other devices into the RJ-45 ports. The switch operates automatically—each port supports auto MDI/MDIX so devices can be connected without crossover cables or configuration. LEDs indicate link/activity status for easy monitoring.

Recommendations

For reliable HD video monitoring, connect each IP camera to a dedicated Gigabit port and ensure the uplink to the network/NVR is also Gigabit-capable. Install the switch in a ventilated location and avoid exposure to heat or moisture. Use quality Cat5e or Cat6 cables to achieve full Gigabit performance.
