Unmanaged Switch LevelOne FSW-0808TX 8-Port Fast Ethernet

The LevelOne FSW-0808TX is an unmanaged, wire-speed Fast Ethernet switch offering eight 10/100 Mbps RJ-45 ports. It supports auto-negotiation and auto-MDI/MDIX on every port, allowing direct connections to routers, servers, hubs or other switches without crossover cables or special uplink ports. The switch is plug-and-play with LED indicators for link/activity and basic diagnostics, and its compact design includes a magnetic base for flexible desktop or space-limited placement.

Advantages

The switch provides eight 10/100BASE-TX ports with full/half duplex operation and auto-negotiation, plus auto-MDI/MDIX to simplify cabling. It features a 1K MAC address table for automatic learning and aging and supports IEEE 802.3x flow control to reduce packet loss and improve reliability. No software configuration is required, enabling immediate deployment.

Suitable for

• Expanding wired network ports in small offices or home offices
• Connecting desktop PCs, printers and networked peripherals
• Adding ports to routers or existing switches for small workgroups
• Temporary or compact workspace installations where space is limited

Key specifications

• Type: Unmanaged Fast Ethernet switch
• Ports: 8 × 10/100BASE-TX RJ-45
• MAC table: 1024 entries (1K)
• Switching capacity: 1.6 Gbit/s (wire-speed for all ports)
• Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Duplex: Full/Half duplex, Auto-Negotiation
• Auto features: Auto-MDI/MDIX
• Color: Grey

How to use

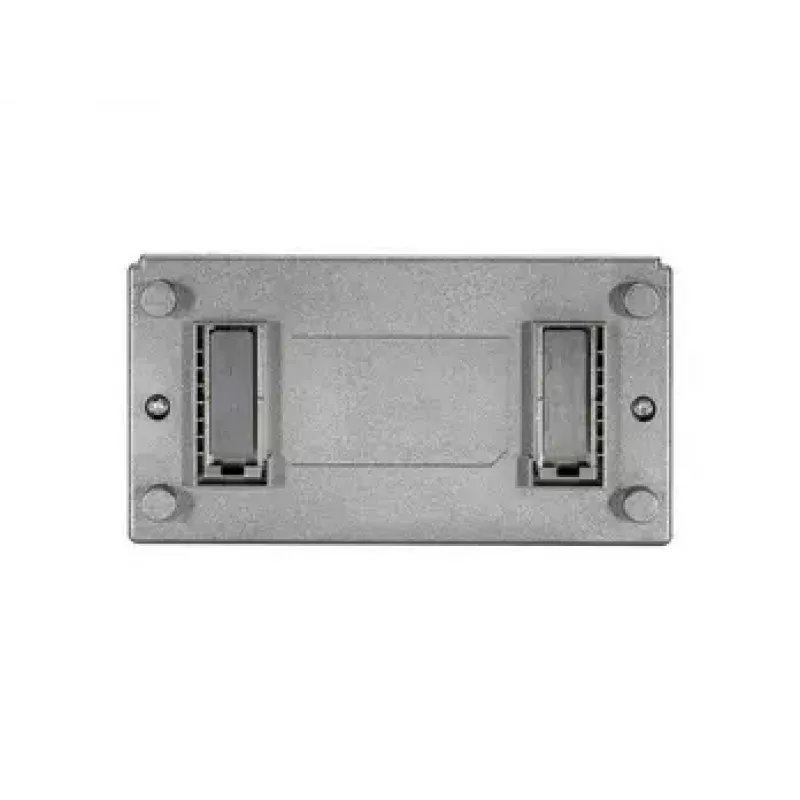

Place the switch on a flat surface or attach it using the magnetic base. Connect network devices using standard Cat5e/Cat6 cables to any of the eight RJ-45 ports; the ports will auto-negotiate speed and duplex and detect MDI/MDIX automatically. Plug in the power adapter and observe the LED indicators to confirm link and activity status. No additional configuration or software installation is necessary.

Recommendations

For best results, use Cat5e or higher cabling and ensure connected devices are within standard Ethernet distance limits. Position the switch in a ventilated area and avoid placing it near strong electromagnetic sources. If deploying in larger networks, place the switch at the network edge or in small aggregation scenarios rather than as a core switch.
