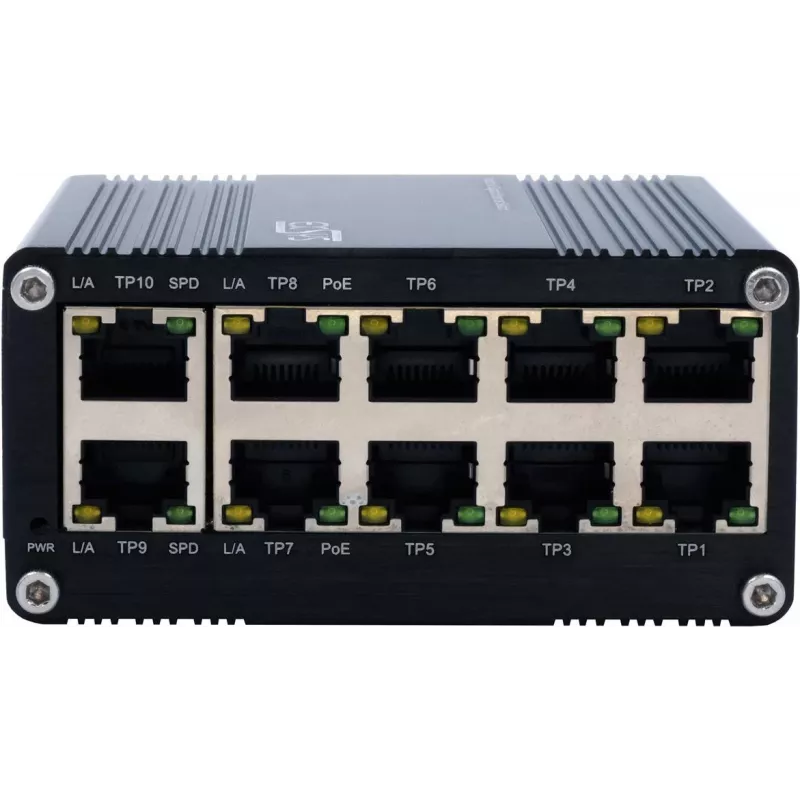

Unmanaged PoE Switch Exsys EX-62025POE 10-Port Gigabit, 802.3af/at PoE support

The Exsys EX-62025POE is an unmanaged 10-port Gigabit PoE switch that combines data switching and Power over Ethernet in a compact, plug-and-play design. It offers ten Gigabit Ethernet ports with support for 802.3af and 802.3at PoE standards, allowing network installers to deliver both power and connectivity over a single cable. The device is designed for environments where simple deployment, reliable connectivity and minimal configuration are required, such as small offices, retail spaces and CCTV systems.

Advantages

This unmanaged PoE switch provides full Gigabit throughput on all ports and automatic PoE negotiation to power compatible devices such as IP cameras, wireless access points and VoIP phones. Its plug-and-play operation eliminates the need for manual configuration, reducing installation time and technical overhead. The integrated PoE functionality reduces separate power cabling, simplifies site layout and enables flexible placement of powered devices. Robust hardware design supports continuous operation in small network environments.

Suitable for

• Small office networks requiring multiple wired Gigabit connections with PoE
• Retail installations with PoE-enabled access points and POS terminals
• CCTV and surveillance systems using PoE IP cameras
• VoIP phone deployments where centralized power simplifies wiring
• Network extensions in locations without nearby AC outlets

Key specifications

• Number of ports: 10 Gigabit Ethernet ports
• PoE standards supported: IEEE 802.3af and IEEE 802.3at
• Data rate: Gigabit (10/100/1000 Mbps) per port
• Operation mode: Unmanaged, plug-and-play switching
• Power delivery: Per-port PoE power allocation compatible with af/at devices
• Form factor: Compact desktop or rack-adaptable housing
• Typical use environment: Small office, retail, CCTV and VoIP deployments

How to use

Install the switch on a stable surface or in a network cabinet and connect the switch to a suitable AC power source. Use Ethernet cables to connect IP cameras, wireless access points, VoIP phones or other compatible devices to the Gigabit ports. The switch will automatically detect PoE-capable devices and supply power according to 802.3af/at specifications; no software configuration is required. Connect the uplink port to your router or core network device to provide Internet access or wider LAN connectivity.

Recommendations

Verify the total PoE power budget required by connected devices and ensure the switch can supply sufficient power for simultaneous operation. Use quality Cat5e or Cat6 cables for reliable Gigabit performance and follow standard network grounding and mounting practices. For deployments with higher power or management needs, consider a managed PoE switch or additional power sources.
