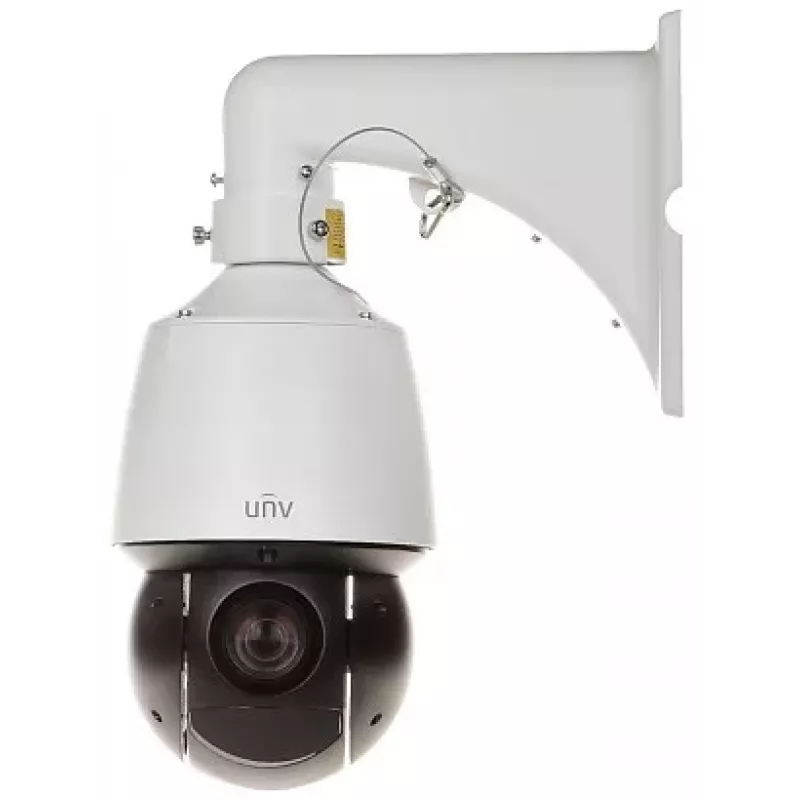

UNIVIEW IPC6424SR-X25-VF-B 4MP 25x IR Network PTZ Camera

The UNIVIEW IPC6424SR-X25-VF-B is a high-performance 4 Megapixel PTZ network camera designed for demanding surveillance applications. Featuring a 1/2.8" Progressive Scan CMOS sensor, 25x optical zoom, and 150m IR distance, it delivers clear images day and night. With 120dB True WDR, H.265 compression, and IP66/IK10 protection, this camera is ideal for outdoor perimeter monitoring, city surveillance, and industrial sites.

Advantages

Exceptional 25x optical zoom (4.8~120mm) with 16x digital zoom for detailed long-range monitoring. Smart IR technology ensures uniform illumination up to 150m. True 120dB WDR handles high-contrast scenes, while H.265 compression reduces bandwidth and storage costs. Rugged IP66 and IK10 ratings guarantee reliable operation in harsh environments.

Suitable for

• Perimeter security for airports, railways, and highways
• City surveillance and traffic monitoring
• Industrial and warehouse facilities
• Large commercial and residential estates

Key specifications

• 4 Megapixel (2560x1440) resolution at 30fps
• 25x optical zoom, 4.8~120mm, F1.5~F3.8
• 360° endless pan, -15°~90° tilt with auto flip
• Smart IR up to 150m
• 120dB True WDR
• H.265/H.264/MJPEG compression
• Min. illumination: Color 0.002 Lux, B/W 0.001 Lux, 0 Lux with IR
• MicroSD slot up to 256GB
• PoE+ (IEEE 802.3at) and DC 12V power
• IP66, IK10, -40°C~70°C operating temperature

Recommendations

For optimal performance, use a PoE+ switch or injector. Pair with UNIVIEW NVR for seamless integration. Ensure proper mounting to achieve full pan/tilt range.
