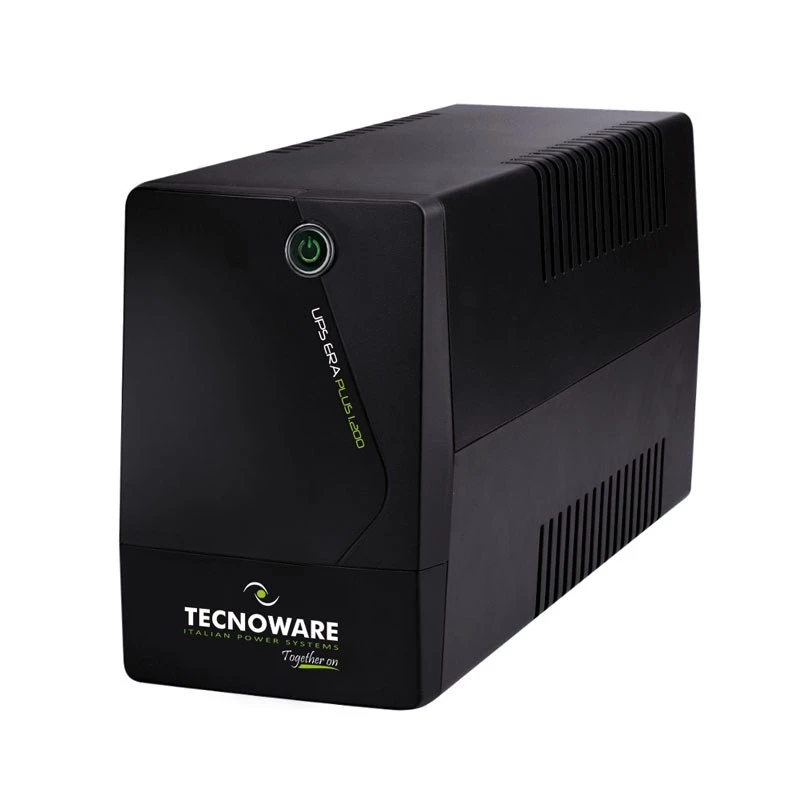

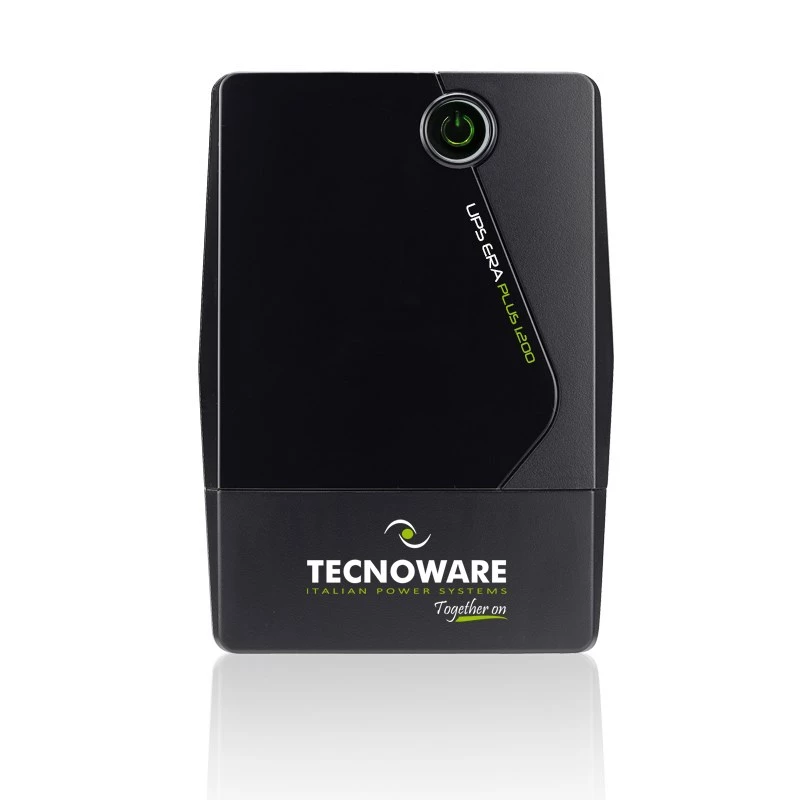

Uninterruptible Power Supply TECNOWARE FGCERAPL1202SCH, 1.2 kVA / 840 W, 2 AC outlets, Micro‑USB, sealed lead‑acid, 4.5 kg

The Tecnoware FGCERAPL1202SCH is a compact Standby (Offline) uninterruptible power supply with a rated capacity of 1.2 kVA and an output power of 840 W. It includes two Type F AC outlets, a Micro-USB B port for communication, and a sealed lead acid (VRLA) battery that provides approximately 10 minutes of backup at full load and around 40 minutes at half load. The unit has a compact form factor, weighs 4.5 kg and has an IP20 protection rating, making it suitable for home and office environments.

Advantages

The UPS offers a compact design and straightforward standby topology for basic power protection. Its sealed lead acid battery requires low maintenance, and the Micro-USB B port enables connection to monitoring equipment or a computer. Two Type F outlets allow convenient connection of essential devices while the IP20 rating and single-phase input/output simplify installation in typical indoor settings.

Suitable for

• Home desktop computers and peripherals
• Small office workstations and network equipment
• Point-of-sale terminals and cash registers
• Modems, routers and small NAS devices
• Telephony and small server closets with light loads

Key specifications

• Topology: Standby (Offline)
• Rated capacity: 1.2 kVA
• Output power: 840 W
• Input voltage: 230 V
• Input/output frequency: 50/60 Hz
• Input phases / Output phases: 1 / 1

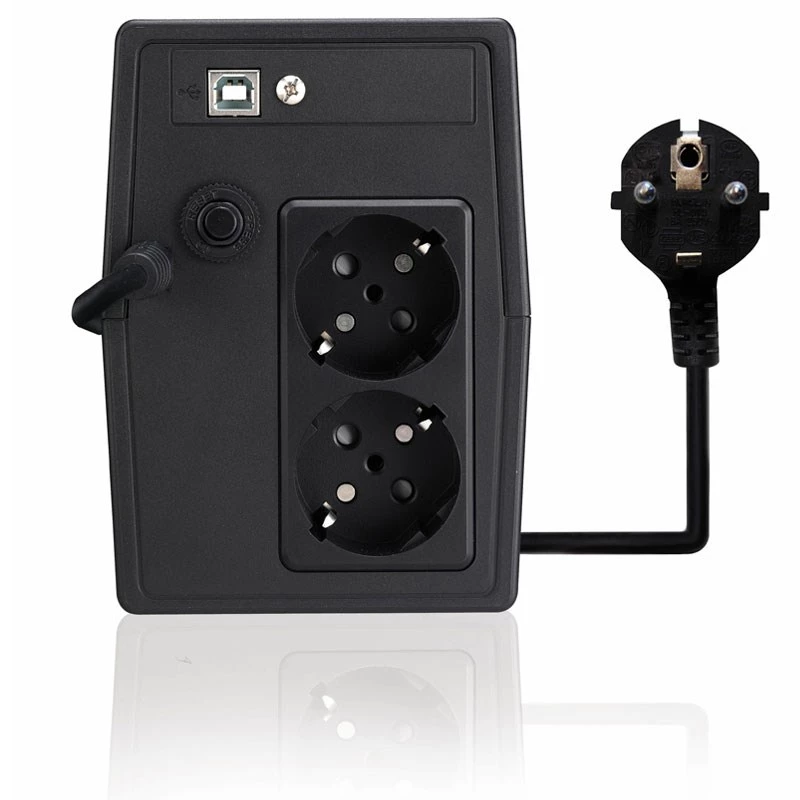

• AC outlet type and quantity: Type F, 2 outlets
• Battery type: Sealed Lead Acid (VRLA)
• Form factor: Compact
• Operating temperature: 20 - 25 °C
• Protection rating: IP20
• Weight: 4.5 kg

How to use

Place the UPS on a stable, level surface in a well-ventilated indoor location within the specified operating temperature range. Connect the UPS input to a properly rated 230 V AC mains outlet. Plug critical devices into the two Type F AC outlets and connect the Micro-USB B port to a computer or monitoring device if monitoring or safe-shutdown features are required. Charge the internal battery by leaving the UPS connected to mains power for the recommended initial charging period before relying on battery backup.

Recommendations

For reliable backup time, calculate the combined load of connected equipment and avoid exceeding the 840 W output rating. Perform periodic battery health checks and replace the sealed lead acid battery according to manufacturer guidance. Keep the unit free from dust, ensure adequate ventilation around the housing, and install it indoors away from moisture and heat sources.
