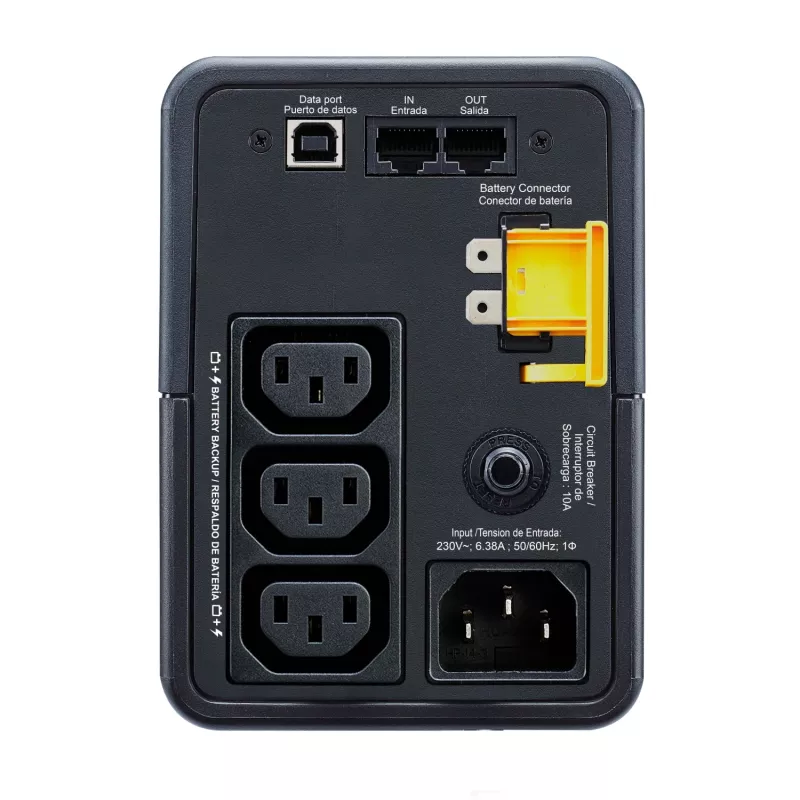

APC Back-UPS 500VA, 230V, AVR, IEC Sockets

500VA / 300W line-interactive UPS with a single power button that controls LED brightness, Quick Mute and Generator Setting. The BX Series includes 1 Gbps dataline protection for network data transmission and is suitable for home and office use. A USB communication cable is included and ready to use.

Advantages

The UPS provides line-interactive voltage regulation and battery backup for connected equipment, integrated 1 gigabit dataline protection for network lines, and simple one-button control for LED brightness, mute and generator modes. Its compact design and included USB cable make setup straightforward for home and office environments.

Key specifications

• Rated power: 300W
• Apparent power: 500VA
• Topology: Line-interactive
• Network protection: Dataline protection, 1 Gbps
• Controls: Single power button for LED brightness, Quick Mute and Generator Setting
• Connectivity: USB communication cable included

How to use

Connect the UPS to your equipment and to the mains, attach the USB communication cable to a computer if monitoring or configuration is required, and use the single power button to power on/off and to adjust LED brightness, enable Quick Mute or set the generator mode as needed.

Recommendations

Place the UPS in a well-ventilated, dry location away from direct heat sources. Regularly test the battery and ensure firmware or monitoring software is installed via the USB connection for optimal operation.
