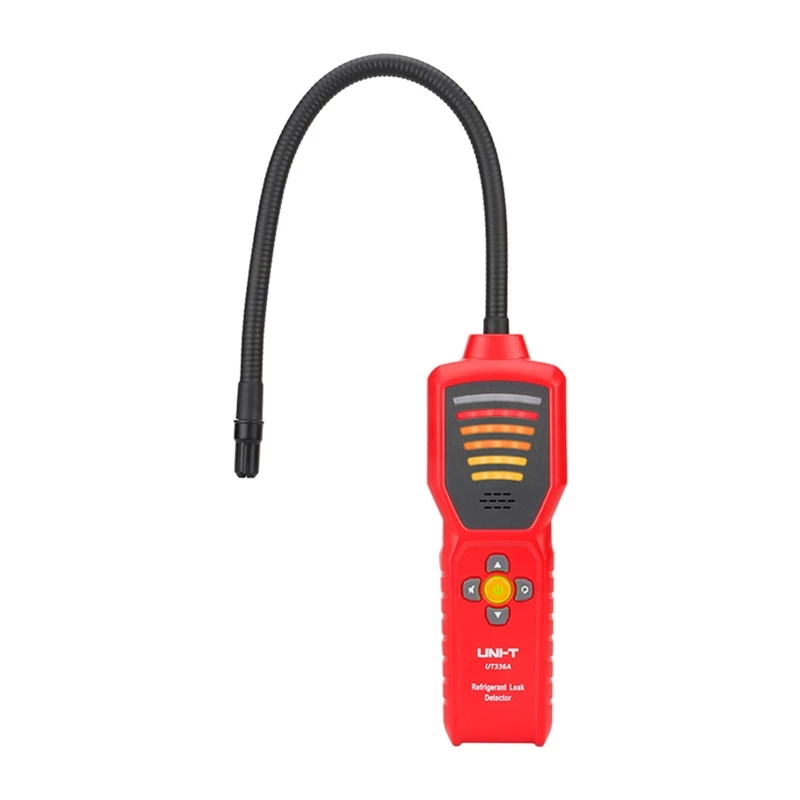

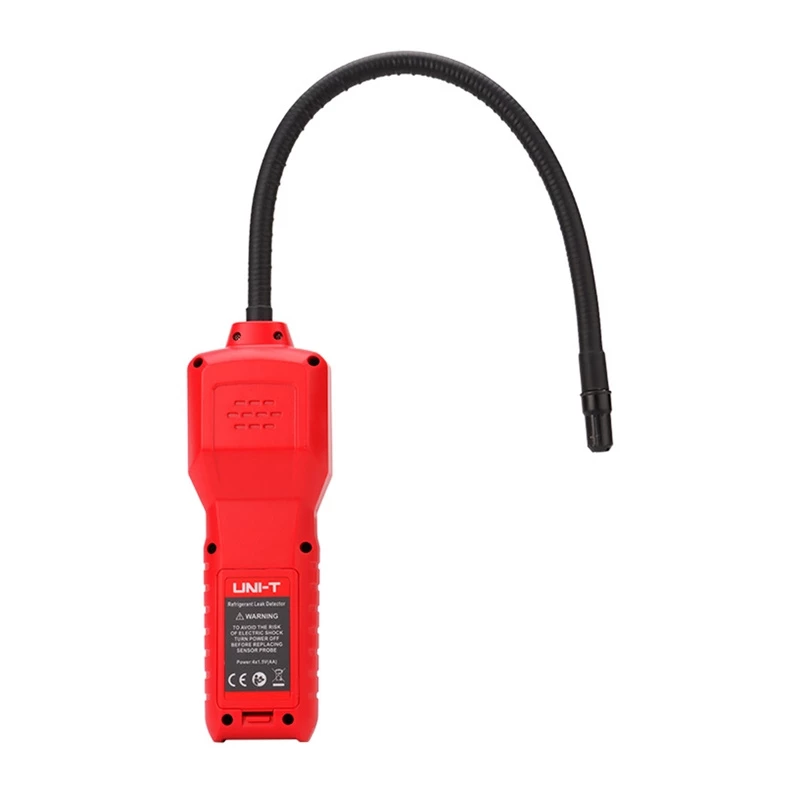

UNI-T UT336A Refrigerant Leak Detector

The UNI-T UT336A is a professional refrigerant leak detector designed for HVAC technicians and service professionals. It utilizes a heated diode sensor to detect a wide range of refrigerants including CFCs, HCFCs, HFCs, and HFOs such as R12, R22, R134a, R404a, R410a, and R1234yf. With a minimum leak rate sensitivity of less than 3g/year for R134a, it ensures precise and reliable leak detection.

Advantages

The UT336A features three sensitivity levels (High, Medium, Low) for versatile detection, an audible buzzer and visual LED bar graph for clear alarm indication, and automatic background compensation for stable operation. Its flexible 30 cm probe allows access to tight spaces, and the durable ABS plastic housing ensures longevity in demanding environments.

Suitable for

• HVAC system maintenance and repair
• Refrigeration system leak detection
• Automotive air conditioning service
• Industrial refrigerant leak checking

Key specifications

• Sensor Type: Heated Diode
• Detectable Refrigerants: CFCs, HCFCs, HFCs, HFOs (R12, R22, R134a, R404a, R410a, R1234yf)
• Minimum Leak Rate Sensitivity: <3g/year (0.1 oz/year) for R134a
• Response Time: Instantaneous
• Warm-up Time: <90 seconds
• Sensitivity Levels: 3 (High, Medium, Low)
• Alarm Indication: Audible Buzzer & Visual LED Bar Graph
• Automatic Calibration: Yes, automatic background compensation
• Power Source: 4 x 1.5V AA Alkaline Batteries
• Battery Life: Approx. 7 hours (continuous operation)

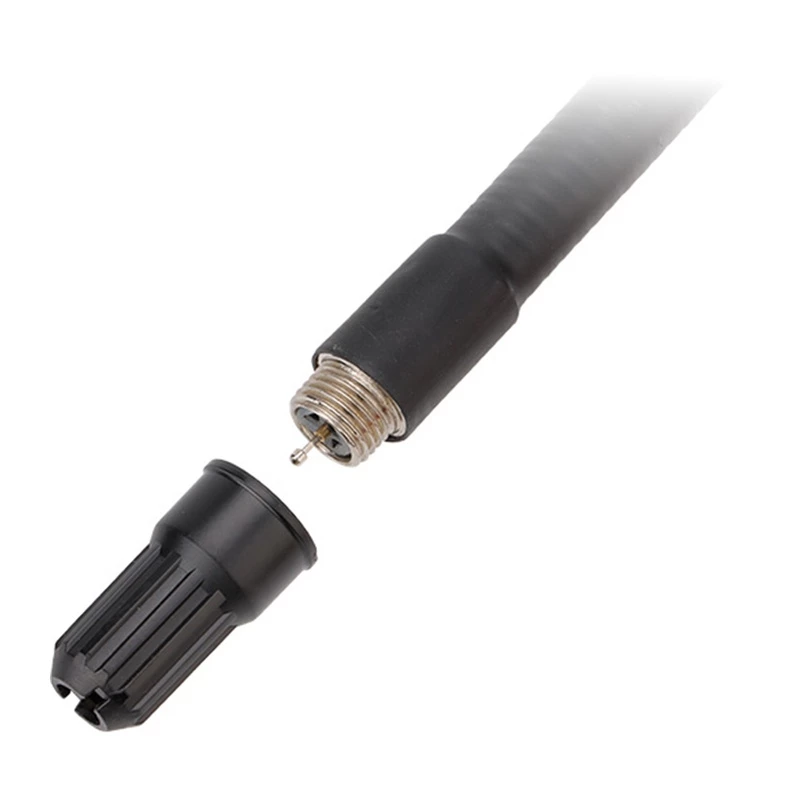

• Flexible Probe Length: 30 cm (11.8 inches)
• Operating Temperature Range: 0°C to 50°C (32°F to 122°F)
• Operating Humidity Range: <90% RH (non-condensing)
• Compliance Standards: SAE J1627, CE
• Low Battery Indicator: Yes
• Auto Power Off: Yes (after 10 minutes of inactivity)
• Sensor Lifespan: Approx. 300 hours
• Housing Material: Durable ABS Plastic

Recommendations

For optimal performance, use fresh alkaline batteries and allow the sensor to warm up for at least 90 seconds before use. Regularly check the sensor condition and replace as needed to maintain accuracy.
