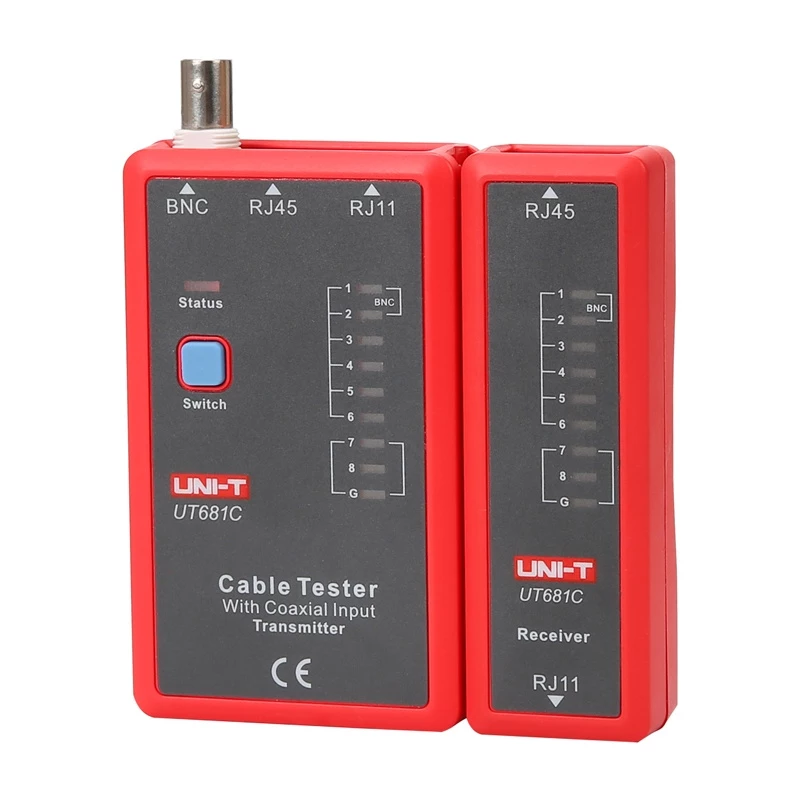

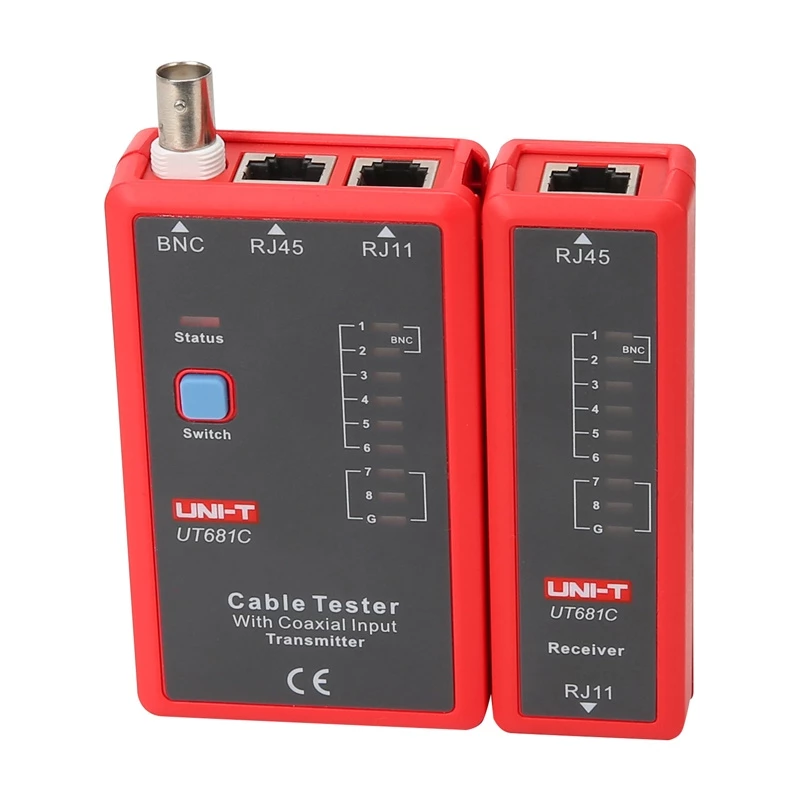

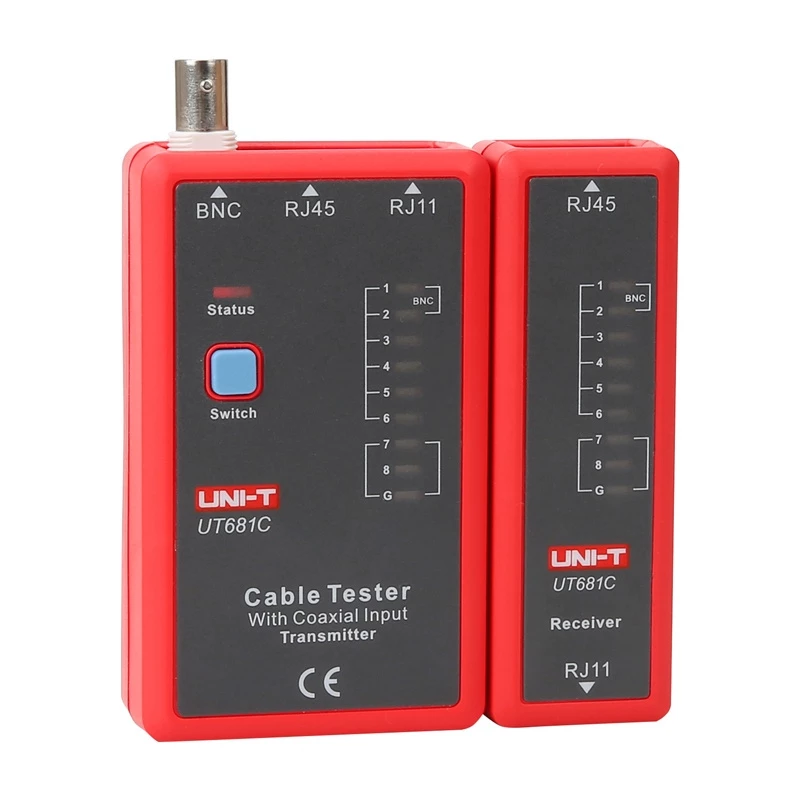

UNI-T UT681C network cable tester

UNI-T UT681C cable tester is a handy and reliable tool for checking the condition of Ethernet, telephone and BNC cables. Indispensable in the work of installers, technicians and service technicians, it allows you to instantly detect breaks, short circuits, misconnections or cable crossings. Thanks to its compact design, clear LED indicators and 9V battery power, the UT681C is suitable for both quick tests in the field and thorough network inspections in the office or server room.

Multifunctionality that saves time

The UT681C supports cables terminated with RJ45, RJ11 and BNC connectors (via the RJ45-BNC adapter included in the kit). It allows quick signal continuity checks and diagnosis of short circuits, open circuits and misconnections - including crossed pairs. The built-in LED array (LED1~LED8 and LED_G) allows you to easily assess the condition of individual conductors in the cable, in both fast and slow test modes.

Simple operation, maximum mobility

The device is operated with a single button, eliminating the need for complicated configuration. An automatic shut-off function after 10 minutes of inactivity saves the battery, and a low charge indicator warns when the power supply needs to be replaced. The tester is lightweight, handy and ready to use as soon as the battery is inserted.

Robust design for years of use

The UT681C is designed to operate in a wide range of temperatures and humidity, allowing it to be used both in the office and outdoors. CE and UKCA certifications attest to its high build quality and safe use.

Included

• UNI-T UT681C cable tester (transmitter and receiver)
• 9V battery
• RJ45-BNC adapter
• User's manual

How to use

Insert a 9V battery, connect the transmitter and receiver to the cable using the appropriate connector (RJ45, RJ11 or BNC with adapter) and press the single control button to start the test. Observe the LED sequence in the selected test mode (fast or slow) to identify continuity, open circuits, short circuits or crossed pairs. The tester will automatically switch off after 10 minutes of inactivity; replace the battery when the low-battery indicator activates.

Recommendations

Use the UT681C with cables disconnected from live equipment. For accurate diagnosis, test each cable end-to-end and, when necessary, repeat checks in both fast and slow modes. Store the tester within the specified temperature and humidity ranges to maintain performance.
