Ubiquiti UniFi WiFi BaseStation XG Access Point UWB-XG

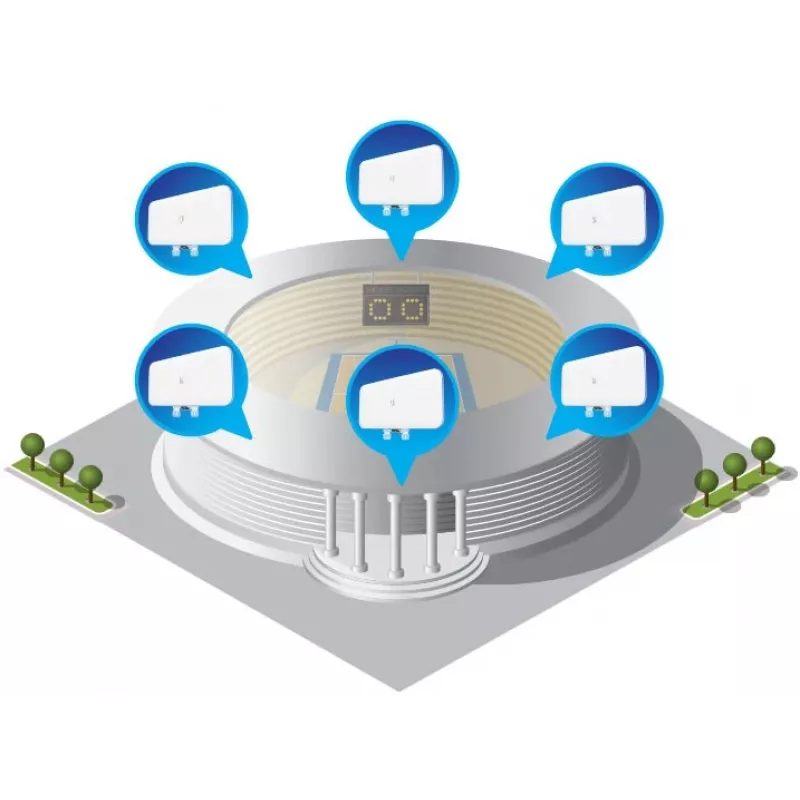

The UniFi WiFi BaseStation XG is a high-density, outdoor-ready access point built for stadiums, campuses, and other demanding environments. Its 8x8 MU-MIMO on 5 GHz and 4x4 MU-MIMO on 2.4 GHz deliver combined throughput up to 2.5 Gbps, while support for 1500+ concurrent clients ensures smooth connectivity for large crowds.

Highlights

• Dual-band 802.11ac Wave 2 with 8x8 MU-MIMO on 5 GHz
• 5 Gigabit Ethernet port with 802.3bt PoE++ power
• IP67 weatherproof enclosure for outdoor installation
• Managed via UniFi Network Application

In daily use

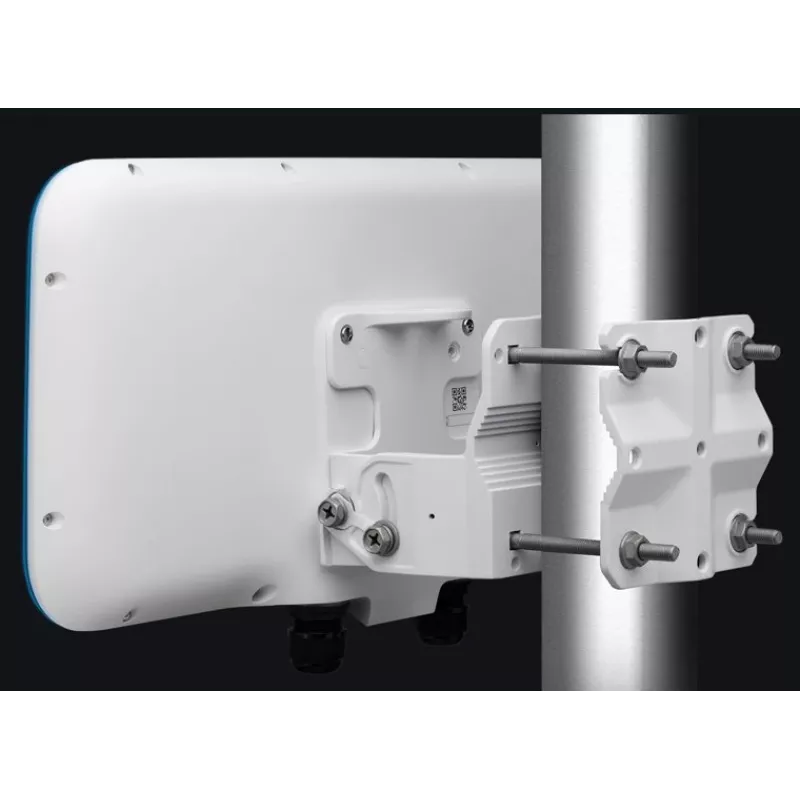

Mount the BaseStation XG on a wall or pole and power it with a PoE++ switch. The UniFi controller provides centralized management, allowing you to monitor performance, configure VLANs, and apply QoS policies. Its high antenna gain (4 dBi on 2.4 GHz, 8 dBi on 5 GHz) extends coverage, while the quad-core processor handles heavy traffic without bottlenecks.

Full specifications

• Wi-Fi Standard: 802.11ac Wave 2
• Frequency Bands: Dual-Band (2.4 GHz / 5 GHz)
• MIMO Configuration: 4x4 (2.4 GHz), 8x8 (5 GHz)
• Max Throughput: 800 Mbps (2.4 GHz), 1733 Mbps (5 GHz)
• Antenna Gain: 4 dBi (2.4 GHz), 8 dBi (5 GHz)
• Ethernet Ports: 1x 5 Gigabit Ethernet (RJ45)
• PoE Standard: 802.3bt PoE++
• Max Power Consumption: 31W
• Max Concurrent Clients: 1500+
• Weather Resistance: IP67
• Processor: Quad-Core 1.7 GHz
• Memory: 512 MB DDR3
• Management Interface: UniFi Network Application
• Mounting Options: Wall, Pole
• Operating Temperature: -10 to 70° C

Final note

For large-scale deployments, the BaseStation XG offers the performance and durability required to keep thousands of users connected.
