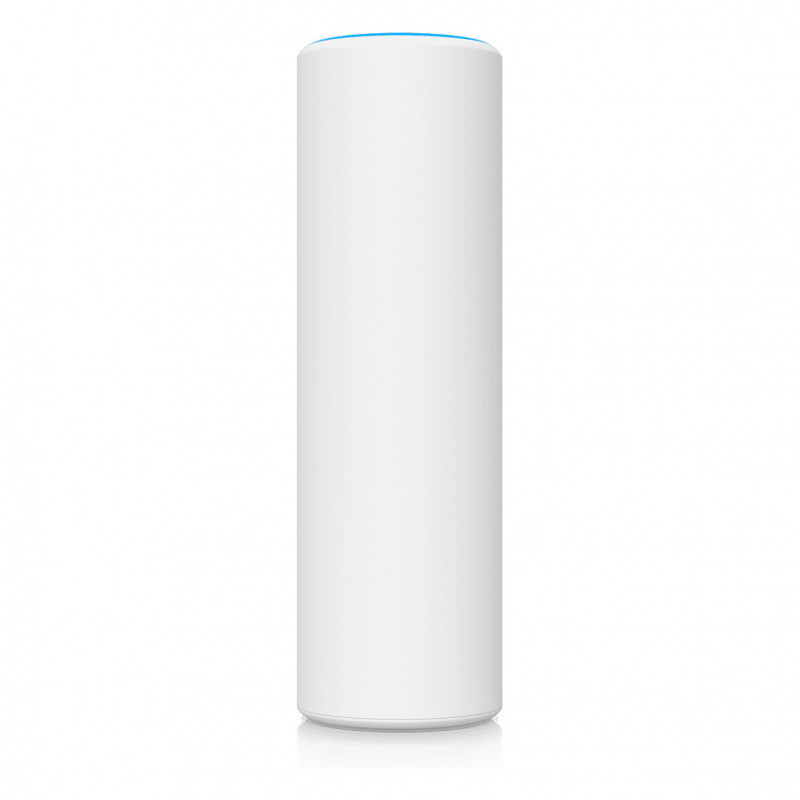

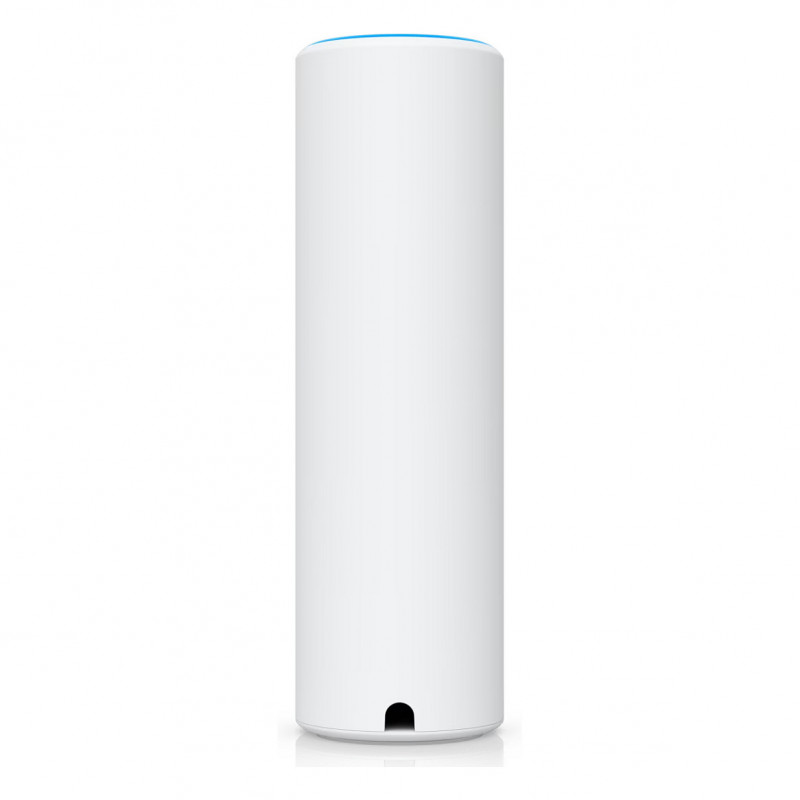

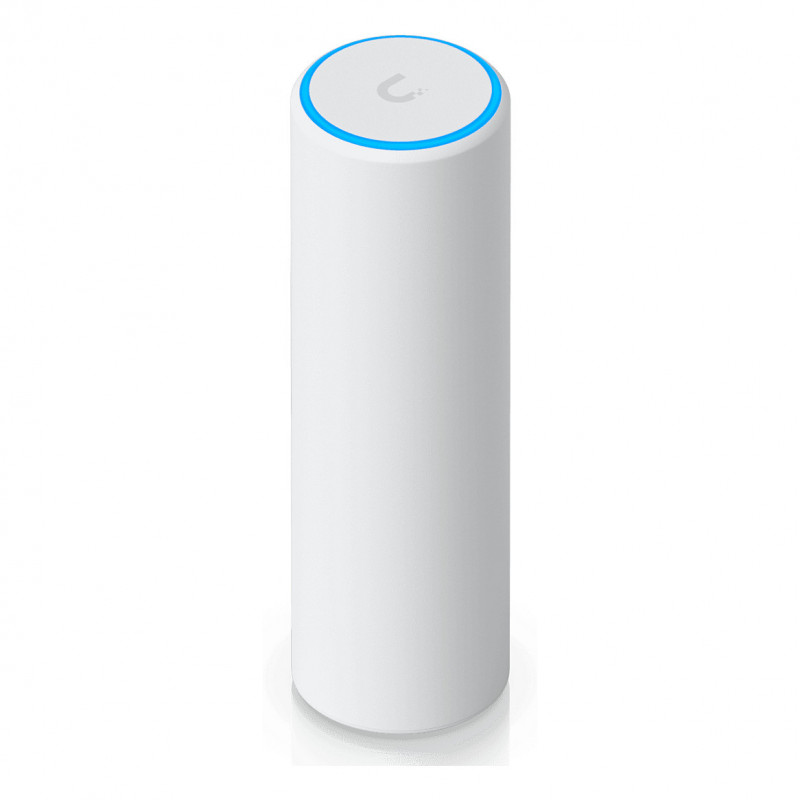

Ubiquiti U7 Mesh 5000 Mbit/s Wi-Fi 7 Wireless Access Point, PoE, White

The Ubiquiti U7 Mesh is a wireless access point designed for reliable Wi-Fi connectivity in both indoor and outdoor environments. It supports Wi-Fi 7 and features a maximum data transfer rate of 5000 Mbit/s, with 4 spatial streams and multi-user MIMO for efficient performance.

Key features

• Wi-Fi 7 support
• 2.4 GHz and 5 GHz bands
• Maximum data transfer rate: 5000 Mbit/s
• 4 spatial streams and multi-user MIMO
• Supports up to 200 simultaneous devices
• Coverage area up to 140 m²
• Power over Ethernet (PoE) support
• Fast roaming, wireless meshing, and band steering
• PPSK security algorithm
• Internal antenna with max gain 10 dBi
• IPX6 rating

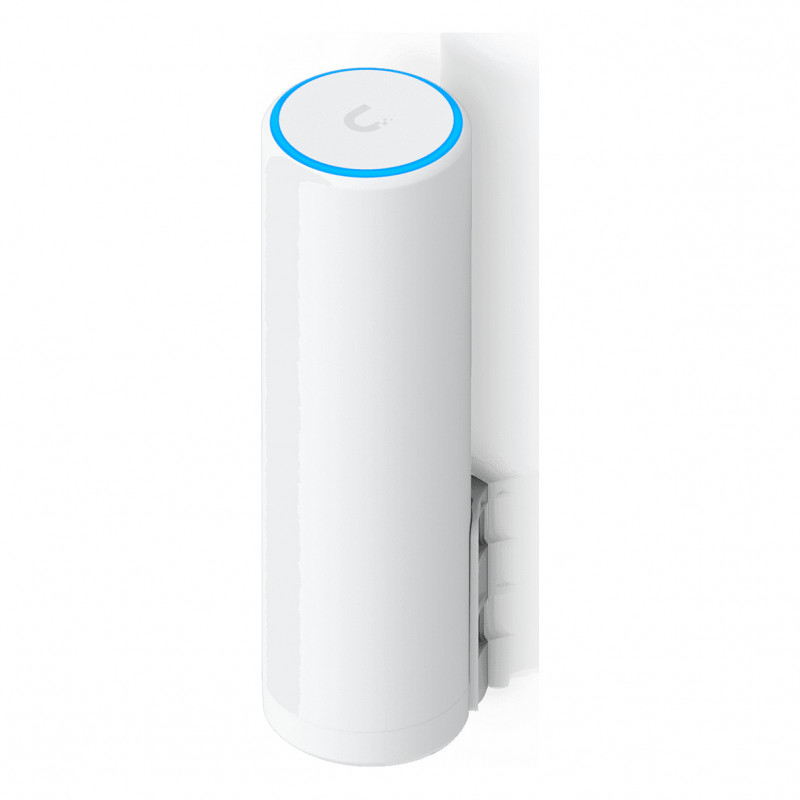

• Pole, table, or wall mounting

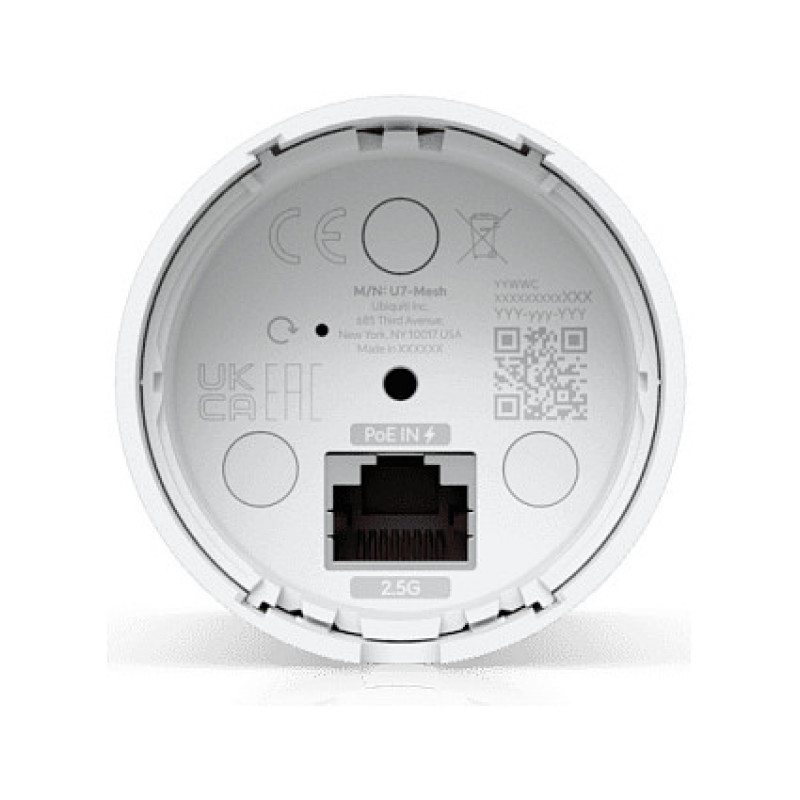

• Reset button and status LED

Specifications

• Brand: Ubiquiti
• Product colour: White
• Wi-Fi: Yes
• Wi-Fi standards: Wi-Fi 7
• Material: Polycarbonate
• Maximum data transfer rate: 5000 Mbit/s
• Maximum data transfer rate (2.4 GHz): 688 Mbit/s
• Maximum data transfer rate (5 GHz): 4300 Mbit/s
• Ethernet LAN data rates: 2500 Mbit/s
• Number of simultaneous devices (max): 200
• Network standards: IEEE 802.11v, IEEE 802.11r, IEEE 802.11k
• Coverage area: 140 m²
• MIMO type: Multi User MIMO
• Spatial streams: 4
• Supported security algorithms: PPSK

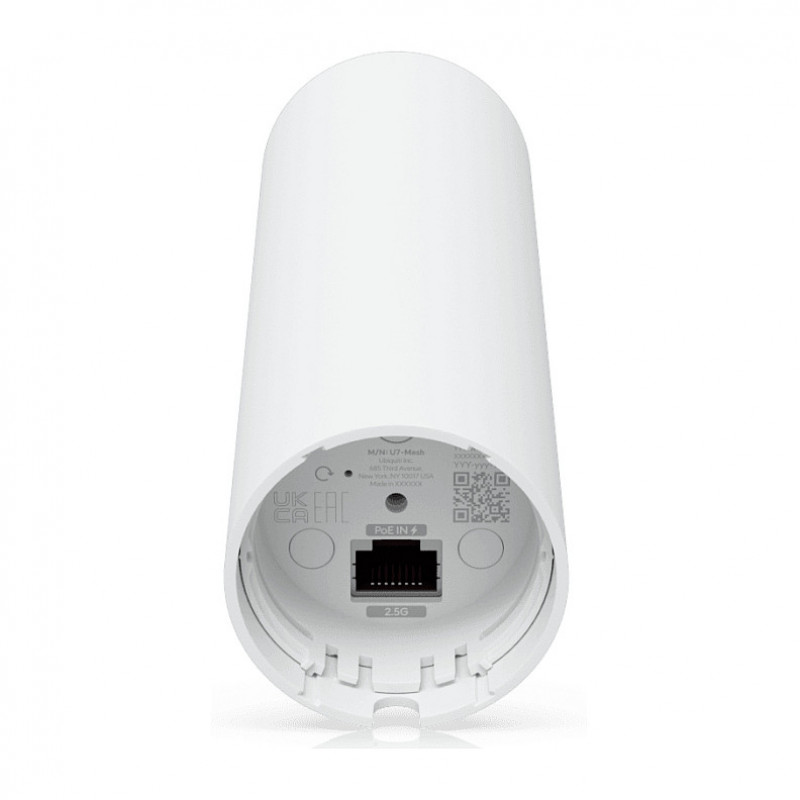

• Number of Ethernet LAN ports (RJ-45): 1
• DC voltage range: 42.5 - 57 V
• Power consumption (max): 13 W
• Placement: Pole, table, wall
• International Protection (IP) code: IPX6
• LED indicators: Status
• Antenna type: Internal
• Antenna gain level (max): 10 dBi
• Certification: NDAA, CE, FCC, IC
• Width: 48.5 mm
• Depth: 48.5 mm
• Height: 159.5 mm
• Weight: 313 g
• Quantity per pack: 1 piece
• Operating relative humidity: 5 - 95%
• Operating temperature: -30 - 60 °C
