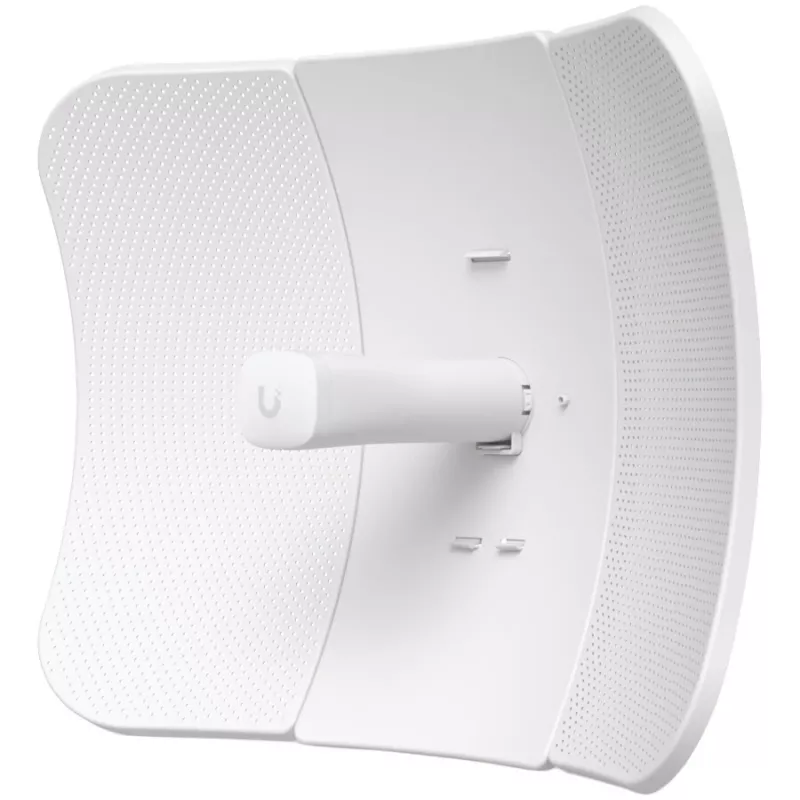

Ubiquiti LiteBeam LBE-5AC-LR-5 UISP airMAX AC Long-Range 5 GHz 802.11ac Outdoor Wireless Bridge (26 dBi, 450+ Mbps, 25+ km)

Connecting two sites across miles of open terrain has always meant expensive fiber or unreliable consumer Wi-Fi. Ubiquiti's airMAX LiteBeam 5AC LR eliminates that trade-off with a compact, high-gain radio that delivers carrier-grade links up to 25 kilometers. As part of the UISP platform, it pairs perfectly with other Ubiquiti equipment for seamless management and exceptional throughput.

Who is it for

Designed for network integrators, WISPs, and enterprises needing a cost-effective point-to-point or point-to-multipoint bridge, this outdoor CPE is also ideal for connecting remote offices, farms, or campus buildings. Its painless single-cable power and data connection makes deployment straightforward even for limited infrastructure.

Main features

• High-gain 26 dBi directional antenna for extreme range and focused signal
• 5 GHz 802.11ac technology delivers up to 450+ Mbps real-world throughput
• Long-range link capability of 25+ km with clear line of sight
• Outdoor UV-stabilized housing built to withstand harsh weather, rated for wind up to 200 km/h
• 24V passive PoE simplifies installation with a single cable for data and power
• Integrated airOS management via web interface for easy setup and monitoring
• Compact, lightweight design with included pole-mount kit

Specifications

• Wireless Standard: IEEE 802.11ac (airMAX AC)
• Frequency Band: 5 GHz
• Antenna Gain: 26 dBi
• Max Throughput: 450+ Mbps
• Networking Interface: 1x 10/100/1000 Ethernet port
• Power Method: 24V Passive PoE
• Max Power Consumption: 7W
• Processor: MIPS 74Kc
• Memory: 64 MB DDR2
• Operating Temperature: -40°C to 70°C
• Enclosure Material: Outdoor UV Stabilized Plastic
• Mounting: Pole-Mount Kit Included
• Management: airOS, Web-based

Tips

For best results, align the antenna carefully with the remote peer and maintain a clear Fresnel zone. The included pole-mount kit provides solid positioning. Use the built-in airOS tools to fine-tune the link and monitor signal strength. This device supports AP, Station, PTP, and PTMP modes, giving you flexible deployment options.
