InLine Fiber Optical Simplex Cable FTTH LC/APC 8° to LC/APC 8° 9/125µm OS2 2 m

InLine Fiber Optical Simplex Cable FTTH LC/APC 8° to LC/APC 8° 9/125µm OS2 2 m
InLine Fiber Optical Simplex Cable FTTH LC/APC 8° to LC/APC 8° 9/125µm OS2 2 m
InLine Fiber Optical Simplex Cable FTTH LC/APC 8° to LC/APC 8° 9/125µm OS2 2 m
InLine Fiber Optical Simplex Cable FTTH LC/APC 8° to LC/APC 8° 9/125µm OS2 2 m
InLine Fiber Optical Simplex Cable FTTH LC/APC 8° to LC/APC 8° 9/125µm OS2 2 m
InLine Fiber Optical Simplex Cable FTTH LC/APC 8° to LC/APC 8° 9/125µm OS2 2 m
R188

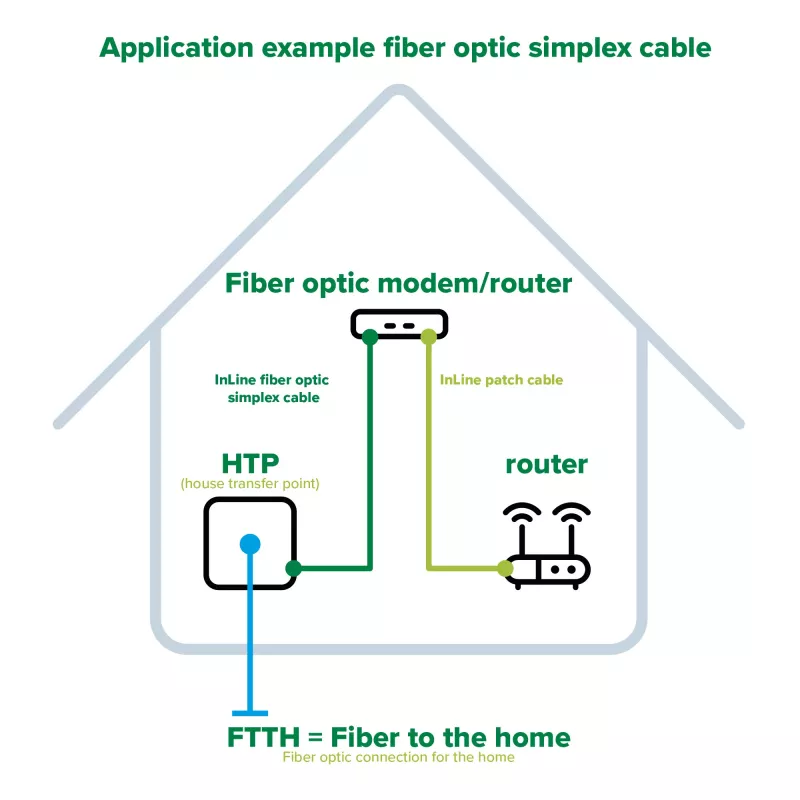

Telecommunications companies such as Vodafone, Deutsche Glasfaser and Telekom are increasingly enabling fibre connections for private households in Germany. Fibre to the home (FTTH) cables from InLine connect the house transfer point with the fibre optic modem and ensure a reliable fibre optic conne... Read More
Stock 192 Code 1429522 Brand INLINE Model 88202 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
Telecommunications companies such as Vodafone, Deutsche Glasfaser and Telekom are increasingly enabling fibre connections for private households in Germany. Fibre to the home (FTTH) cables from InLine connect the house transfer point with the fibre optic modem and ensure a reliable fibre optic connection in your home.
Unfortunately, pre-installed cables from providers are often of poor quality and sometimes only 1.6mm thick. If the cable breaks, even the fastest fibre optic connection will not help. InLine FTTH cables are 3mm thick and have a particularly stable structure. Additional reinforcement in the form of a stainless steel spiral tube guarantees a long-term, reliable fibre optic connection in private homes. The neutral sheath colour white is suitable for inconspicuous installation in visible living areas. Different lengths up to 50m allow you to remain flexible, even if the position of the modem changes.

InLine Fiber Optical Simplex Cable, FTTH, LC/APC8° to LC/APC8° 9/125µm OS2 2m. Cable length: 2 m, Fibre optic type: OS2, Connector 1: LC, Connector 2: LC, Core diameter: 9 µm

How to use

Route the InLine FTTH LC/APC simplex cable between the fibre outlet and the optical device, avoiding sharp bends and tensile stress; the recommended minimum bend radius is the manufacturer's specified value for similar armoured 3 mm cables (avoid tight loops). Ensure connectors are clean before mating and remove protective caps only when ready to connect. Insert LC connectors into the corresponding LC/APC ports with the keyed latch until it clicks, observing connector orientation for APC-angled interfaces. After installation, verify the link with an optical power meter or use the supplied test report to confirm performance.

Recommendations

Store and install the cable in dry conditions and protect connector end faces from dust and dirt; clean end faces with appropriate fibre cleaning tools before each connection. Avoid bending the cable below its minimum bend radius and do not apply excessive tensile force. Use this 2 m armoured cable for short indoor FTTH connections where a robust, low-loss LC/APC link is required.

Key Highlights
  • Halogen free outer Jacket
  • Armoured Cable OD: 3.0mm±0.2mm
  • flexible metal tubing one core
  • Fiber: OS2 9/125µm - single Mode
  • I-VH-2E,G.652.D
  • APC 8° Polished
  • IL<0.30dB,RL>60dB
  • IL(typical)<0.20dB
  • with test report
  • Conform IEC 610304-2 IEC60332-3-1 IEC60754-2 IEC 61754-20
  • Operating Temperature: -40 to +85°C
  • Storage Temperature: -40 to +85°C
  • OS2
  • 2 m
  • LC Male
  • LC Male
  • Connector polish type: APC
  • Single-mode
  • White
Specifications
Cable diameter
3 mm
Cable length
2 m
Cladding diameter
125 µm
Connector 1
LC
Connector 1 gender
Male
Connector 2
LC
Connector 2 gender
Male
Connector polish type
APC
Core diameter
9 µm
Dimensions (WxDxH)
170 x 2000 x 10 mm
Fiber mode structure
Single-mode
Fibre optic type
OS2
Full duplex
No
Operating temperature (T-T)
-40 - 85 °C
Package depth
170 mm
Package height
10 mm
Package volume
300 cm³
Package weight
38 g
Package width
170 mm
Product colour
White
Storage temperature (T-T)
-40 - 85 °C
Test protocol included
Yes
Weight
31 g

Leaflet

Open Leaflet
