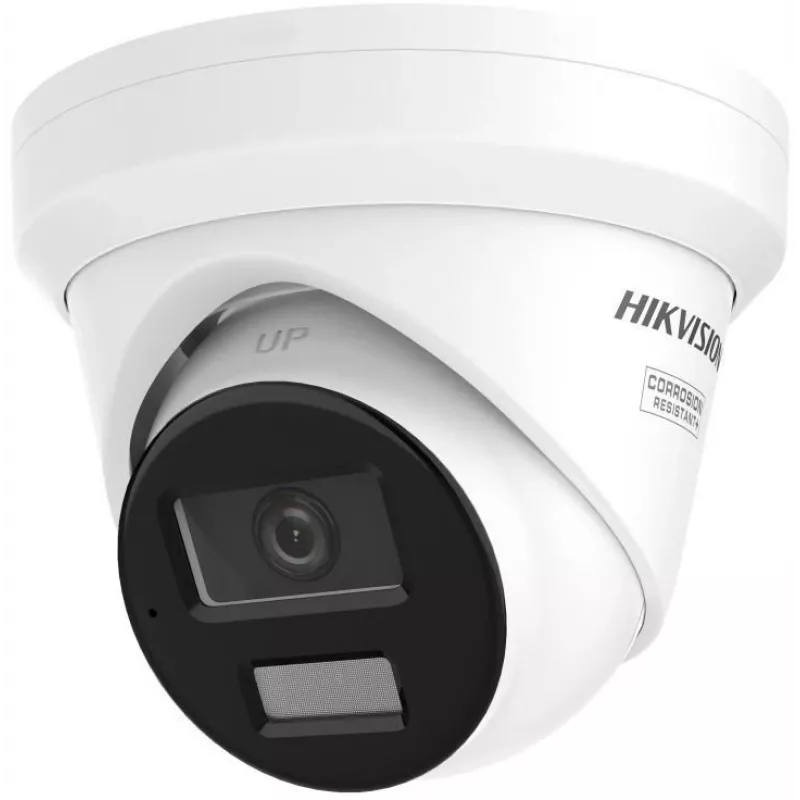

Turret IP security camera Hikvision Pro Series DS-2CD2343G2-LIZ2UY (AcuSense) 2688×1520, 2.8/4 mm, outdoor, ceiling/wall mount

Hikvision Pro Series turret IP camera DS-2CD2343G2-LIZ2UY with AcuSense analytics delivers 4 MP (2688×1520) resolution from a 1/3" CMOS sensor and an integrated vari-focal 2.8/4 mm lens. Designed for outdoor ceiling or wall installation, the camera provides wired Ethernet connectivity, up to 30 fps, a full 360° pan and 0–75° tilt range and a robust IP67-rated housing. The model combines hybrid lighting (IR and white light) and improved audio capture to support reliable surveillance in mixed lighting and varied environmental conditions.

Advantages

The camera uses AcuSense deep-learning classification to reduce false alarms by distinguishing people and vehicles from other motion sources. Smart Hybrid Light ensures usable color images at night or in low light while IR extends visibility; selectable lighting modes allow a balance between stealth and full-color recording. The anti-corrosion NEMA 4X design and IP67 protection provide durability outdoors, and integrated wired Ethernet ensures stable, low-latency video transmission. Compact turret styling supports flexible ceiling or wall mounting and a dual-color (black/white) finish adapts to different installation environments.

Suitable for

• Perimeter and outdoor area surveillance of residential and commercial properties
• Parking lots, driveways and access roads where person and vehicle detection is required
• Entryways and building façades requiring ceiling or wall-mounted cameras
• Sites needing reliable wired connectivity and weather-resistant hardware

Key specifications

• Image sensor: 1/3" CMOS, 4 MP (2688×1520)
• Lenses: selectable vari-focal 2.8 mm / 4 mm
• Frame rate: up to 30 fps
• Pan/tilt range: 360° pan, 0–75° tilt
• Night vision: Smart Hybrid Light with IR and white-light support, up to 30 m
• Analytics: AcuSense person and vehicle classification (deep learning)
• Mounting: ceiling or wall turret design
• Ingress protection: IP67; anti-corrosion NEMA 4X design
• Connectivity: wired Ethernet LAN
• Weight: approximately 0.515 kg
• Colours: black and white options

How to use

Mount the turret camera on a suitable ceiling or wall surface using the supplied mounting hardware and ensure a stable wired Ethernet connection to the network. Use the camera’s web interface or compatible NVR/software to configure IP settings, frame rate (up to 30 fps), exposure and hybrid lighting mode for day/night operation. Calibrate the vari-focal lens to the desired field of view (2.8 mm for wider coverage, 4 mm for narrower long-range monitoring). Enable AcuSense analytics and set detection zones and sensitivity levels to reduce false alarms from non-relevant motion.

Recommendations

For optimal detection and recognition performance, position the camera to minimize backlighting and place it at a height that aligns with intended detection distances (note: with the 2.8 mm lens approximate detection/observation/recognition distances are: detect ~66.6 m, observe ~26.4 m, recognize ~13.3 m). Use hybrid white-light mode where color detail at night is important; select IR-only when low-visibility illumination is preferred. Regularly check seals and cable glands to preserve IP67 and anti-corrosion protection.
