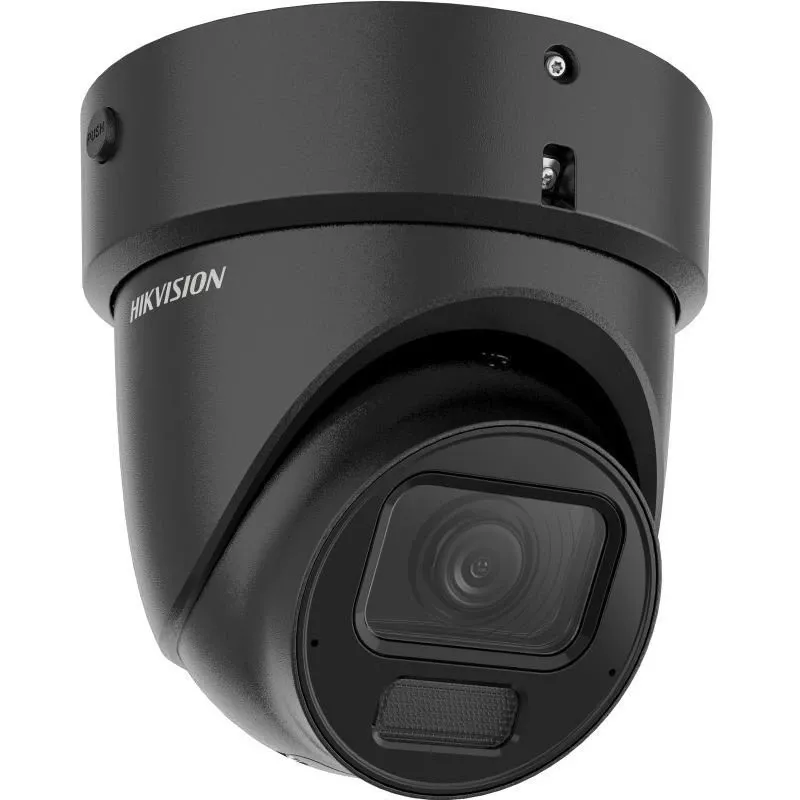

Turret IP security camera Hikvision Pro DS-2CD2H66G2H-IZSY (2.8–12 mm) — Outdoor, 3200×1800, 1/1.8 inch CMOS, 30 fps

Hikvision Pro DS-2CD2H66G2H-IZSY is a turret-style IP security camera designed for outdoor ceiling or wall mounting. It uses a 1/1.8" CMOS sensor to deliver up to 3200×1800 resolution at 30 fps and features a 2.8–12 mm motorized/manual varifocal lens that provides a horizontal field of view from approximately 112.3° to 41.2°. The camera supports wired Ethernet connectivity, robust environmental protection and advanced imaging technologies for reliable perimeter and site surveillance in a range of weather conditions.

Advantages

The motorized varifocal lens simplifies installation and on-site adjustment, allowing installers to change focal length and focus remotely or manually. Advanced imaging features include wide dynamic range (WDR) to preserve detail in scenes with strong backlight, efficient H.265+ compression to reduce storage and bandwidth, and deep-learning based person and vehicle classification to decrease false alarms. The housing is corrosion-resistant and rated IP67 and IK10 for dust, water and vandal protection, supporting long-term outdoor operation.

Suitable for

• Perimeter monitoring of business premises and industrial sites
• Parking lot surveillance and vehicle entry/exit control
• Exterior building façades, entrances and access points
• Warehouses and logistics yards requiring long-range detection

Key specifications

• Image sensor: 1/1.8" CMOS
• Maximum resolution: 3200 × 1800 pixels (6 MP)
• Frame rate: up to 30 fps
• Lens: 2.8–12 mm motorized/manual varifocal (horizontal angle ~112.3°–41.2°)
• Compression: H.265 / H.265+ supported for efficient storage
• Wide dynamic range: 120 dB WDR
• Night capability: IR illumination for low-light/near-night monitoring (specified range up to ~40 m depending on scene)
• Connectivity: Wired Ethernet LAN
• Mounting: ceiling or wall mountable turret design with 360° rotation support
• Environmental protection: dust- and water-resistant (IP67); vandal-resistant (IK10); corrosion-resistant housing (NEMA 4X design)
• Color: black
• Weight: approximately 1.24 kg

How to use

Mount the camera on a stable ceiling or wall surface using appropriate anchors and follow local wiring codes for PoE or separate power and Ethernet cabling. After physical installation, connect the camera to your network and use the Hikvision configuration tools or compatible VMS to set resolution, frame rate and compression preferences. Adjust the varifocal lens to achieve the desired field of view and fine-tune focus, then enable detection features such as person/vehicle classification and motion detection to match the monitored scene. Configure retention, recording schedules and alert settings on the recorder or cloud service.

Recommendations

For reliable long-term performance, mount the camera under an overhang when possible to reduce direct exposure to precipitation, and use a PoE switch or injector that meets power requirements. Regularly verify lens cleanliness and firmware updates from the manufacturer. When configuring analytics, tailor sensitivity and classification rules to the site to reduce false alarms and ensure accurate detection of persons and vehicles.
