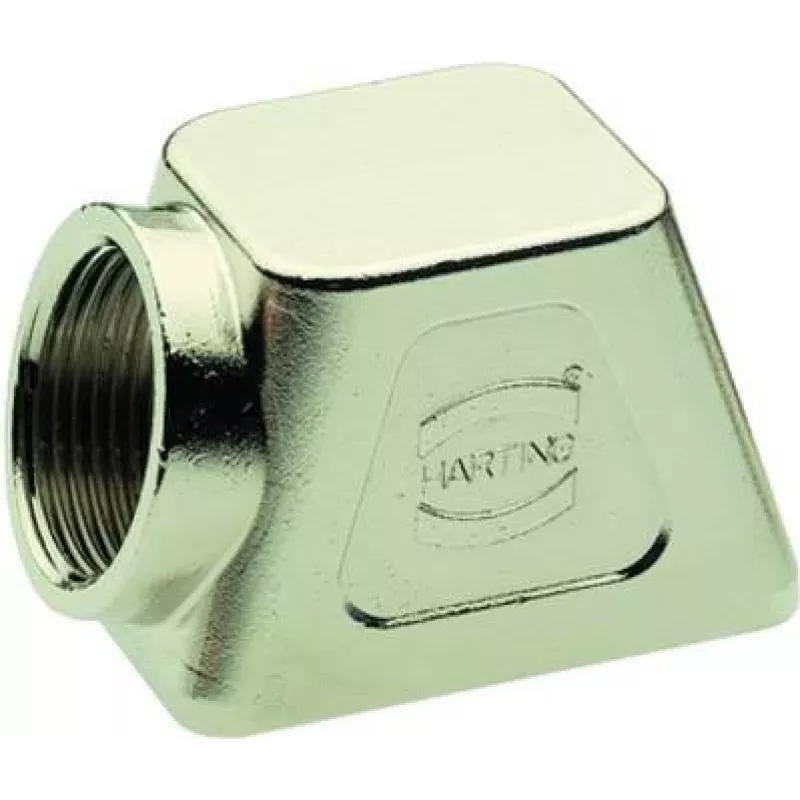

Tülle housing Harting 19140010501 side cable outlet M25

Tülle housing Harting 19140010501 side cable outlet M25 provides a sealed side entry point for cable routing in electrical enclosures and equipment. Manufactured by Harting, this side cable outlet is intended for use with M25 cable glands to create an organized and protected cable entry that supports strain relief and reduces ingress of dust and moisture. The compact design suits industrial switchgear, control cabinets and machinery where a secure side-mounted cable path is required.

Advantages

The side cable outlet allows installation of M25 cable glands while maintaining a tight gasketed interface between the cable and enclosure. It simplifies cable management by offering a defined entry location and reliable mechanical support for cables. The housing is designed for durability in industrial settings and helps maintain enclosure ingress protection levels when fitted with compatible glands and seals.

Suitable for

• Routing power and signal cables into control cabinets and junction boxes
• Side entry for industrial machinery and automation equipment
• Retrofit or new installations requiring M25 cable gland mounting
• Environments needing improved strain relief and basic environmental protection

Key specifications

• Side cable outlet compatible with M25 cable glands
• Sealed housing for side entry to enclosures
• Compact form factor suitable for panel or enclosure walls
• Designed for mechanical strain relief when used with proper glands and clamps
• Intended for industrial and installation applications

How to use

Cut or prepare an appropriately sized opening in the enclosure side wall, following the housing dimensions and mounting instructions provided by the equipment designer. Insert the side cable outlet into the opening and secure it according to the enclosure and housing fixing method. Fit an M25 cable gland into the housing, pass the cable through the gland, and tighten the gland to achieve strain relief and sealing. Verify that sealing elements sit correctly and that the assembled entry maintains the expected level of protection for the application.

Recommendations

Use compatible M25 cable glands and seals rated for the required ingress protection and temperature range. Ensure cable diameter matches the gland specification and that mounting surfaces are clean and flat. For applications with high vibration or critical safety requirements, combine the housing with approved strain-relief accessories and follow local installation standards.
