Tracer 47776 DT126 Rectifier 12V 6A Diagnosis & Maintenance

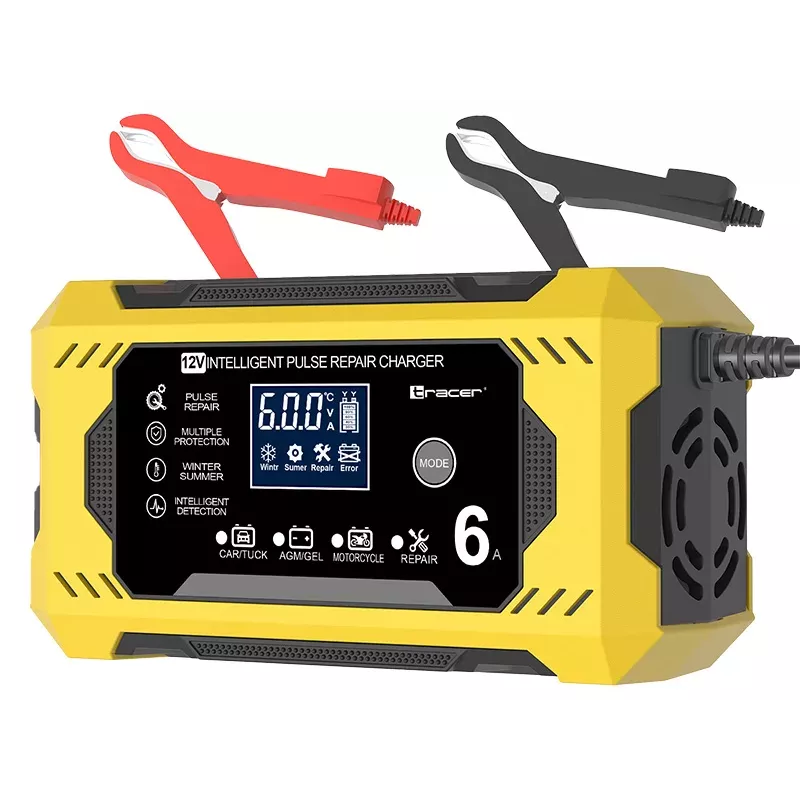

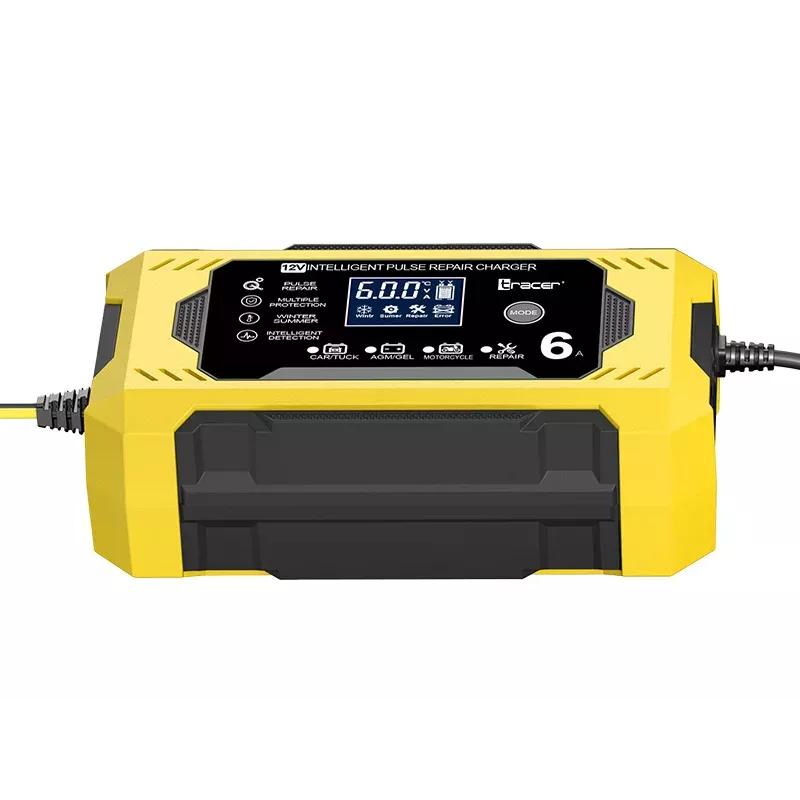

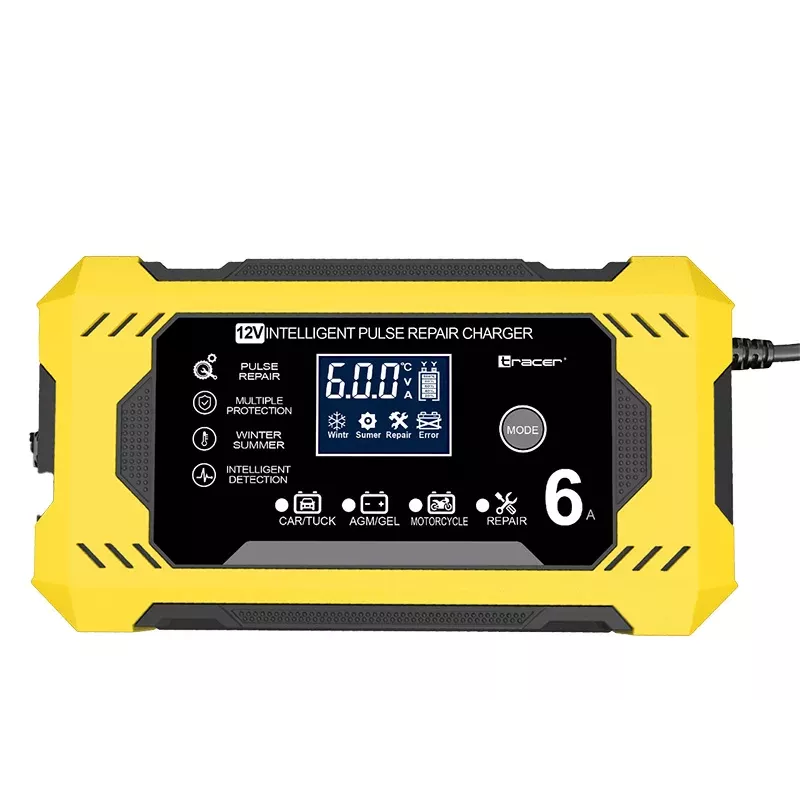

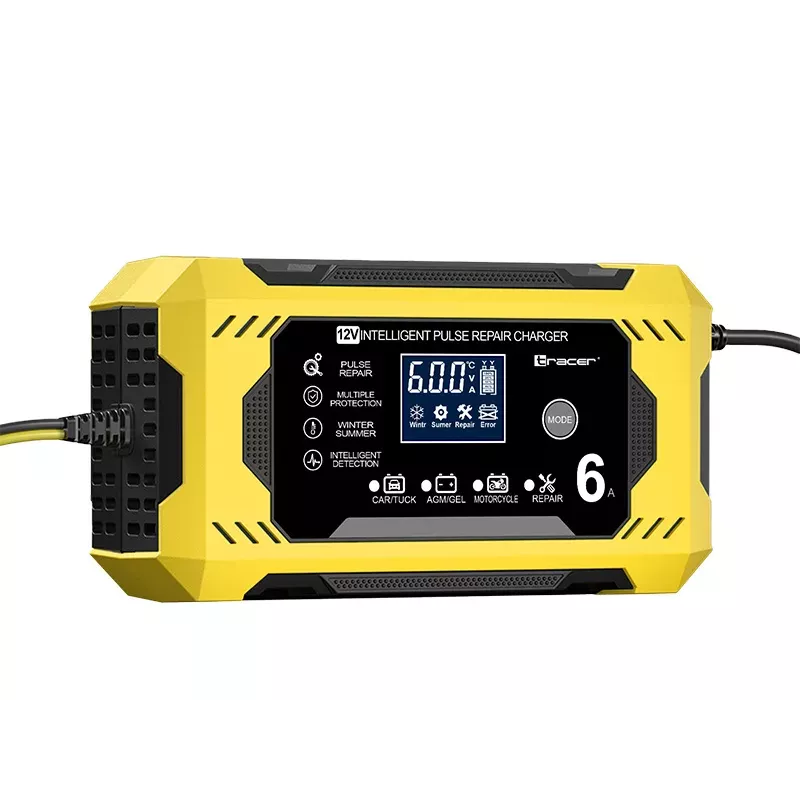

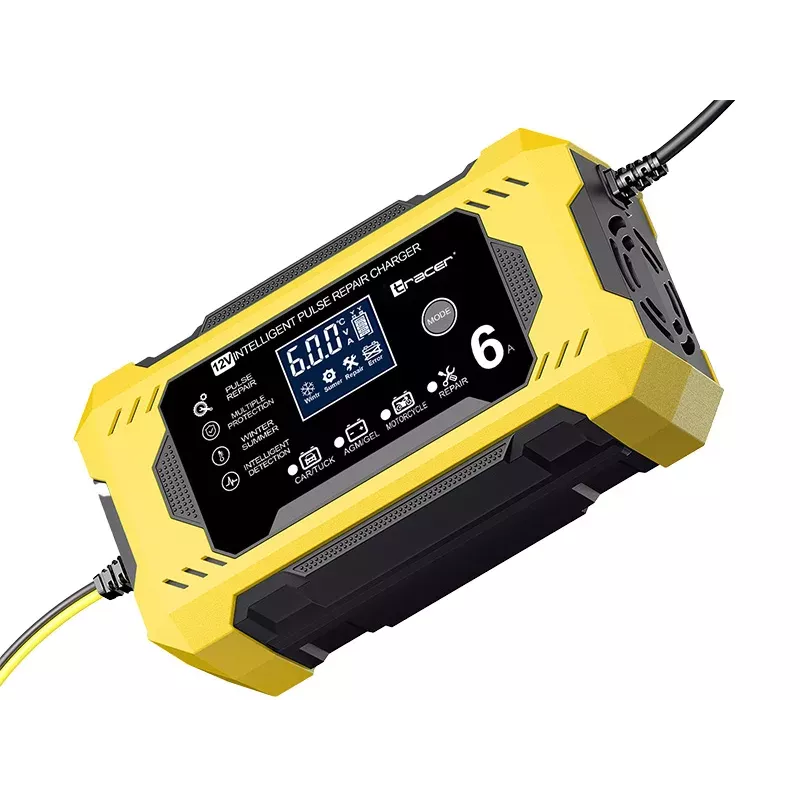

The Tracer 47776 DT126 is a professional 12V 6A rectifier and battery charger designed for diagnosis and maintenance of lead-acid and lithium batteries. With multi-stage charging, spark-proof protection, and IP65 rating, it ensures safe and efficient charging for a wide range of battery capacities.

Advantages

Automatic multi-stage charging optimizes battery health and extends lifespan. Built-in protections against overcharge, short circuit, reverse polarity, and overheating provide peace of mind. The IP65 housing makes it suitable for workshop and outdoor use.

Suitable for

• Charging and maintaining 12V lead-acid (WET, MF, CA/CA, EFB), GEL, and AGM batteries
• Battery capacities from 4 to 120 Ah
• Automotive, marine, and industrial applications

Key specifications

• Input: 220-240V AC, 50/60 Hz
• Output: 12V DC, 6A max
• Battery types: Lead-Acid (WET, MF, CA/CA, EFB), GEL, AGM
• Capacity range: 4-120 Ah
• Charging stages: Multi-stage automatic
• Protection: Overcharge, short circuit, reverse polarity, overheat, spark-proof
• Display: LED indicators
• Efficiency: >85%
• Cooling: Natural convection
• Operating temperature: -10°C to 40°C
• Housing: ABS plastic, IP65
• Output connectors: Crocodile clips

Recommendations

For best results, connect the charger to the battery before plugging into AC mains. Ensure proper ventilation during use. Suitable for both professional workshops and home garages.
