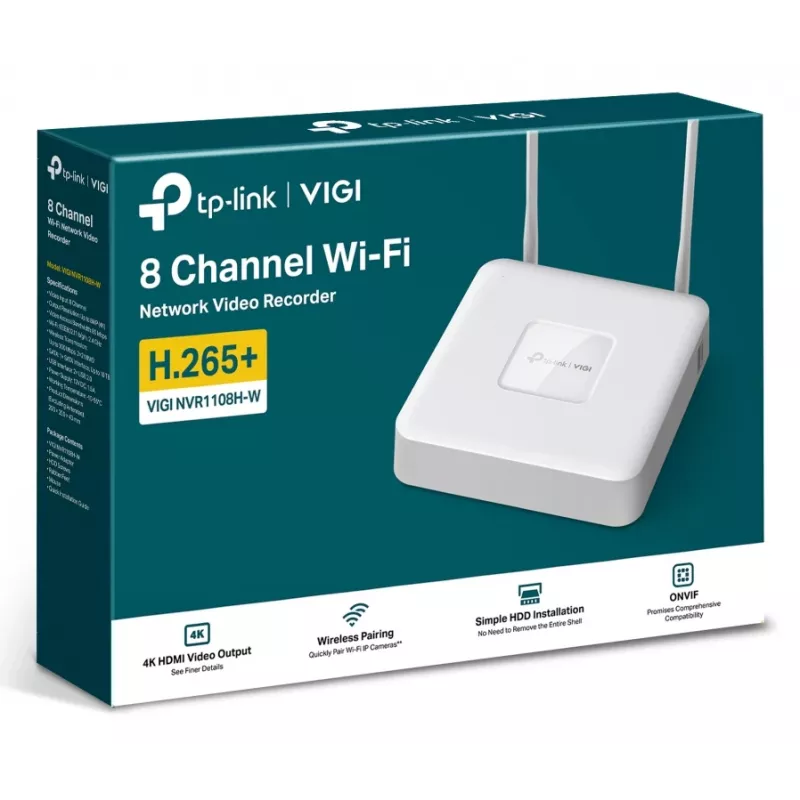

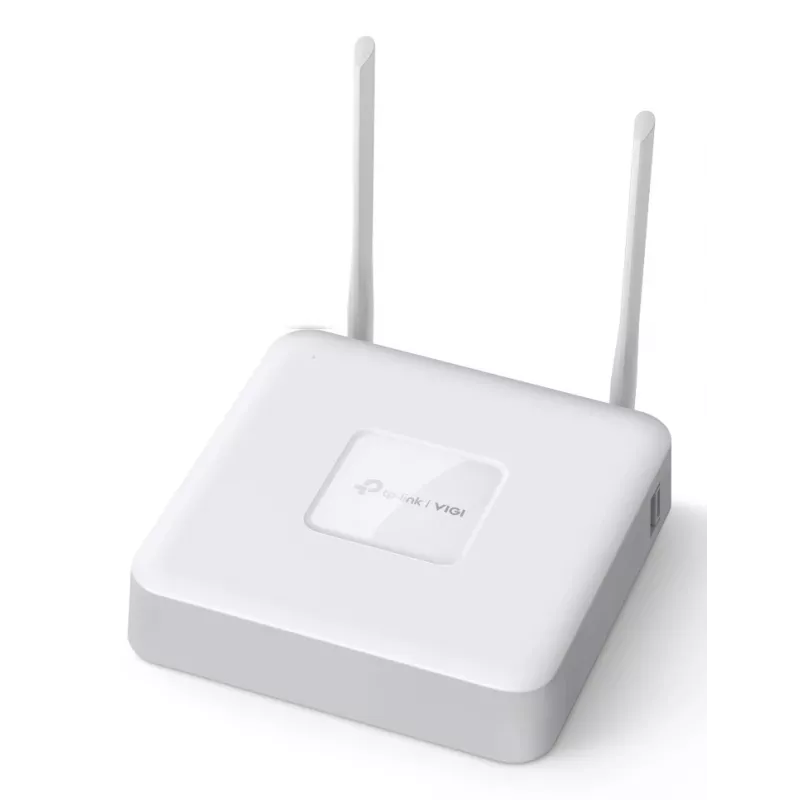

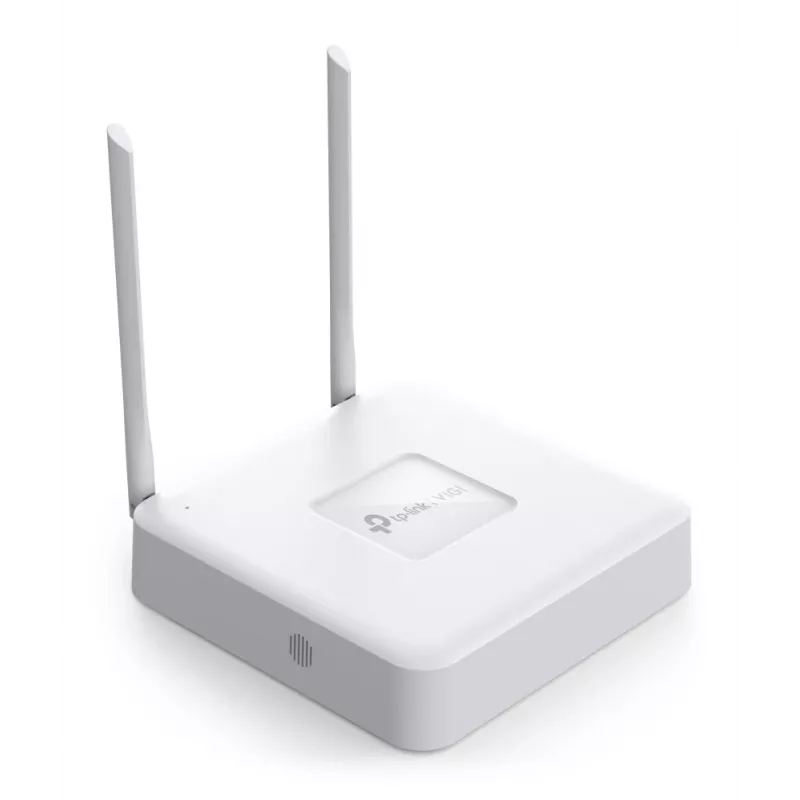

TP-Link VIGI NVR1108H-W Network Video Recorder 8 Channels 4K

The TP-Link VIGI NVR1108H-W Network Video Recorder 8 Channels 4K is a compact surveillance recorder designed to manage and store video streams from up to eight IP cameras at resolutions up to 3840 x 2160 pixels. The unit supports a SATA HDD interface with a maximum supported storage capacity of 16 TB, and offers USB and Ethernet connectivity for local access, backup and network integration. Its white enclosure and lightweight design make it suitable for both residential and small business surveillance installations where reliable 4K-capable recording is required.

Advantages

This NVR supports 8 camera channels and 4K resolution recording, enabling high-detail video capture and simultaneous multi-channel management. The SATA HDD interface allows use of large-capacity drives up to 16 TB for extended retention periods. Two USB 2.0 ports provide options for direct backup and peripheral connection, while two Ethernet LAN (RJ-45) ports enable integration into wired networks. The compact, lightweight white design simplifies installation in constrained spaces.

Suitable for

• Home security systems requiring multiple-camera recording and 4K resolution.
• Small office or retail environments needing continuous video surveillance and local storage.
• Remote monitoring setups where network integration and reliable recording are necessary.

Key specifications

• Maximum channels: 8 IP camera channels
• Maximum resolution: up to 3840 x 2160 pixels (4K)
• HDD interface: SATA; maximum supported capacity: 16 TB

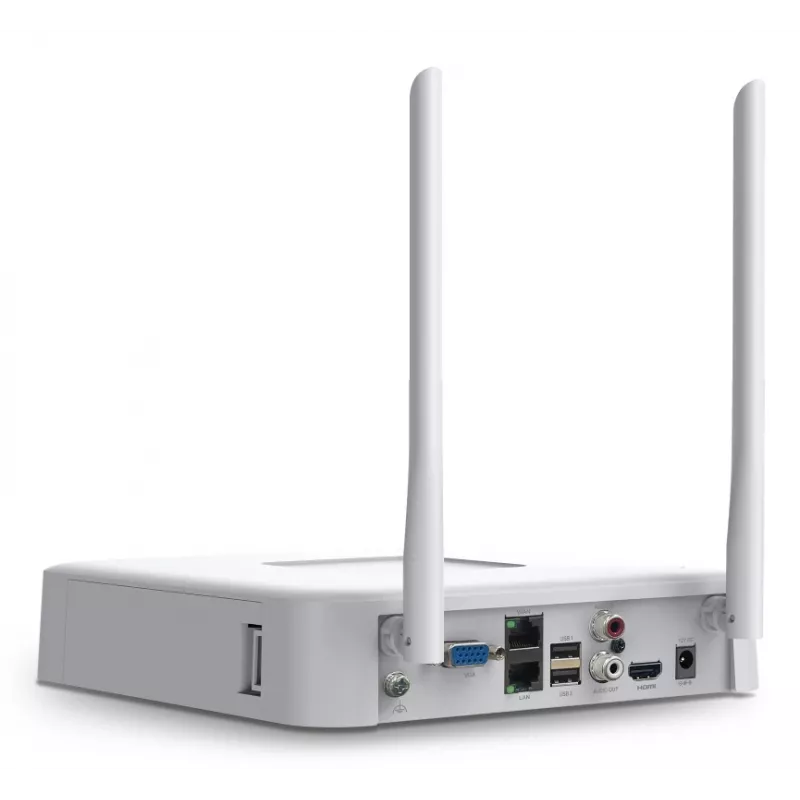

• USB: 2 × USB 2.0 ports for backup and peripherals
• Network: 2 × Ethernet LAN (RJ-45) ports for network connection
• Product colour: White
• Weight: 0.5 kg

How to use

Install a compatible SATA hard drive (not included) into the recorder following the manufacturer’s instructions, ensuring the drive does not exceed the supported 16 TB capacity. Connect the NVR to a local network using the RJ-45 Ethernet ports and attach IP cameras to the same network so they can be discovered and added via the device interface. Use the front or rear USB 2.0 ports to export video files or connect a mouse for local control. Configure recording schedules, motion detection and retention settings through the NVR’s web interface or management software according to site requirements.

Recommendations

Choose surveillance drives rated for continuous recording and install regular backups to external USB storage or network locations. Place the NVR in a ventilated, secure location and ensure firmware is kept up to date to maintain stability and network security.
