TP-Link VIGI C445 Turret IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall

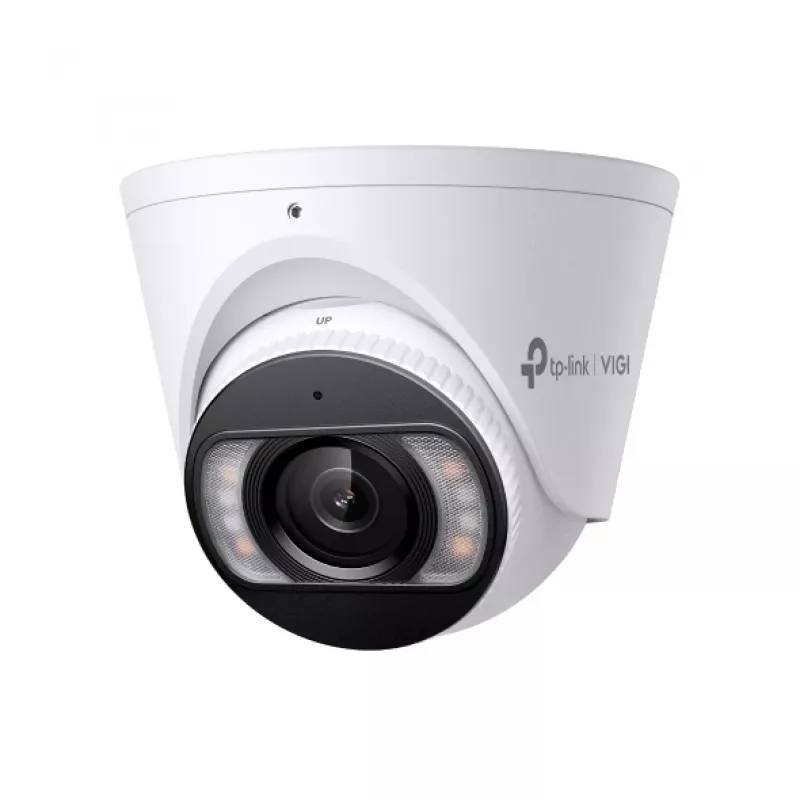

The TP-Link VIGI C445 2688 x 1520 Indoor Outdoor Wired is a turret-style IP security camera intended for both indoor and outdoor surveillance. It delivers 2688 x 1520 resolution from a CMOS sensor and operates with a minimum illumination of 0.005 lx, allowing detection in very low-light conditions. The camera offers a horizontal field of view of 80.4° and a vertical field of view of 41.8°, and is designed for wired network connections and fixed ceiling or wall mounting for flexible installation.

Advantages

The camera combines a high-resolution 2688 x 1520 image sensor with a low minimum illumination requirement to capture clear details in varied lighting environments. Its turret form factor supports both ceiling and wall mounting, and the wired connection provides a stable network link suitable for continuous monitoring. The stated horizontal and vertical viewing angles give predictable coverage for planning surveillance zones.

Suitable for

• Home entryways, living areas and garages
• Small business interiors such as offices and retail floors
• Outdoor coverage of porches, driveways and building perimeters (when correctly mounted)
• Fixed monitoring points where a wired network connection is available

Key specifications

• Image resolution: 2688 x 1520 pixels
• Image sensor type: CMOS
• Minimum illumination: 0.005 lux
• Horizontal field of view: 80.4°
• Vertical field of view: 41.8°
• Mounting options: ceiling or wall mount
• Connectivity: wired network connection

How to use

Choose a mounting location that provides the required field of view, ensuring the camera is within reach of a wired network cable and, if installed outdoors, positioned to avoid direct exposure to extreme weather without appropriate protection. Secure the turret camera to the ceiling or wall according to the mounting template and instructions provided by the manufacturer. Connect the camera to your network using the wired interface and complete any required configuration through the VIGI management software or compatible network video recorder to set resolution, motion detection zones and recording schedules.

Recommendations

For reliable operation, run the network cable in conduit or cable trunking for outdoor installations, verify stable power and network availability, and place the camera at a height and angle that prevents frequent obstructions and minimizes direct glare into the lens.
