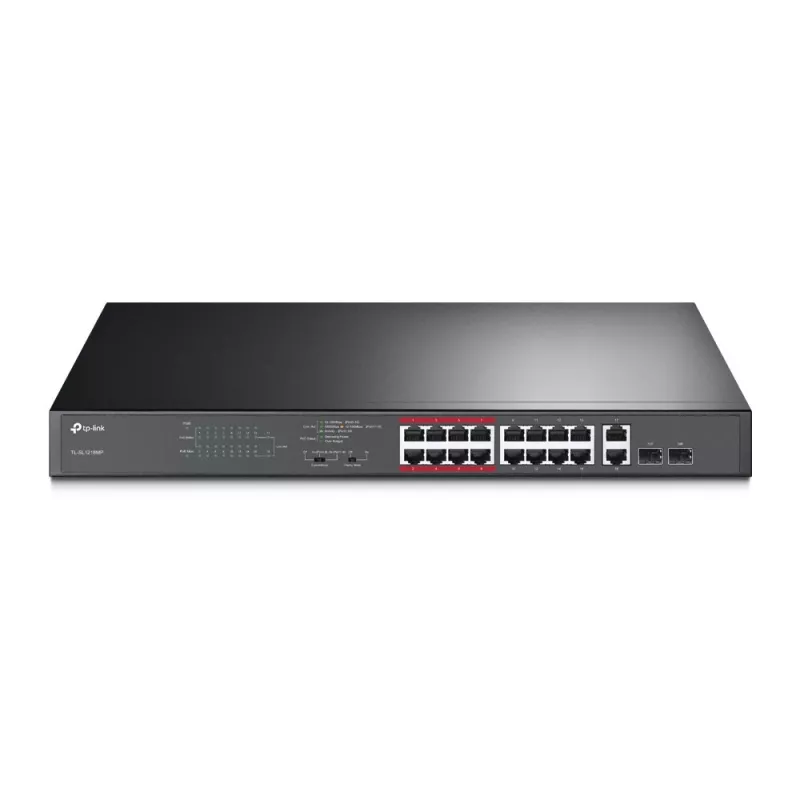

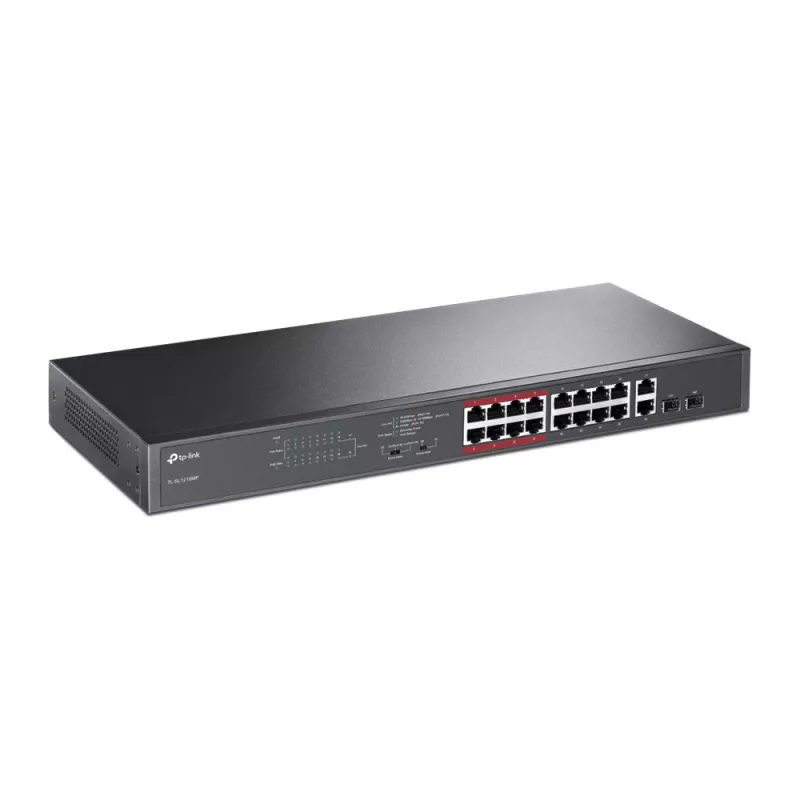

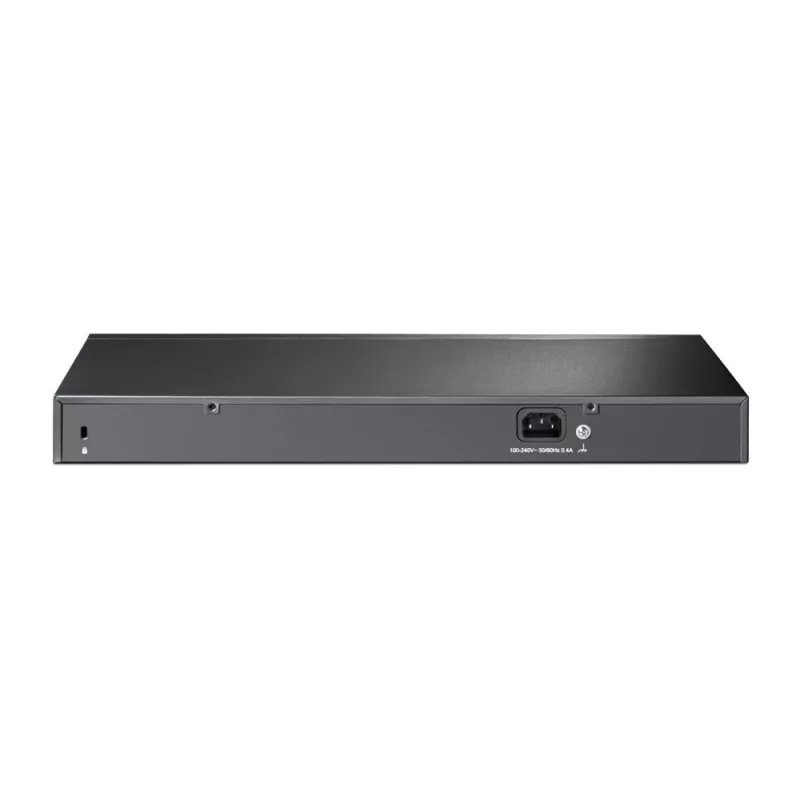

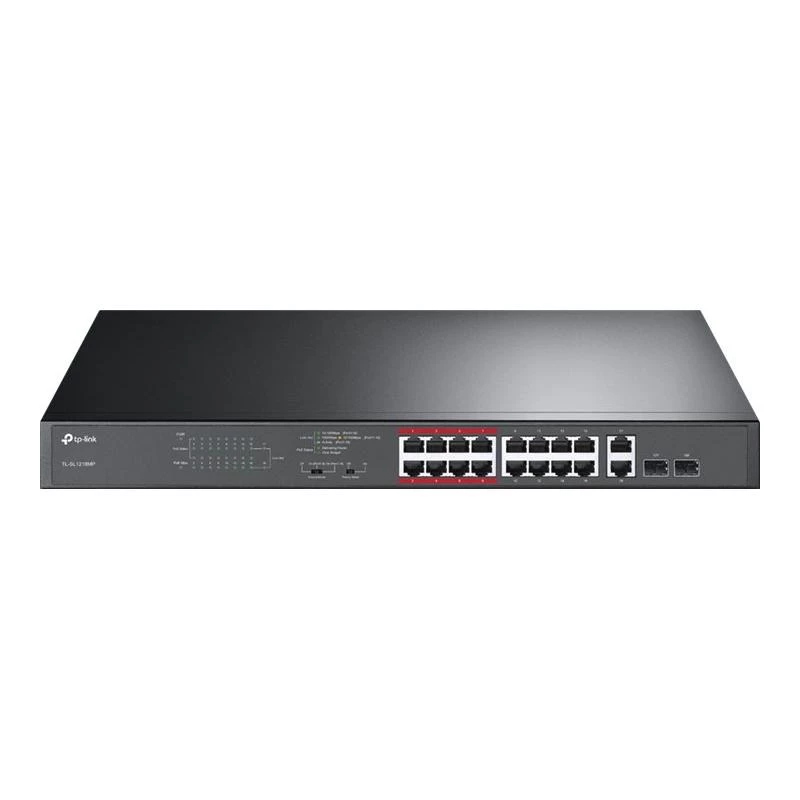

TP-Link TL-SL1218MP 18-Port Gigabit Unmanaged PoE+ Switch (16 PoE+ Ports, 150W Budget)

The TP-Link TL-SL1218MP is a high-performance 18-port unmanaged PoE+ switch designed for small and medium businesses. With 16 PoE+ ports and a total power budget of 150W, it provides reliable power and data connectivity for IP cameras, VoIP phones, wireless access points, and other PoE-enabled devices. The switch features two Gigabit uplink ports for high-speed backbone connections, ensuring smooth data transfer across your network.

Advantages

This switch simplifies network deployment by eliminating the need for separate power cables for each device. Its plug-and-play design requires no configuration, making it ideal for quick installations. The robust metal housing and rackmountable form factor ensure durability and easy integration into existing network racks. With a switching capacity of 7.2 Gbps and a packet forwarding rate of 5.36 Mpps, it delivers non-blocking performance for bandwidth-intensive applications.

Suitable for

• Small and medium business networks
• Surveillance systems with multiple IP cameras
• VoIP phone deployments
• Wireless access point installations
• Any environment requiring reliable PoE+ power

Key specifications

• Total Ports: 18
• PoE+ Ports: 16 (10/100 Mbps)
• Uplink Ports: 2 Gigabit (10/100/1000 Mbps)
• PoE Standard: IEEE 802.3af/at
• PoE Power Budget: 150 W
• Max Power per PoE Port: 30 W
• Switching Capacity: 7.2 Gbps
• Packet Forwarding Rate: 5.36 Mpps
• MAC Address Table: 8K entries
• Jumbo Frame Support: 10 KB
• Mounting: Rackmount (1U)
• Management: Unmanaged
• Fans: 2
• Power Supply: Internal, 100-240V AC, 50/60 Hz
• Operating Temperature: 0–50 °C

Recommendations

For optimal performance, use quality Cat5e or higher Ethernet cables. The switch is best suited for environments with moderate to high PoE power demands. Ensure proper ventilation around the unit to maintain operating temperature.
