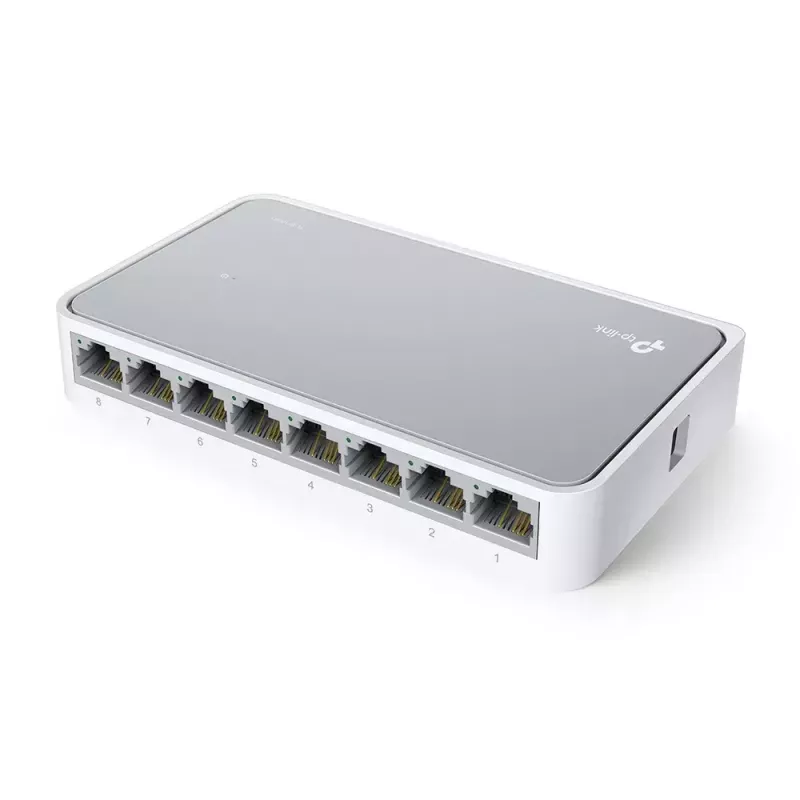

TP-Link TL-SF1008D Unmanaged Fast Ethernet (10/100) White

The TP-Link TL-SF1008D is an unmanaged 8-port Fast Ethernet switch offering 10/100 Mbps connectivity for small offices and home networks. It provides eight Auto-Negotiation RJ45 ports with Auto MDI/MDIX, non‑blocking switching architecture and 10K jumbo frame support to improve large file transfers. The switch is compliant with IEEE 802.3/802.3u/802.3x standards and is designed for simple plug-and-play installation without configuration.

Advantages

The TL-SF1008D delivers full wire-speed forwarding and filtering for maximum throughput, supports full and half duplex flow control (IEEE 802.3x and backpressure), and eliminates the need for crossover cables thanks to Auto MDI/MDIX on all ports. Energy-efficient TP‑Link technology adjusts power based on link status and cable length to reduce power consumption, and the product and packaging follow RoHS requirements with recyclable packaging materials.

Suitable for

• Small office or home office (SOHO) networks
• Expanding wired LAN ports for routers or modems
• Workgroup connectivity for printers, NAS, and desktop PCs
• Temporary network setups and simple unmanaged network segments

Key specifications

• Ports: 8 × 10/100 Mbps Auto‑Negotiation RJ45 ports
• Switch type: Unmanaged
• Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Switching capacity: 1.6 Gbit/s
• MAC address table: 1000 entries
• Jumbo frame support: up to 10K
• Auto MDI/MDIX: Yes (all ports)
• Color: White

How to use

Connect the TL-SF1008D to your router, modem or another switch using standard Ethernet cables; Auto MDI/MDIX removes the need for crossover cables. Plug devices into the remaining RJ45 ports to provide them with network access. The switch operates immediately without configuration—power it on and connected devices will negotiate link speed (10/100 Mbps) automatically and begin communicating.

Recommendations

Place the switch in a well‑ventilated, dry location away from direct heat sources. For best performance with long cable runs, use quality Cat5e or Cat6 cables; the device will adjust power consumption according to cable length. Regularly check connected device compatibility with 10/100 Mbps speeds when integrating older equipment.
