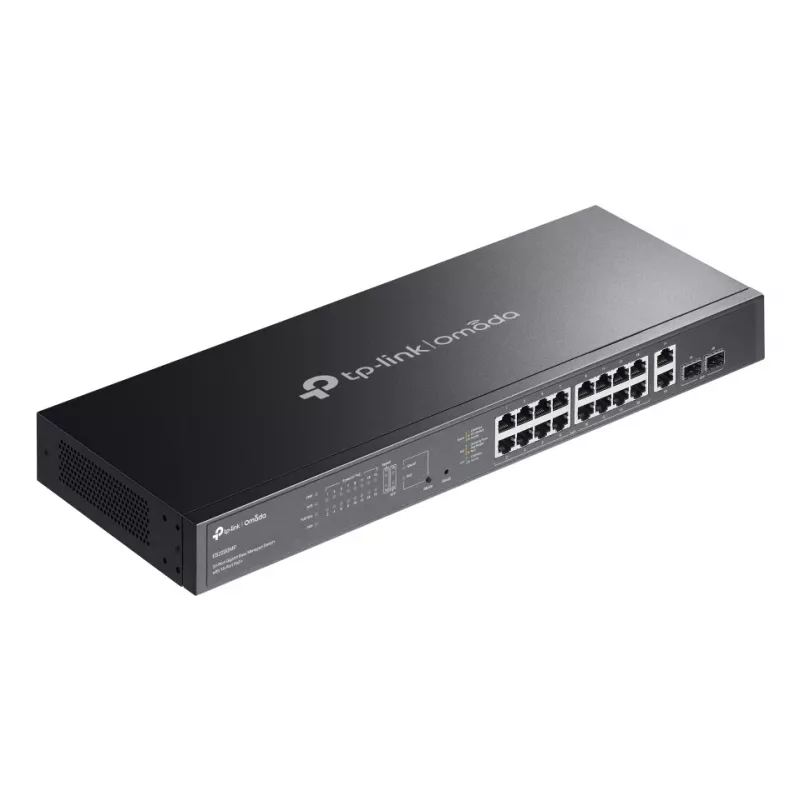

TP-Link Omada ES220GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

TP-Link Omada ES220GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
60 mo.
TP-Link Omada ES220GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
R4,195
Omada Cloud Essentials - A Free and Easy Cloud-Based Network MnagementOmada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with ess... Read More
Stock 21 Code 321311 Brand TP-LINK Model ES220GMP Warranty 5 Years

Shipping & Returns

Estimated delivery Thursday, October 8
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
Omada Cloud Essentials - A Free and Easy Cloud-Based Network Mnagement

Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.

TP-Link Omada ES220GMP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 18. MAC address table: 8000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting

Key Highlights
  • 16× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
  • 2× Gigabit RJ45 port, 2× Gigabit SFP port
  • 250W Power Budget, with up to 30W for each PoE port*
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app†
  • Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Durable metal casing and rack-mountable design
  • Managed L2 Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 18
  • MAC address table: 8000 entries Switching capacity: 40 Gbit/s
  • Rack mounting
  • AC Power supply included Power over Ethernet (PoE)
Specifications
10G support
No
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Basic switching RJ-45 Ethernet ports quantity
18
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Cables included
AC
Cloud-managed
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Depth
180 mm
DHCP features
DHCP client
Fast leave
Yes
Firmware upgradeable
Yes
Flash memory
64 MB
Flow control support
Yes
Forwarding rate
29.76 Mpps
Gigabit Ethernet (copper) ports quantity
18
Heat dissipation
984.88 BTU/h
Height
44 mm
IGMP snooping
Yes
Jumbo frames
15000
Jumbo frames support
Yes
LED indicators
Yes
Link aggregation
Yes
Loop protection
Yes
MAC address table
8000 entries
Mean time between failures (MTBF)
310550.7 h
Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Noise level
41.5 dB
Number of fans
2 fan(s)
Number of VLANs
32
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-5 - 50 °C
Package type
Box
Packet buffer memory
4 MB
Port mirroring
Yes
Power connector
AC-in jack
Power consumption (max)
289.7 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet (PoE) type supported
PoE+
Power over Ethernet plus (PoE+) ports quantity
16
Power source
AC
Power supply included
Yes
Product colour
Black
Quality of Service (QoS) support
Yes
Queue scheduling algorithms
Weighted Round Robin (WRR)
Rack mount kit
Yes
Rack mounting
Yes
SFP module slots quantity
2
Stackable
No
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Surge protection
Yes
Surge protection voltage
6 kV
Switch layer
L2
Switch type
Managed
Switching capacity
40 Gbit/s
Total Power over Ethernet (PoE) budget
250 W
Unified static configuration
Yes
User guide
Yes
Virtual LAN features
MTU VLAN, Port-based VLAN, Tagged VLAN
VLAN support
Yes
Web-based management
Yes
Width
440 mm
Zero Touch Provisioning (ZTP)
Yes
