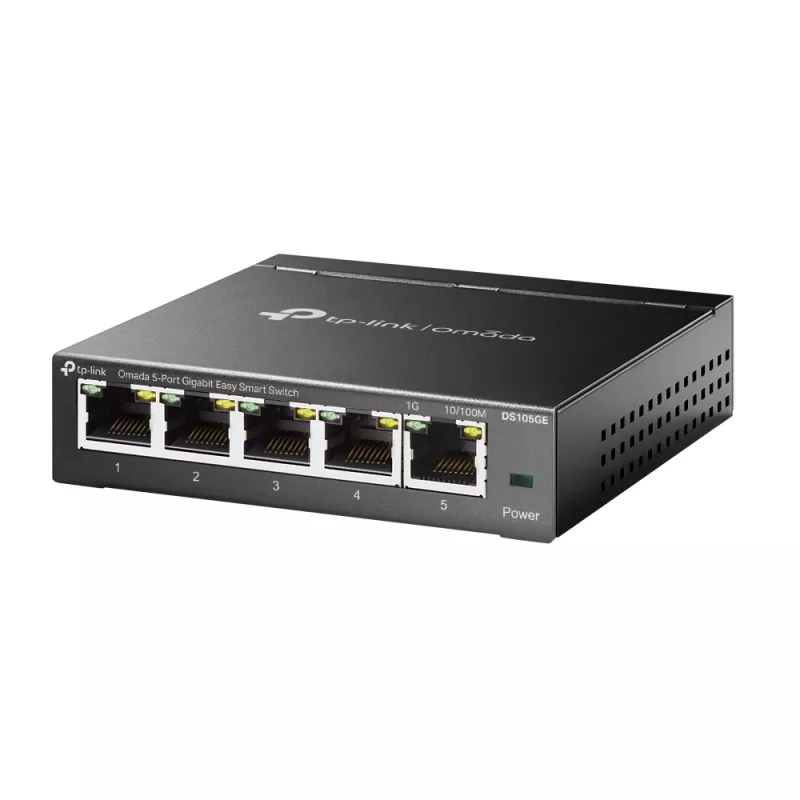

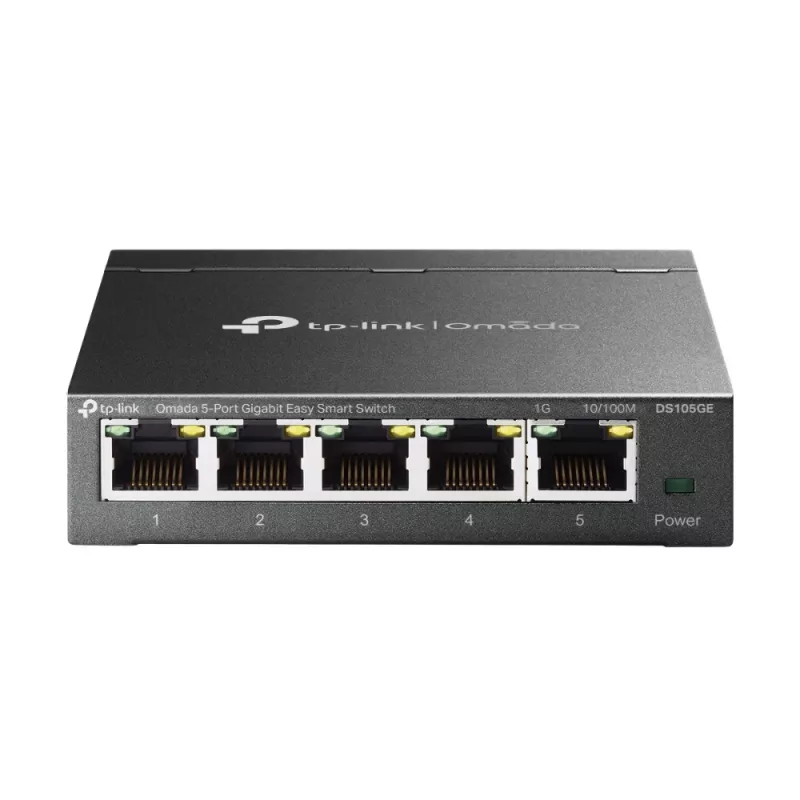

TP-Link Omada DS105GE network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

TP-Link Omada DS105GE network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
TP-Link Omada DS105GE network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
TP-Link Omada DS105GE network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
TP-Link Omada DS105GE network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
R969
TP-Link Omada DS105GE, Managed, L2, Gigabit Ethernet (10/100/1000) TP-Link Omada DS105GE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching c... Read More
Stock Out Of StockNo Stock Code 2402125 Brand TP-LINK Model DS105GE Warranty 2 Years

Shipping & Returns

TP-Link Omada DS105GE, Managed, L2, Gigabit Ethernet (10/100/1000)

TP-Link Omada DS105GE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Power connector: DC-in jack

Key Highlights
  • 5× 10/100/1000Mbps RJ45 ports
  • Plug and play for instant connectivity
  • Simple configuration via web-based user interface and management utility
  • Durable metal casing of superior quality and professional appearance
  • Green technology reduces power consumption
  • Note: This Omada Easy Smart switch does not support Omada SDN central management
  • Managed L2
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • 10BASE-T, 100BASE-TX, 1000BASE-T
  • MAC address table: 2000 entries Switching capacity: 10 Gbit/s
  • AC/DC Power supply included
Specifications
10G support
No
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Broadcast storm control
Yes
Cables included
Power
Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
DC input voltage
5 V
Depth
98 mm
Ethernet LAN data rates
10,100,1000 Mbit/s
Fanless
Yes
Forwarding rate
7.4 Mpps
Heat dissipation
9.62 BTU/h
Height
25 mm
Housing material
Steel
IGMP snooping
Yes
Input current
0.6 A
Jumbo frames
16
Jumbo frames support
Yes
LED indicators
Activity, Link, Power
Link aggregation
Yes
Loop protection
Yes
MAC address table
2000 entries
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Number of queues
4
Number of VLANs
32
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Packet buffer memory
1 MB
Port mirroring
Yes
Power connector
DC-in jack
Power consumption (max)
2.82 W
Power over Ethernet (PoE)
No
Power source
AC/DC
Power supply included
Yes
Product colour
Black
Quality of Service (QoS) support
Yes
Queue scheduling algorithms
Priority queuing (PQ)
Rack mounting
No
Rate limiting
Yes
Reset button
Yes
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Switch layer
L2
Switch type
Managed
Switching capacity
10 Gbit/s
User guide
Yes
Virtual LAN features
Port-based VLAN, Tagged VLAN
Width
100 mm

Leaflet

Open Leaflet

Manual

Open Manual
