TP-Link Omada DS105G-M2 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black

TP-Link Omada DS105G-M2 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black
TP-Link Omada DS105G-M2 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black
TP-Link Omada DS105G-M2 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black
TP-Link Omada DS105G-M2 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black
TP-Link Omada DS105G-M2 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black
TP-Link Omada DS105G-M2 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black
TP-Link Omada DS105G-M2 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black
TP-Link Omada DS105G-M2 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black
TP-Link Omada DS105G-M2 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black
TP-Link Omada DS105G-M2 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black
R2,376
TP-Link Omada DS105G-M2, Unmanaged, 2.5G Ethernet (100/1000/2500) TP-Link Omada DS105G-M2. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 4000 entries, Switching capacity: 25 Gbit... Read More
Stock Out Of StockNo Stock Code 2457851 Brand TP-LINK Model DS105G-M2 Warranty 2 Years

Shipping & Returns

TP-Link Omada DS105G-M2, Unmanaged, 2.5G Ethernet (100/1000/2500)

TP-Link Omada DS105G-M2. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 4000 entries, Switching capacity: 25 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. DC input voltage: 9 V. Power connector: DC-in jack

Key Highlights
  • Five 2.5 Gbps Ports. 5× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 25 Gbps of switching capacity
  • Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more
  • Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations
  • Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.*
  • Silent Operation. Industry-leading fanless design ensures silent operation, ideal for any home or business
  • Plug and Play. No configuration or central management required

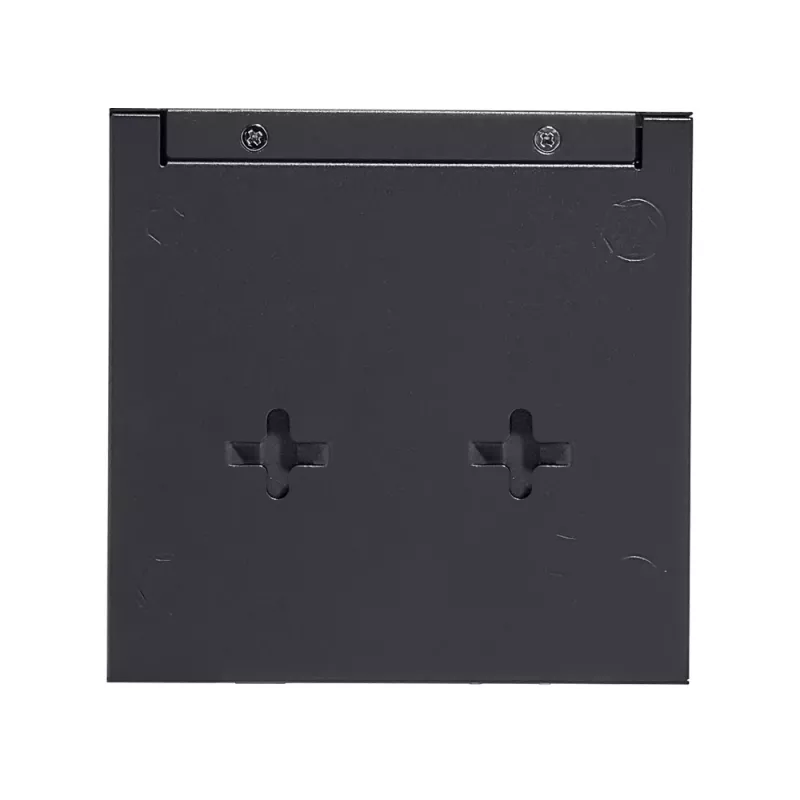

  • Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments
  • Unmanaged
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • 2.5GBASE-T, 100BASE-TX, 1000BASE-T
  • MAC address table: 4000 entries Switching capacity: 25 Gbit/s
  • DC Power supply included
Specifications
10G support
No
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Cables included
Power
Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
Copper ethernet cabling technology
2.5GBASE-T, 100BASE-TX, 1000BASE-T
DC input voltage
9 V
Depth
98 mm
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Fanless
Yes
Flow control support
Yes
Forwarding rate
18.6 Mpps
Heat dissipation
19.759 BTU/h
Height
25 mm
Housing material
Metal
IGMP snooping
Yes
Input current
0.6 A
Jumbo frames
12
Jumbo frames support
Yes
LED indicators
Activity, Link, Power
MAC address table
4000 entries
Networking standards
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Packet buffer memory
8 MB
Power connector
DC-in jack
Power consumption (max)
5.81 W
Power over Ethernet (PoE)
No
Power source
DC
Power supply included
Yes
Product colour
Black
Quality of Service (QoS) support
Yes
Rack mounting
No
Reset button
Yes
Rubber feet
Yes
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Switch type
Unmanaged
Switching capacity
25 Gbit/s
User guide
Yes
Width
99.8 mm

Leaflet

Open Leaflet

Manual

Open Manual
