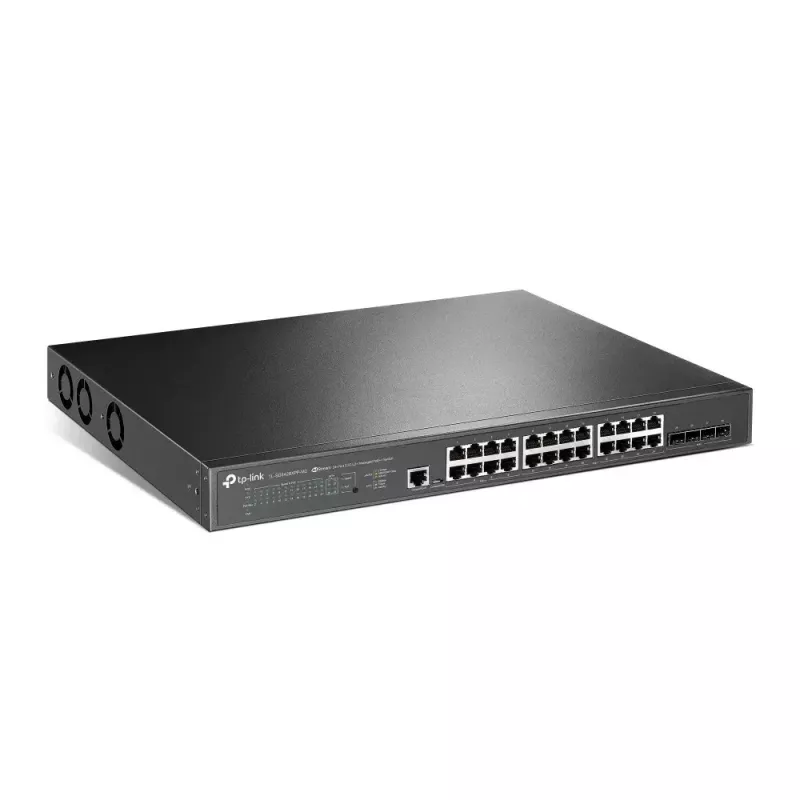

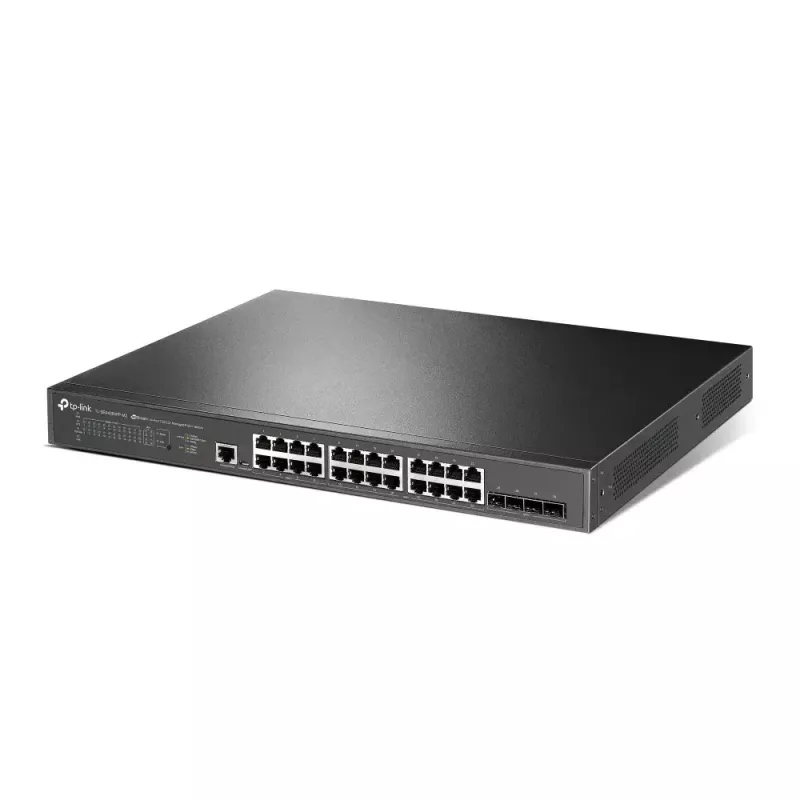

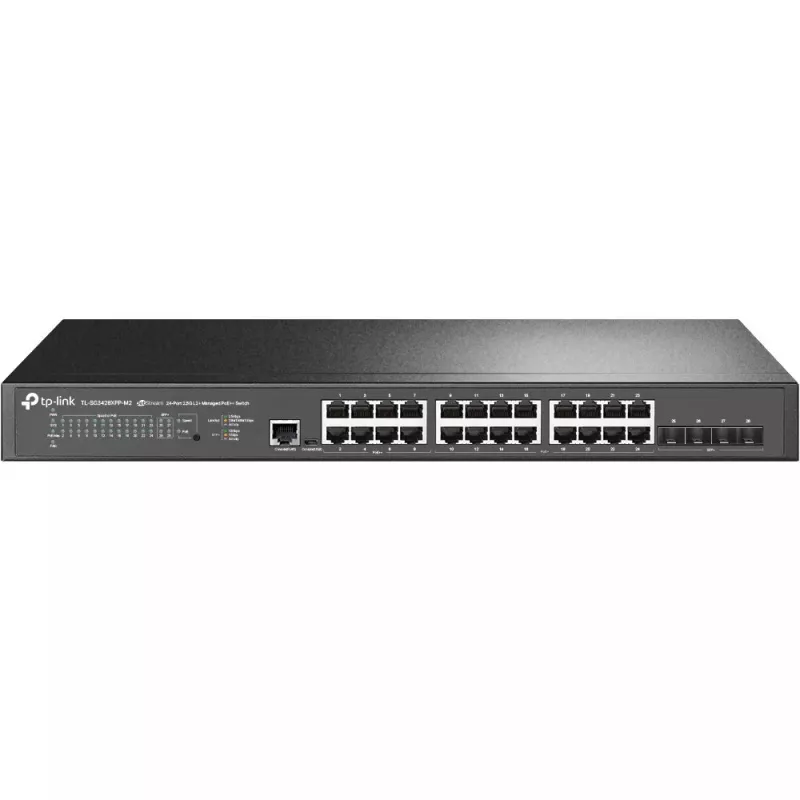

TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

The TP-Link JetStream TL-SG3428XPP-M2 is a managed L2+ switch with 24× 2.5GBASE-T ports and 4× 10GE SFP+ uplink slots. It delivers a total switching capacity of 200 Gbit/s, a MAC address table of 32,000 entries and a 1U rack-mountable form factor. The switch supports a mixed PoE configuration with 8 PoE++ and 16 PoE+ ports and a 500 W total PoE power budget, enabling single-cable power and data delivery for multi-gigabit WiFi 7/6E/6 access points and other powered devices.

Advantages

The switch provides multi-gigabit 2.5G copper ports and four 10G SFP+ uplinks for non-blocking, low-latency connectivity suitable for high-bandwidth wireless deployments. Centralized cloud management via an SDN platform allows unified control of access points, switches and gateways. Advanced L2+ and L3 features, comprehensive security mechanisms and ISP-oriented functions such as QinQ and PPPoE ID insertion support scalable, manageable and secure network designs for enterprises, campuses and service providers.

Suitable for

• High-density WiFi 7/6E/6 access point deployments in offices, hotels or campuses
• Small and medium enterprise networks requiring PoE++/PoE+ power and multi-gigabit uplinks
• Service provider aggregation and managed network environments
• Environments needing centralized cloud/SDN management and advanced L3 features

Key specifications

• Model: TP-Link JetStream TL-SG3428XPP-M2

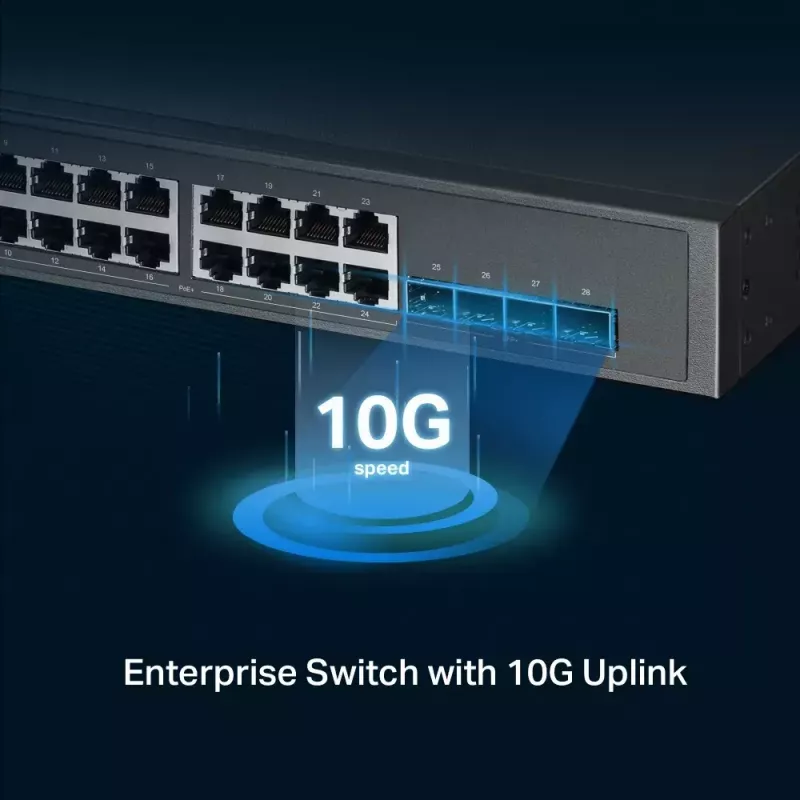

• Ports: 24 × 2.5GBASE-T RJ-45, 4 × 10GE SFP+
• PoE: 8 PoE++ ports + 16 PoE+ ports, total PoE budget 500 W
• Switching capacity: 200 Gbit/s
• MAC table: 32,000 entries
• Form factor: 1U rack-mountable, colour: black

How to use

Install the switch in a standard 19-inch rack or place it on a stable surface. Connect 2.5G-capable access points or devices to the RJ-45 ports to provide both power and data over a single Ethernet cable. Use the 10GE SFP+ slots for high-bandwidth uplinks to servers or core switches. Configure network features, VLANs, QoS, security policies and SDN/cloud integration through the web/CLI or the vendor’s centralized management platform according to your network design.

Recommendations

Plan PoE budget allocation before deployment to ensure the total 500 W is sufficient for all connected devices. Use quality Cat5e/Cat6/Cat6A cabling for stable multi-gigabit connections, and enable VLANs, ACLs and 802.1X authentication to segregate and protect sensitive traffic. For large-scale or carrier deployments, combine static routing and IGMP features to optimize multicast and inter-VLAN traffic.
