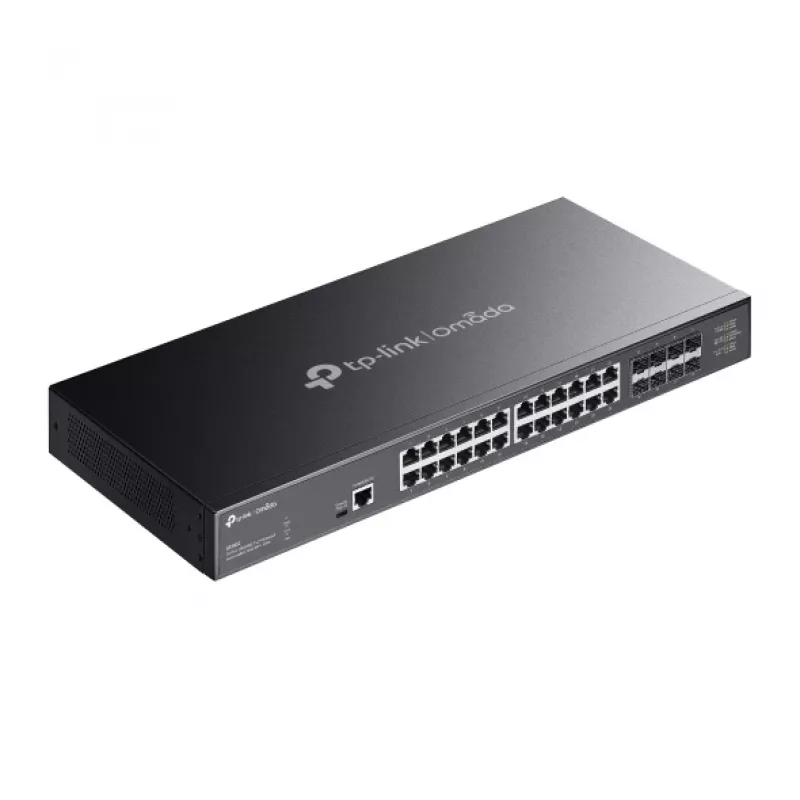

TP-Link Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots

The TP-Link Omada SX3832 24 Ports 10G Ethernet is a managed L2/L2+ rack-mount switch in a 1U form factor designed for high-performance network deployments. It provides twenty-four 10G Ethernet RJ-45 ports that support 100/1000/10000 Mbps connections and implements IEEE 802.3az energy-efficient Ethernet standards. With a switching capacity of 640 Gbit/s and a MAC address table holding up to 32,000 entries, the unit is intended for environments that require consolidated high-speed connectivity and professional management features.

Advantages

The switch offers full management capabilities typical of L2/L2+ devices, enabling VLAN segmentation, traffic control and monitoring through the Omada management platform. Twenty-four 10G Ethernet ports allow aggregation of servers, storage systems and uplinks without immediate need for additional aggregation hardware. Compliance with IEEE 802.3az improves power efficiency during low-activity periods. The compact 1U rack design and black chassis facilitate integration into standard data center and server room racks.

Suitable for

• Data center access and aggregation layers requiring 10G uplinks
• Small to medium enterprise core and distribution switching
• High-bandwidth server or storage connectivity
• Environments using Omada centralized network management

Key specifications

• Port count: 24 RJ-45 ports supporting 10G Ethernet (100/1000/10000 Mbps)
• Switch type: Managed L2/L2+
• Switching capacity: 640 Gbit/s
• MAC address table size: 32,000 entries
• Networking standards: IEEE 802.3az (Energy Efficient Ethernet)
• Form factor: 1U rack-mount
• Colour: Black

How to use

Install the SX3832 in a standard 19-inch rack using the supplied mounting brackets and secure appropriate ventilation clearance. Connect network equipment to the RJ-45 ports using Cat6a or better cables for reliable 10G performance. Access the device through the Omada controller or the local management interface to configure VLANs, link aggregation (LACP), QoS policies and other L2/L2+ features. Monitor traffic and device status via the management platform to verify port utilization and error statistics.

Recommendations

For stable 10G performance, use shielded or properly terminated cabling rated for 10G and ensure connected devices support 10G Ethernet. Place the switch in a ventilated rack position and maintain firmware updates via the Omada management system to apply performance and security fixes.
