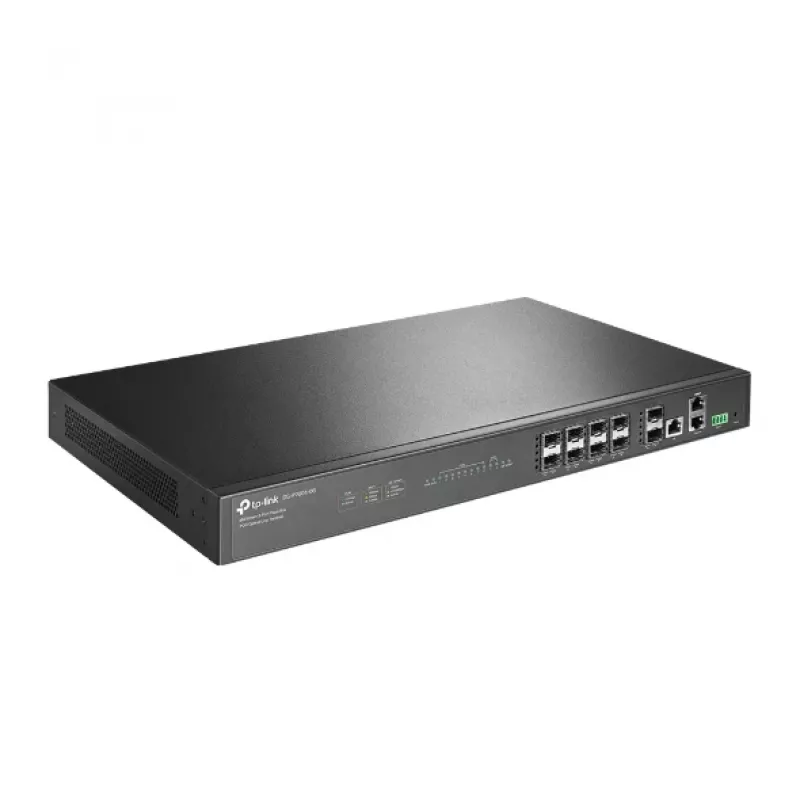

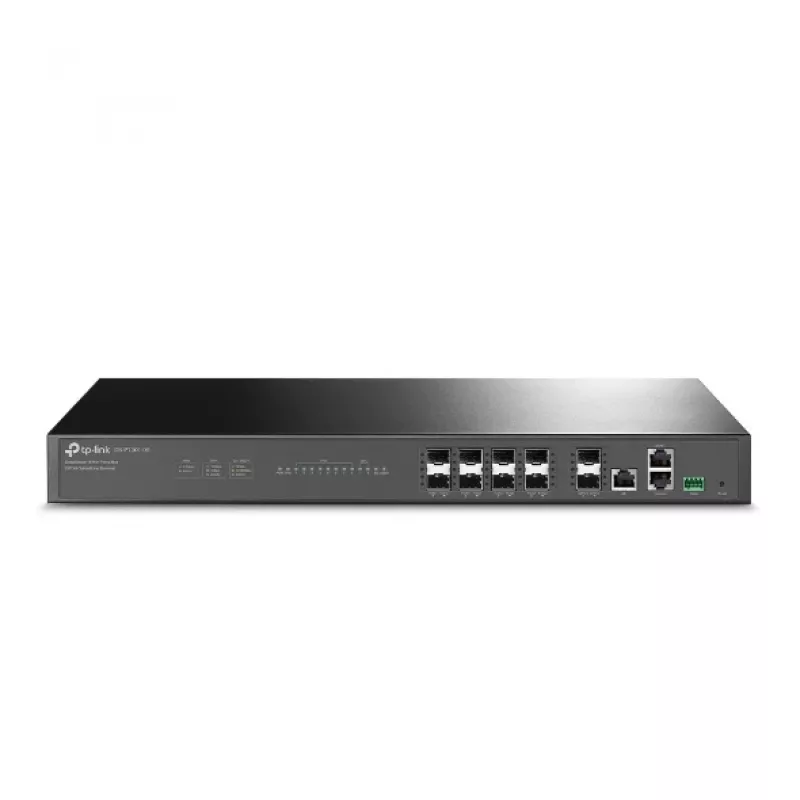

TP-Link DeltaStream 8-port Pizza-box GPON Optical Line Terminal

TP-Link DeltaStream 8-port Pizza-box GPON Optical Line Terminal
TP-Link DeltaStream 8-port Pizza-box GPON Optical Line Terminal
TP-Link DeltaStream 8-port Pizza-box GPON Optical Line Terminal
60 mo.
TP-Link DeltaStream 8-port Pizza-box GPON Optical Line Terminal
TP-Link DeltaStream 8-port Pizza-box GPON Optical Line Terminal
TP-Link DeltaStream 8-port Pizza-box GPON Optical Line Terminal
R36,446
8-Port GPON Optical Line Terminal8 GPON Ports,Supports 1024 ONUsSupports 1:128 splitting ratio for every port—up to 1024 ONTs by one device.Free Centralized ManagementVia DeltaStream PON Management System (DPMS)Easy maintenance and centralized management makes your life a breeze. Configure and updat... Read More
Stock Out Of StockNo Stock Code 1729950 Brand TP-LINK Model DS-P7001-08 Warranty 5 Years

Shipping & Returns

8-Port GPON Optical Line Terminal

8 GPON Ports,
Supports 1024 ONUs

Supports 1:128 splitting ratio for every port—up to 1024 ONTs by one device.

Free Centralized Management
Via DeltaStream PON Management System (DPMS)

Easy maintenance and centralized management makes your life a breeze. Configure and update all your devices at once via DeltaStream PON Management System (DPMS), SNMP, CLI and Web UI.

- No Additional Expense
- Improve Management Efficiency And Reduce Maintenance Costs
- The Easy-to-Use Dashboard Ensures Hassle-Free Configuration

Compact Size, Flexible Deployment
Mount in a rack for flexible deployment with all your other products.

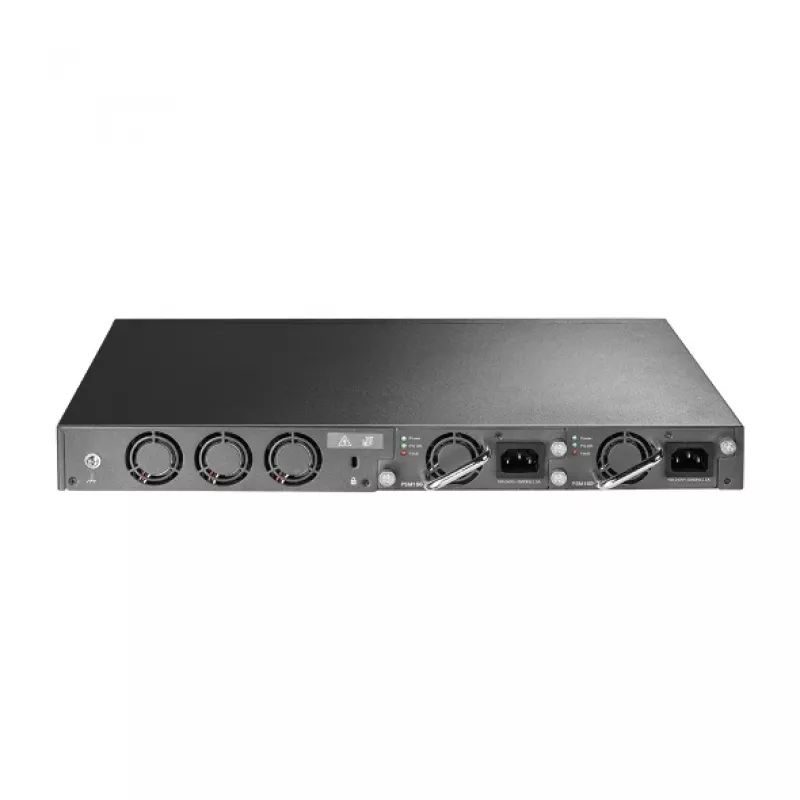

Constant Reliability Through Dual Redundant Power Supplies
Dual redundant power supplies ensures carrier-class reliability. AC, DC and mixed power input supported.

TP-Link DeltaStream 8-port Pizza-box GPON Optical Line Terminal. GPON split ratio (max): 1:128, Maximum operating distance (GPON): 20000 m. Upstream ports: Gigabit Ethernet. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, DC voltage range: 38.4 - 72 V. Width: 440 mm, Depth: 260 mm, Height: 44 mm

Key Highlights
  • 8 GPON Ports: Supports 1:128 splitting ratio for every port—up to 1024 ONTs by one device
  • High-Speed Uplink Ports: Provides 2× 10GE SFP+ ports and 1× gigabit uplink port
  • Redundant Dual Power Supplies: Carrier-class reliability with dual hot-swapping AC+DC power supplies
  • Complete L2 & Advanced L3 Functions: Satisfies the need for numerous commercial requirements
  • Centralized Management: Via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI
  • Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirement for different applications
Specifications
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Access Control List (ACL)
Yes
DC voltage range
38.4 - 72 V
Depth
260 mm
DHCP relay
Yes
DHCP server
Yes
Ethernet LAN (RJ-45) ports
2
GPON ports quantity
8
GPON split ratio (max)
1:128
Height
44 mm
IGMP snooping
Yes
Maximum operating distance (GPON)
20000 m
Multicast Listener Discovery (MLD) snooping
Y
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 50 °C
Power consumption (max)
70 W
Quality of Service (QoS) support
Yes
SFP/SFP+ slots quantity
2
Static route
Yes
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Upstream ports
Gigabit Ethernet
Width
440 mm

Document

Open Document

Document

Open Document

Document

Open Document

Leaflet

Open Leaflet
