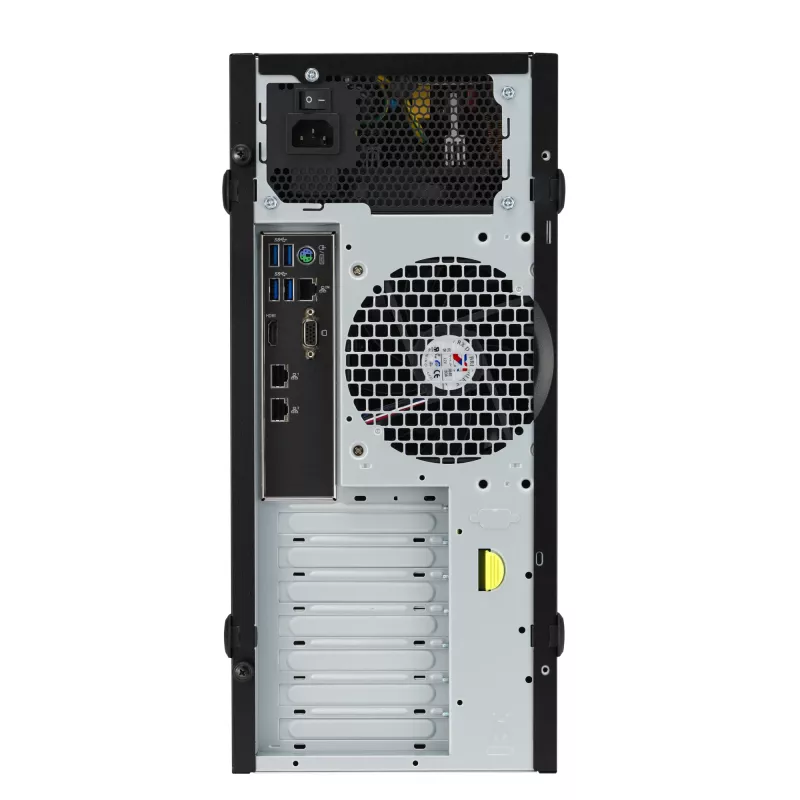

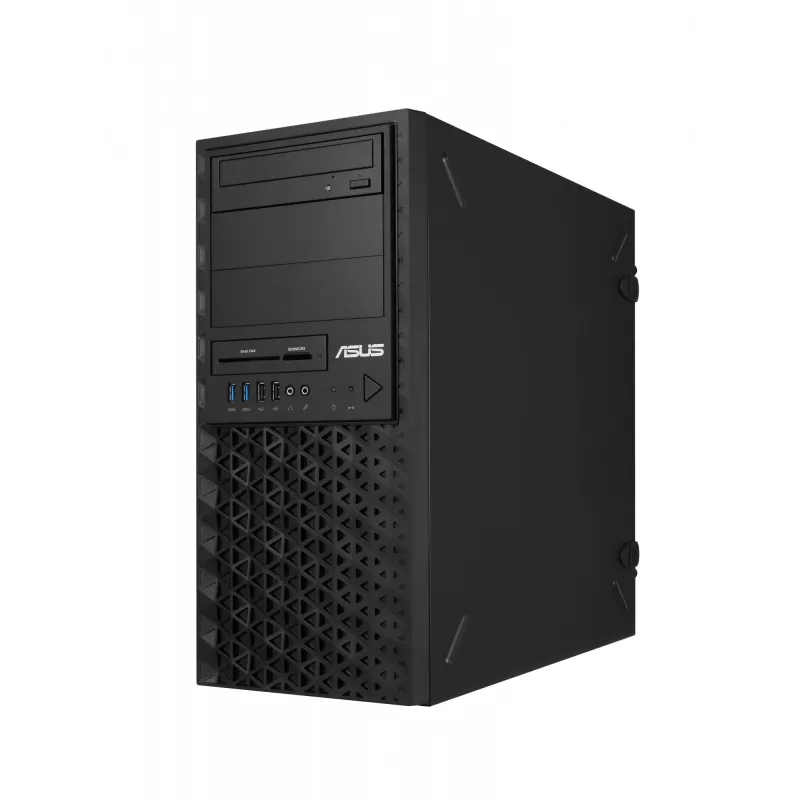

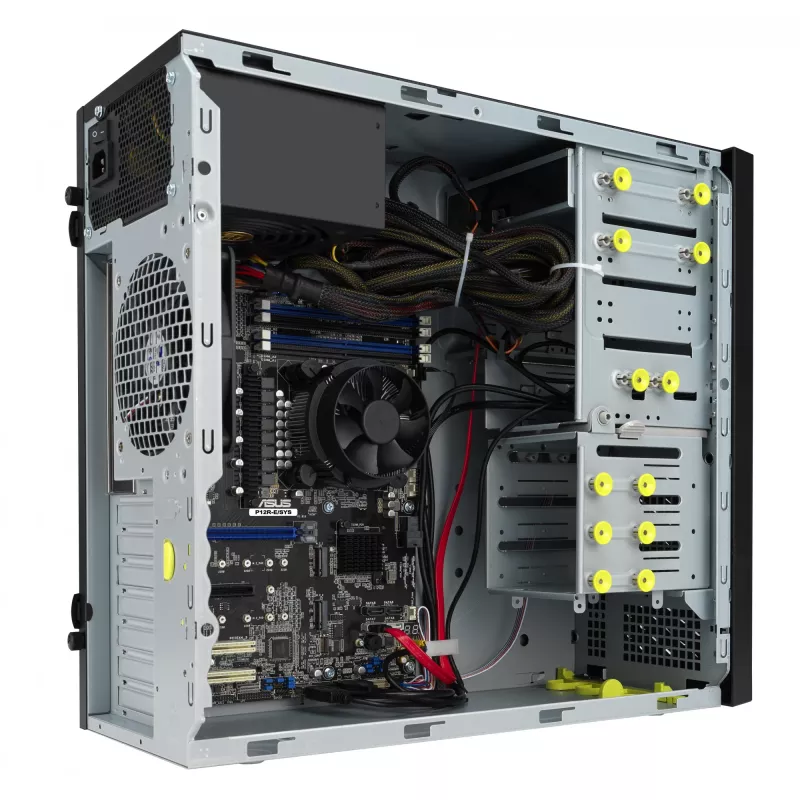

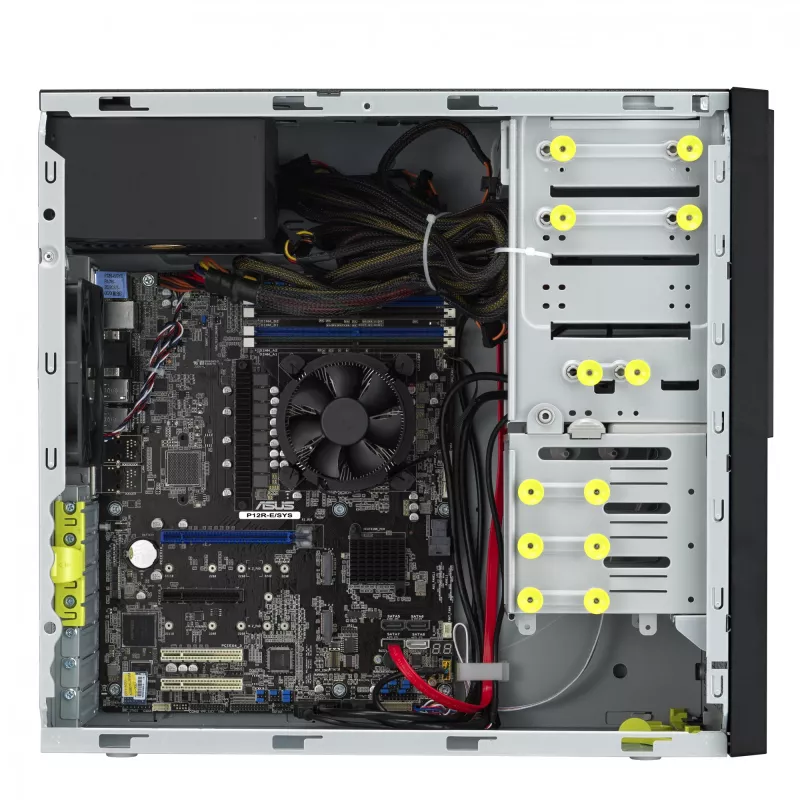

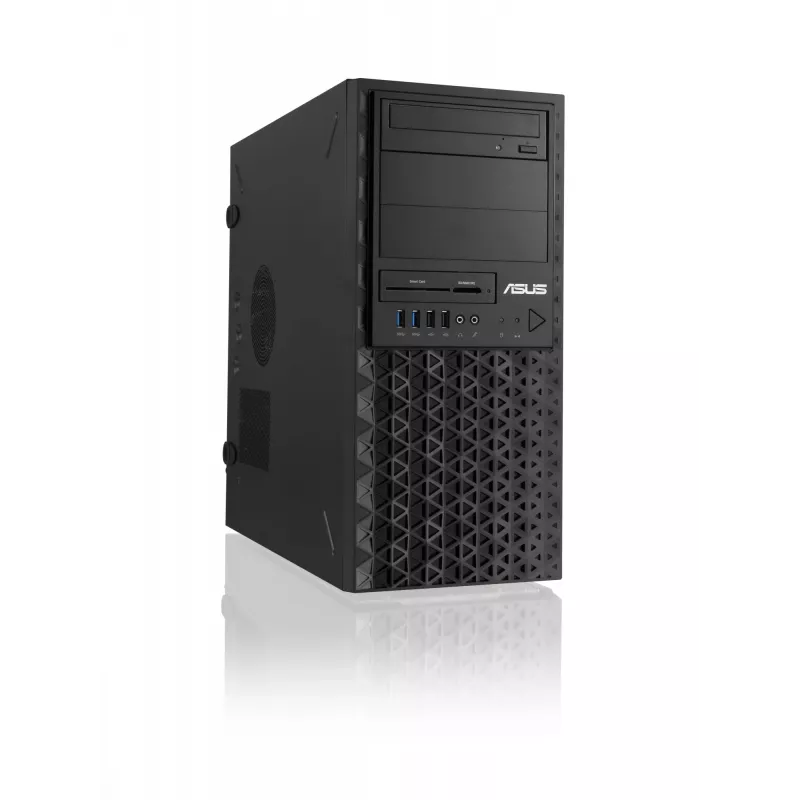

Tower computer case ASUS TS100-E11-PI4 Black with Intel C256 chipset, LGA1200 support, 300W PSU

The ASUS TS100-E11-PI4 Tower in black is a compact server chassis built for small business workloads based on the Intel Xeon E-2300 family and Intel C256 chipset. It supports LGA 1200 processors, DDR4 memory up to 128 GB, multiple drive form factors (2.5", 3.5" and M.2) and includes dual Intel I210-AT GbE ports, HDMI 1.4 for high-resolution monitoring and a VGA output from the BMC. The chassis is designed for expandability and reliability with PCIe 4.0 readiness, optional Platform Firmware Resilience (PFR) and Trusted Platform Module (TPM 2.0) support.

Advantages

ASUS TS100-E11-PI4 offers server-grade connectivity with dual Intel Gigabit Ethernet, PCIe 4.0 readiness for next-generation storage and networking, and integrated management through ASUS ASMB10-iKVM and ASUS Control Center. Hardware security features include factory-fittable PFR for firmware resiliency and TPM 2.0 support for cryptographic protection. The tower form factor accommodates a mix of HDD, SSD and M.2 storage and provides HDMI 1.4 output for higher-resolution local monitoring.

Suitable for

• Small business file and application servers
• Edge computing and branch office infrastructure
• Storage and backup servers with mixed HDD/SSD configurations
• Remote-managed IT environments requiring out-of-band management

Key specifications

• Form factor: Tower
• Chipset: Intel C256
• CPU socket: LGA 1200 (Intel Xeon E-2300 compatible)
• Memory: DDR4, up to 128 GB (supported capacities: 8 GB, 16 GB, 32 GB modules)
• Drive bays: 3 × 3.5" bays, 1 × 2.5" bay; M.2 SSD support
• Expansion: PCIe 4.0 ready slots
• Network: Dual Intel I210-AT Gigabit Ethernet (10/100/1000 Mbit/s)
• Video outputs: HDMI 1.4 (CPU-directed) and VGA (BMC-directed)
• Power supply: 300 W
• Front ports: 2 × USB 2.0, 4 × USB 3.2 Gen 1 Type-A
• Weight: 11.56 kg
• Certifications: BSMI, CE, FCC (Class B)
• MPN / EAN: 90SF02N1-M000Z0 / 4711081886457

How to use

Install a compatible LGA 1200 processor and DDR4 memory modules according to the motherboard documentation. Populate storage bays and M.2 sockets with HDDs or SSDs as required, connect network cables to the dual Intel Gigabit Ethernet ports, and attach local displays to the HDMI or VGA outputs for monitoring. Configure firmware and security features in BIOS/UEFI, enable TPM 2.0 if needed, and request factory-installed PFR at time of purchase if platform firmware resilience is required. Use ASUS ASMB10-iKVM or ASUS Control Center for out-of-band management, remote BIOS updates and centralized monitoring.

Recommendations

If firmware resiliency is required, order the Platform Firmware Resilience (PFR) module at purchase time because it is factory-fitted and not sold separately. For reliable operation, use quality ECC-capable DDR4 modules where supported by the chosen CPU and configure regular firmware updates to address vulnerabilities. Ensure adequate cooling and verify power draw against the 300 W power supply when populating multiple drives and expansion cards.
