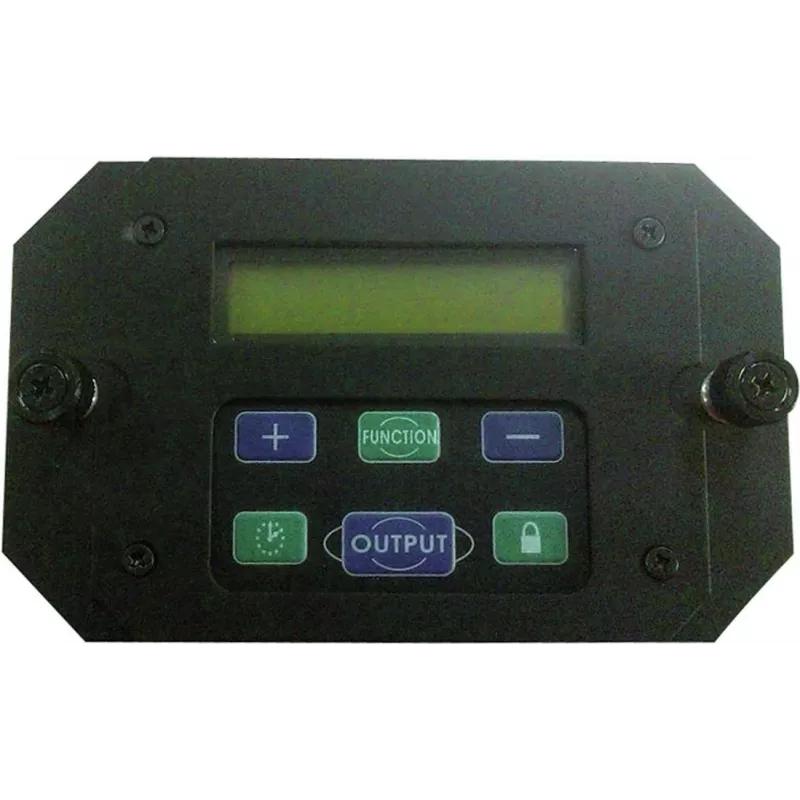

Timer controller EUROLITE LCD-2 (2-channel) model 51701998 with LCD display

EUROLITE LCD-2 (2-channel) timer controller model 51701998 is a compact programmable timer with an LCD display designed to automate two independent switched circuits. The unit provides precise time-based on/off switching for lighting, stage equipment and other electrical loads, allowing repeatable daily or weekly schedules. Its straightforward interface and clear display make it suitable for fixed installations where reliable timed control is required.

Advantages

The LCD display shows current time, program status and channel outputs for easy monitoring. Two independent channels allow separate schedules for different loads without extra hardware. Programmable daily and weekly modes enable flexible timing routines, and the compact housing supports installation in control cabinets or on DIN rails. The device's design focuses on repeatability and predictable switching behaviour for long-term automated operation.

Suitable for

Key specifications

How to use

Set the current time using the front-panel controls, then create switching programs for each channel by specifying on/off times and selecting daily or weekly recurrence. Use the LCD to confirm program entries and check active outputs. For temporary manual control, use the override function to force a channel on or off without altering the stored schedule. Install the unit in a dry, ventilated location and connect the controlled loads according to local electrical standards.

Recommendations

Verify that connected loads are within the controller's switching capacity before installation. Document program settings after configuration and periodically check the clock accuracy and battery (if applicable) to ensure scheduled events occur reliably.
