time lapse camera Brinno BCC2000

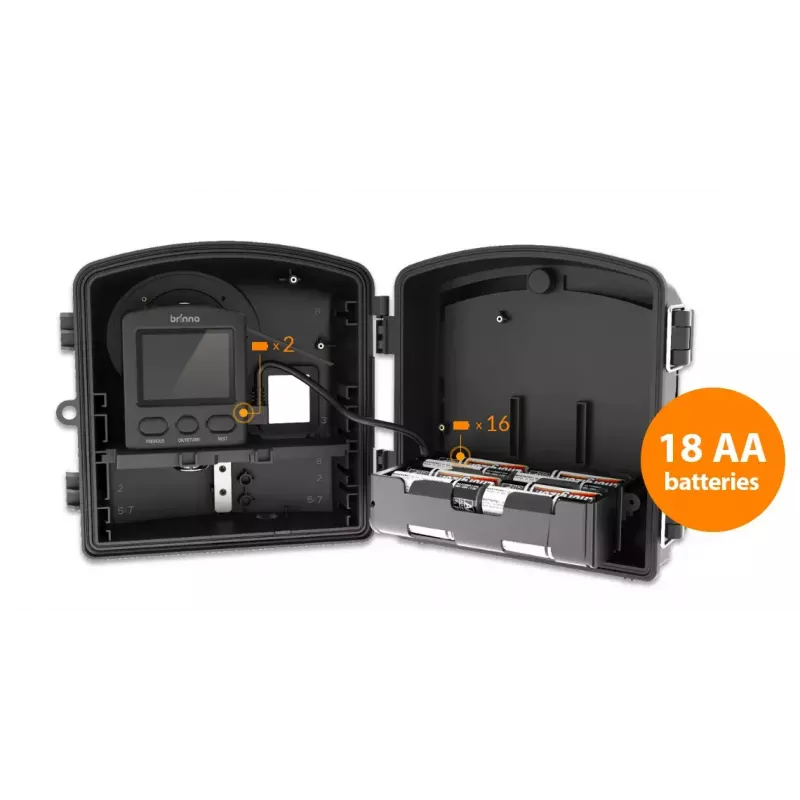

The Brinno BCC2000 time lapse camera bundle includes a Full HD HDR camera, a flexible industrial-grade clamp and an IPX5 weatherproof housing that can hold up to 16 additional AA batteries to extend operating time. The BCC2000 records 1920 x 1080 videos with a 2.1 MP sensor and a wide 118° field of view, making it suitable for documenting construction and long-term projects indoors and outdoors.

Advantages

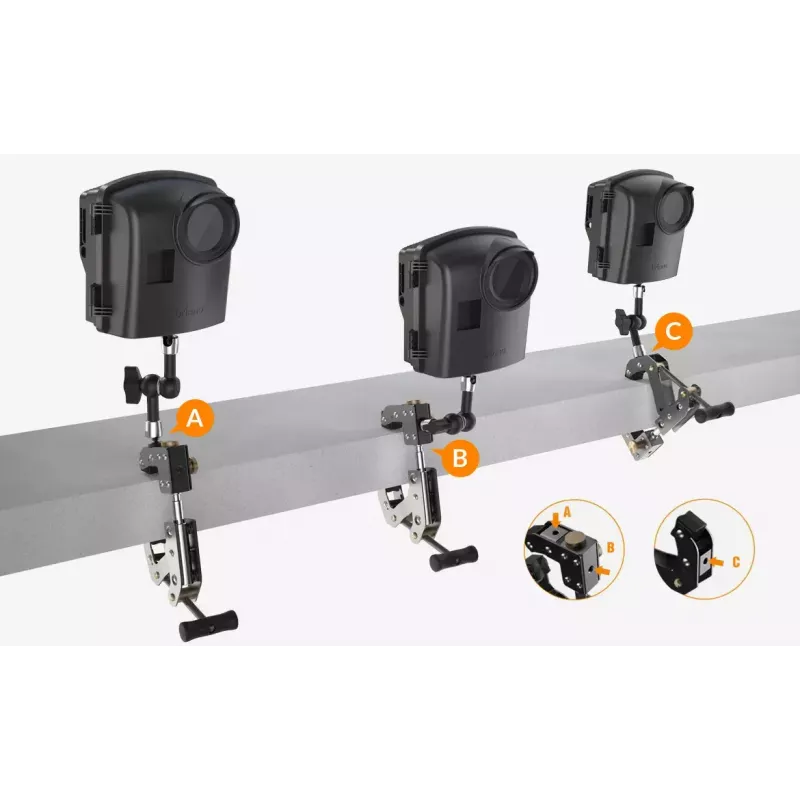

HDR and Full HD imaging deliver sharper recordings with improved contrast for daytime and low-light situations. The IPX5-rated housing provides protection against wind and water spray for outdoor use. Interchangeable CS-mount lenses allow selection of different Brinno zoom optics for more detailed framing. The adjustable industrial clamp secures the camera to a variety of surfaces and the clamp arm offers 360° rotation and 90° tilt for flexible positioning. The camera supports MicroSD cards up to 128 GB and has a built-in LCD for setup and preview.

Suitable for

• Construction site documentation and progress monitoring
• Long-term project recording (renovation, landscaping, infrastructure)
• Outdoor time lapse in various weather conditions
• Indoor time lapse for exhibitions, installations and events

Key specifications

• Sensor: 2.1 MP, Full HD (1920 x 1080)
• Field of view: 118°
• Aperture: fixed 2 mm
• Storage: MicroSD / MicroSDHC / MicroSDXC, up to 128 GB
• Weather resistance: IPX5 (with housing)
• Mount: CS-mount lenses compatible
• Built-in display: Yes
• Weight (bundle): 2.3 kg
• Color: Black

How to use

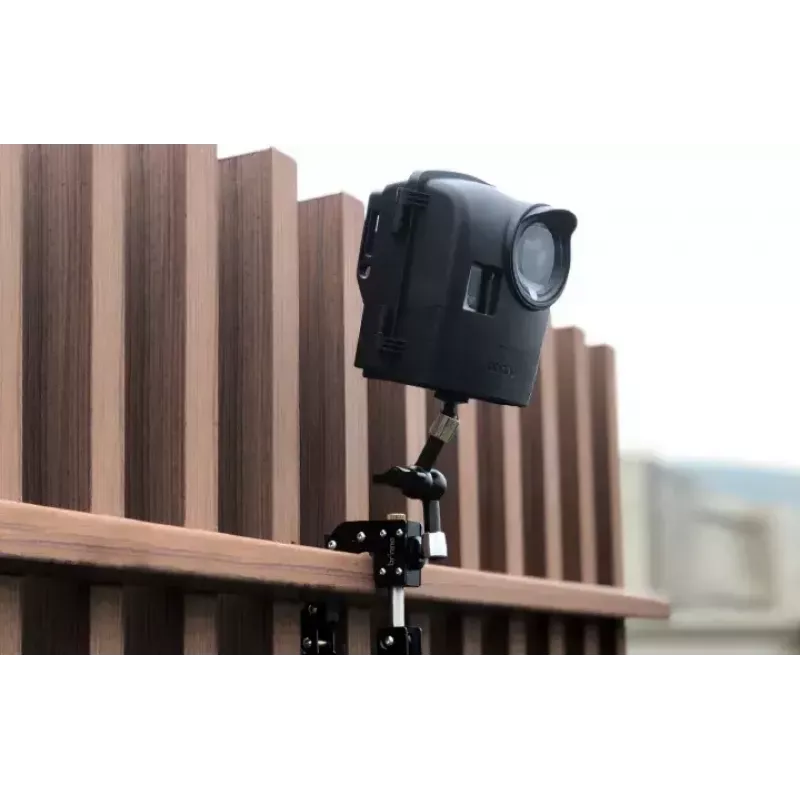

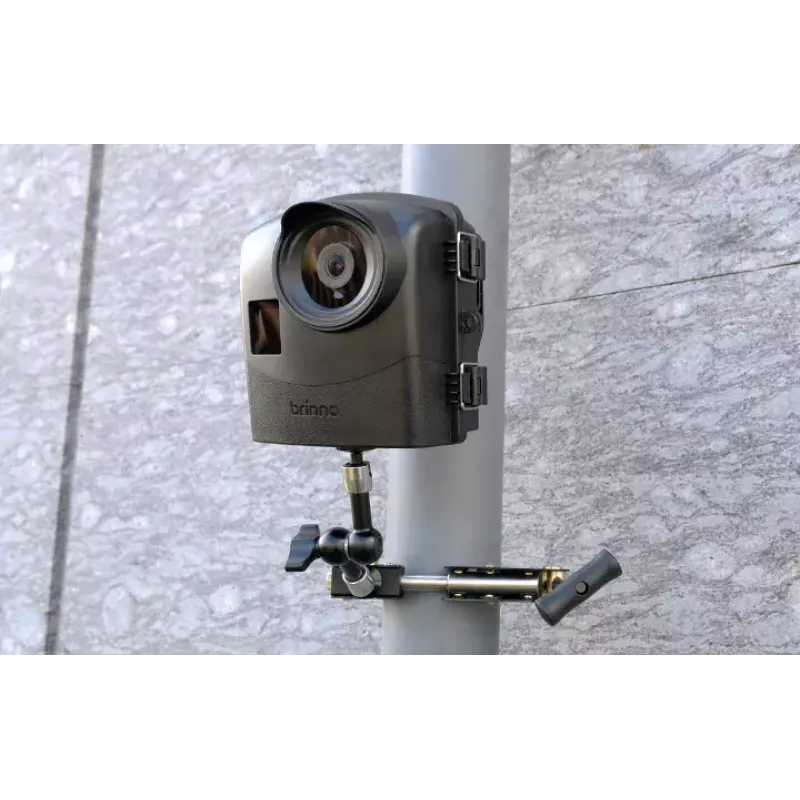

Mount the camera using the adjustable industrial clamp on a stable surface or structure; adjust the clamp opening between 1 mm and 90 mm as required. Choose and attach a CS-mount lens if a different focal length is needed. Insert a supported MicroSD card (up to 128 GB), configure the recording interval and schedule on the built-in LCD, and place the camera in the IPX5 housing for outdoor deployment. Power the camera with standard batteries and add AA batteries in the housing to extend runtime if necessary. The BCC2000 will capture images at the set intervals and convert them into time lapse videos.

Recommendations

For reliable outdoor operation, ensure the IPX5 housing is securely closed and the clamp is mounted to a stable point. Use higher-capacity MicroSD cards for long-term projects and consider adding the extra AA batteries in the housing to maximize recording duration. When detail is important, choose an appropriate Brinno CS-mount lens and position the camera using the 360° rotation and 90° tilt to optimise framing.
