Fan Thermaltake CL-F194-PL12SW-A 12 cm White 65.82 cfm Hydraulic

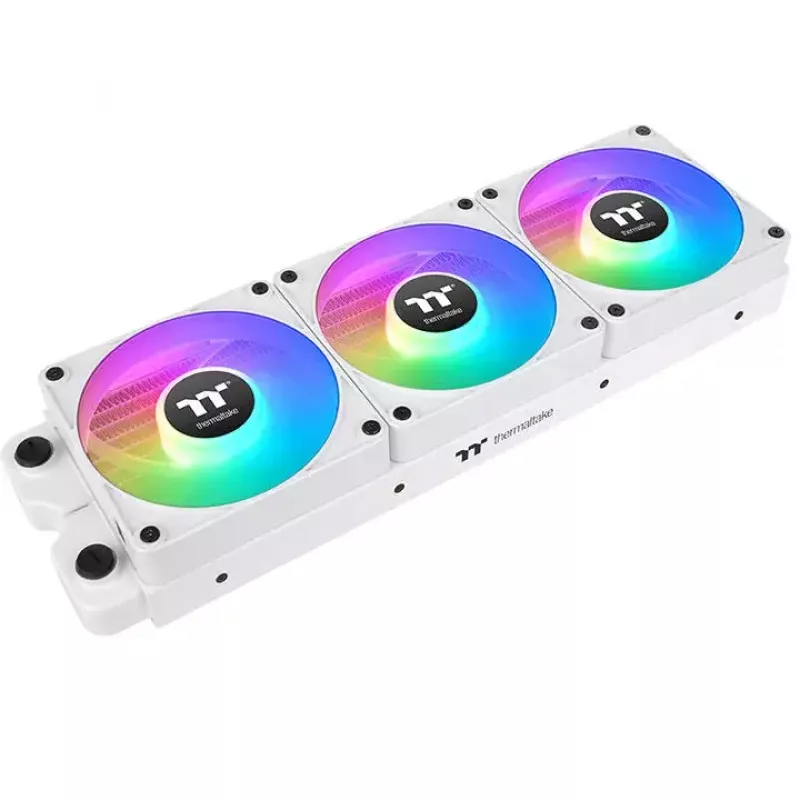

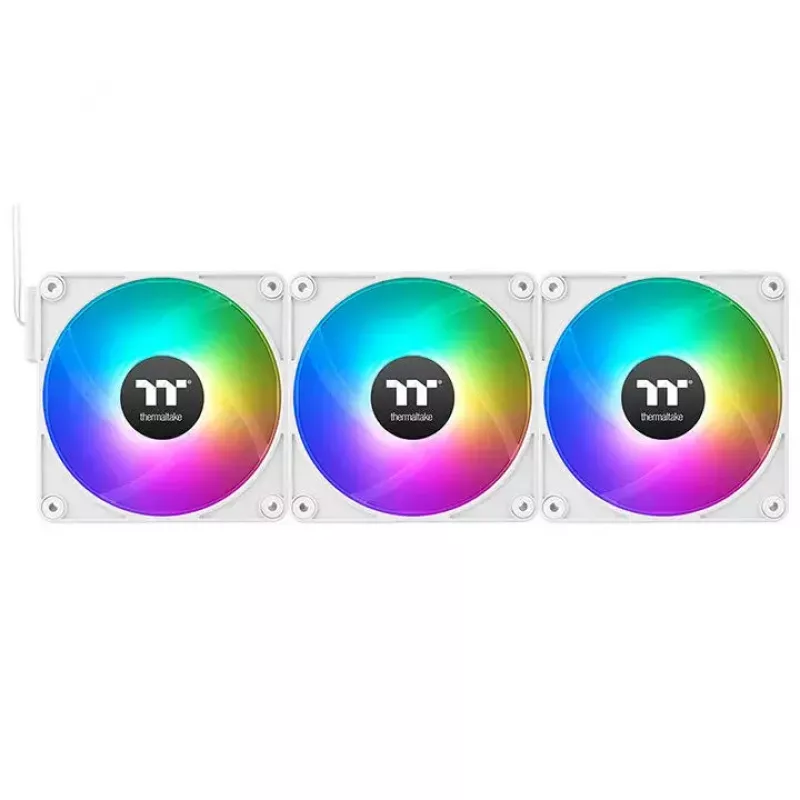

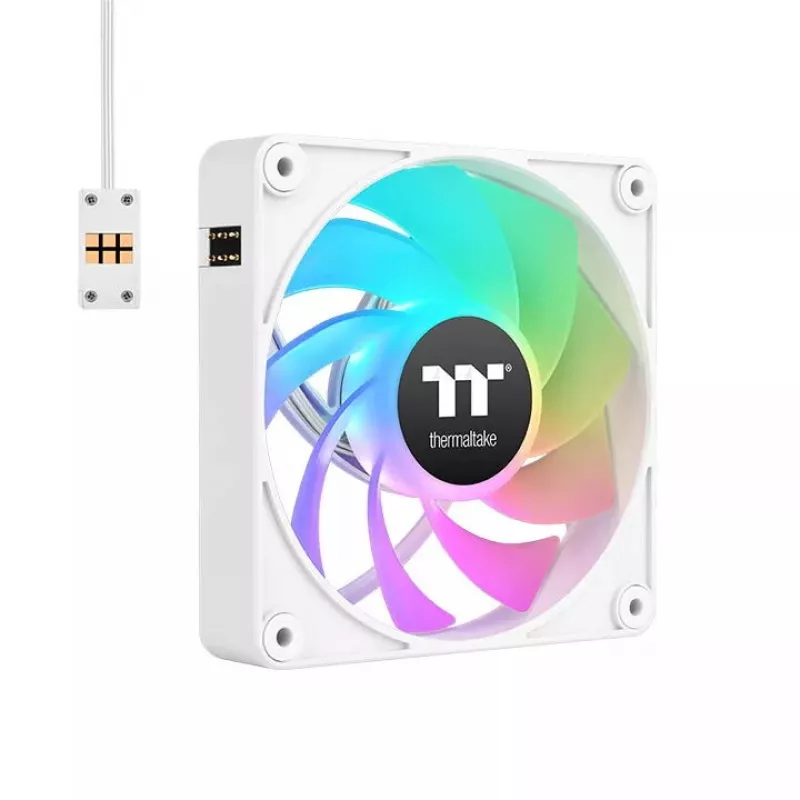

CT120 EX Reverse ARGB Sync White is a 120 mm PC cooling fan from Thermaltake’s CT series featuring the MagForce 2.0 magnetic quick-connect system and reversed fan blades that expose RGB lighting regardless of airflow direction. The fan runs at up to 2000 RPM and provides enhanced cooling performance with 9 addressable LEDs controllable via compatible motherboard RGB software.

Advantages

MagForce 2.0 improves magnetic connection reliability with larger Pogo pin contact pads, making daisy-chaining and cable connections faster and less error-prone. The reversed blade design allows airflow from rear to front while keeping lighting fully visible. The reinforced frame reduces deformation and minimizes gaps between the fan and chassis or radiator, and anti-vibration rubber pads at the corners help dampen vibration for stable operation.

Key specifications

• Model: CT120 EX Reverse ARGB Sync White
• Size: 120 mm
• Maximum speed: 2000 RPM
• Airflow: 65.82 CFM
• Static pressure: 1.87 mm-H2O
• Noise level: 31.2 dBA
• Lighting: 9 addressable LEDs, 16.8 million colors
• RGB control: Requires 5V addressable RGB (ARGB) motherboard header and supported software (ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, ASRock Polychrome)
• Connection: MagForce 2.0 magnetic quick connect

How to use

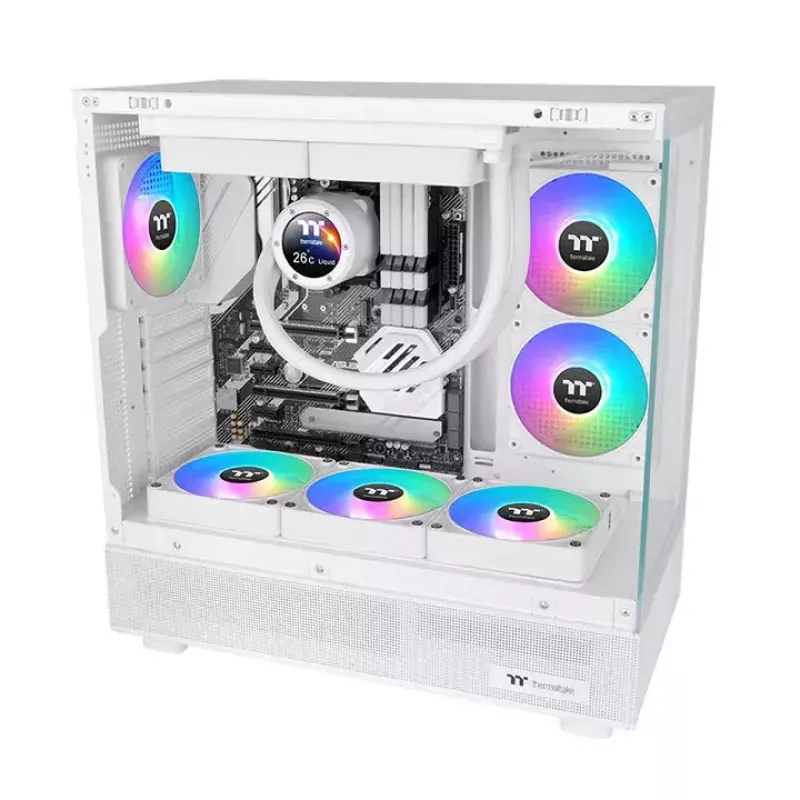

Mount the fan in the desired orientation (note the reversed blades provide lighting visibility with rear-to-front airflow) and secure it to the chassis or radiator using the appropriate screws. Connect the fan power and ARGB connectors to the motherboard headers: the ARGB connector requires a 5V addressable RGB header for lighting control. Use the motherboard vendor’s RGB software (ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light, ASRock Polychrome) to configure and synchronize lighting effects. When daisy-chaining multiple fans, use the MagForce 2.0 magnetic quick-connect feature to link fans together for a cleaner cable layout.

Recommendations

For proper ARGB functionality, ensure your motherboard has a 5V addressable RGB header and is compatible with the listed sync software. Check clearance around the fan to avoid air leaks and verify secure magnetic connections when daisy-chaining multiple CT EX Reverse fans.
