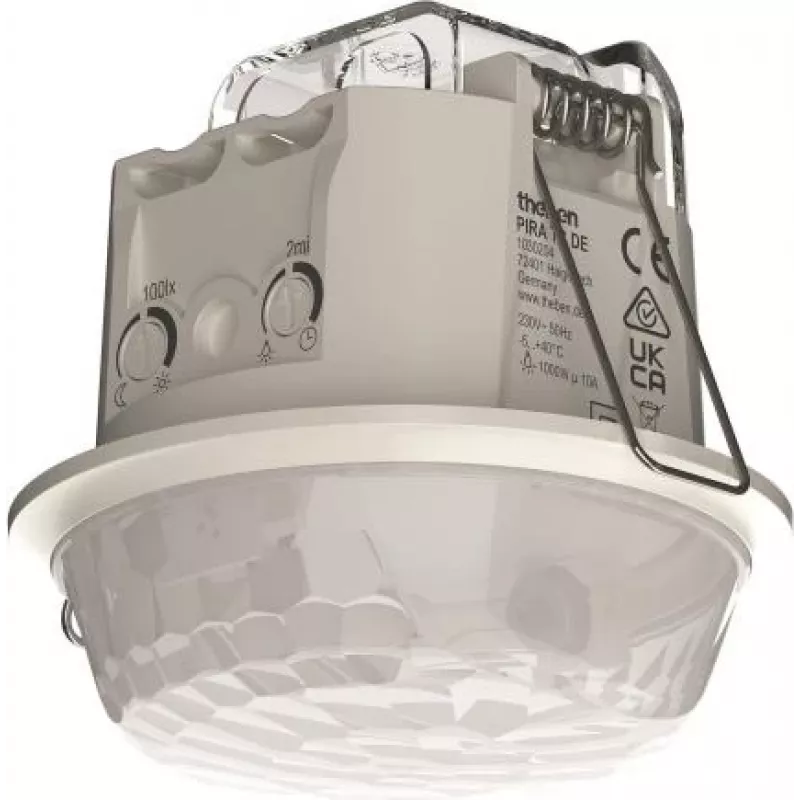

THEBEN THE PIRA TC DE Corridor PIR Motion Detector, Ceiling Mount, 360°, IP54, White

The THEBEN THE PIRA TC DE is a professional PIR presence detector engineered specifically for corridor applications. It combines a discreet ceiling-mounted design with a wide 360° detection field and an extended 30 x 4 m corridor zone, making it an ideal choice for hotels, offices, and public buildings where reliable motion detection is essential.

Highlights

• 360° detection angle with a corridor-specific range of 30 x 4 m at 3 m mounting height
• Flush ceiling mount for clean integration in indoor environments
• Potential-free relay output for switching lighting loads up to 2300 W (incandescent/halogen) or 1150 W (LED > 2W)
• Adjustable brightness threshold (10–2000 lux) and time delay (10 s – 60 min)
• Dust and splash protected to IP54
• White housing fits most ceiling designs

In daily use

Set the desired ambient light level and delay time directly via the built-in potentiometers. For quick commissioning in large projects, the optional theSenda S/P remote control gives you wireless access to all settings without climbing a ladder. The detector works with both incandescent and modern LED lighting, and its low standby power consumption of just 0.5 W helps reduce energy costs.

Full specifications

• Sensor type: Passive Infrared (PIR)
• Mounting: Ceiling flush-mount, recommended height 2.5 – 3 m
• Detection angle: 360°
• Detection area: 30 x 4 m (corridor, at 3 m height)
• Operating voltage: 110 – 240 V AC, 50/60 Hz
• Switching output: 1x light, potential-free relay
• Max. load: 2300 W incandescent/halogen, 1150 W LED (>2W)
• Brightness threshold: 10 – 2000 lux, adjustable
• Time delay: 10 s – 60 min, adjustable
• Protection: IP54
• Ambient temperature: -25 °C to +50 °C
• Power consumption: <0.5 W
• Colour: White
• Control: potentiometers, optional remote control (theSenda S/P)

Final note

The THEBEN THE PIRA TC DE is a robust and energy-efficient solution for corridor lighting control. Its tailored detection pattern and flexible adjustments ensure reliable and convenient operation in commercial and institutional settings.
