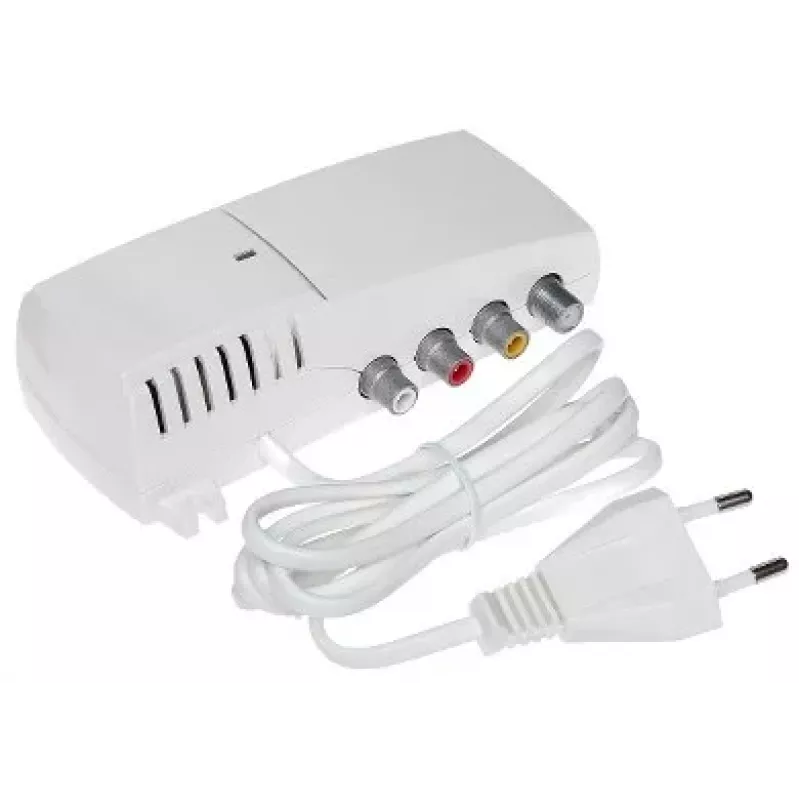

TERRA TV Modulator MT-47

The TERRA TV Modulator MT-47 is a professional-grade RF modulator designed for distributing audio and video signals over coaxial cable networks. It converts composite video and stereo audio inputs into a PAL-modulated RF output, covering VHF and UHF bands from 47 to 862 MHz. Ideal for CCTV, MATV, and small-scale broadcasting applications, this unit features quartz-stabilized frequency control, a built-in test pattern generator, and an antenna loop-through for easy integration.

Advantages

Quartz-stabilized frequency control ensures stable, drift-free operation. The microprocessor-controlled interface with LED display and buttons allows easy channel selection and setup. The built-in test pattern generator simplifies installation and troubleshooting. Antenna loop-through enables daisy-chaining multiple modulators or connecting to an existing antenna system.

Suitable for

• Distributing TV signals in hotels, hospitals, schools, and commercial buildings
• CCTV video distribution over coaxial cable
• Small-scale broadcasting and head-end systems
• Adding local video sources (e.g., cameras, media players) to an RF distribution network

Key specifications

• Input: 3x RCA (Video, Audio L, Audio R)
• Output: 1x RF Coaxial (F-type)
• Modulation Standard: PAL B/G, D/K, I, L (selectable)
• Output Frequency Range: 47-862 MHz
• Output Channels: VHF (S03-S38), UHF (21-69)
• RF Output Level: 85 dBµV
• Video Input Level: 1 Vpp (75 Ohm)
• Audio Input Level: 0.775 Vrms (10 kOhm)
• Frequency Control: Quartz Stabilized
• Control Method: Microprocessor with LED Display and Buttons
• Power Supply: 230V AC, 50Hz
• Power Consumption: 3 W
• Antenna Loop-Through: Yes (RF IN/OUT)
• Test Pattern Generator: Yes
• Video Encoding: PAL
• Channel Selection: Digital
• Operating Temperature: 0°C to +40°C
• Housing Material: Plastic

Recommendations

For optimal performance, use high-quality RG6 coaxial cables and F-type connectors. Ensure the output channel is not occupied by a strong broadcast signal to avoid interference. The modulator is designed for indoor use only; avoid exposure to moisture or extreme temperatures.
