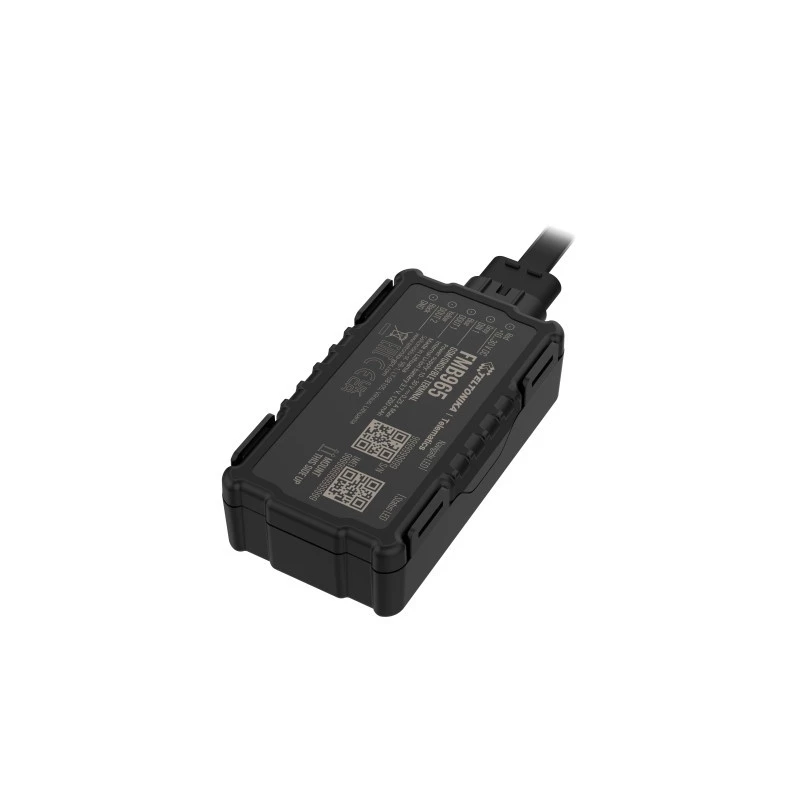

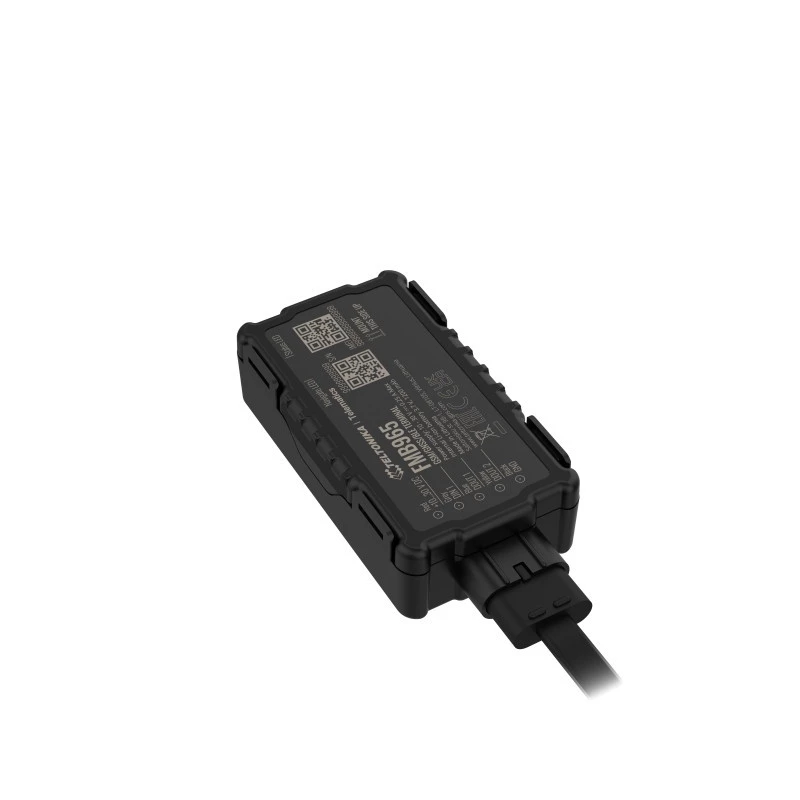

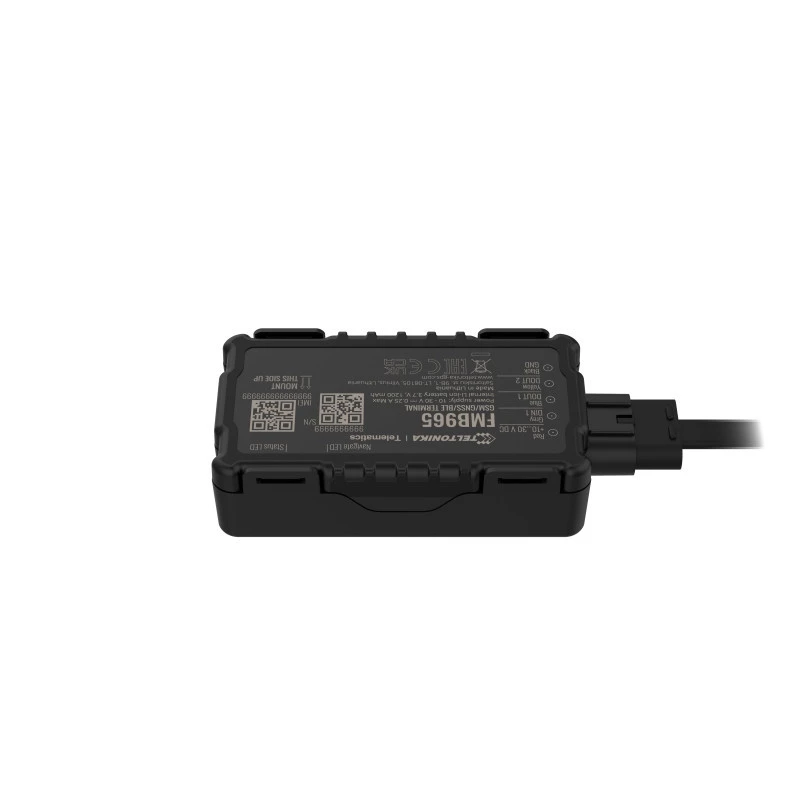

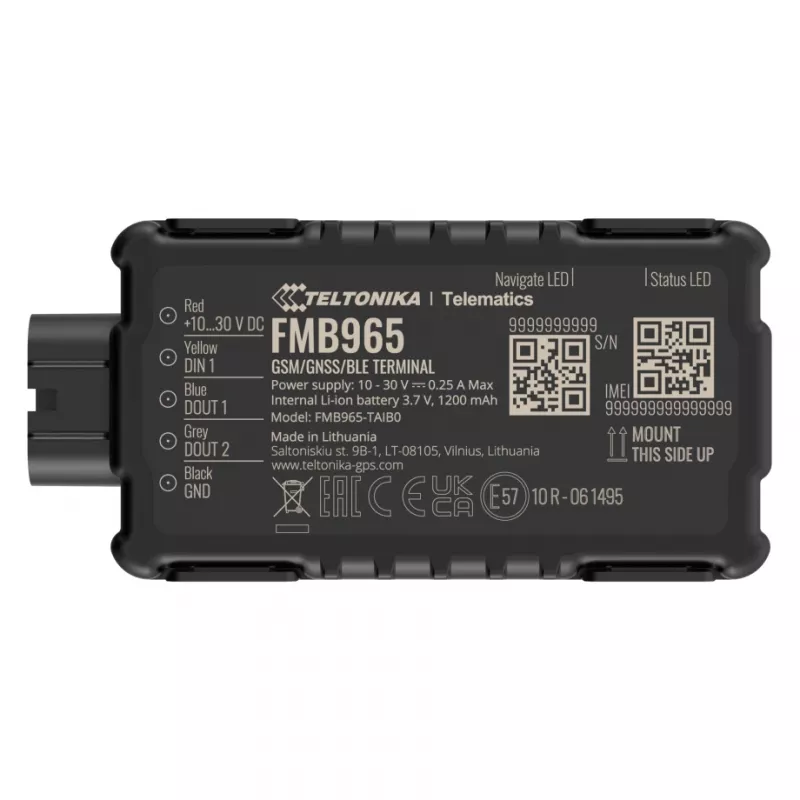

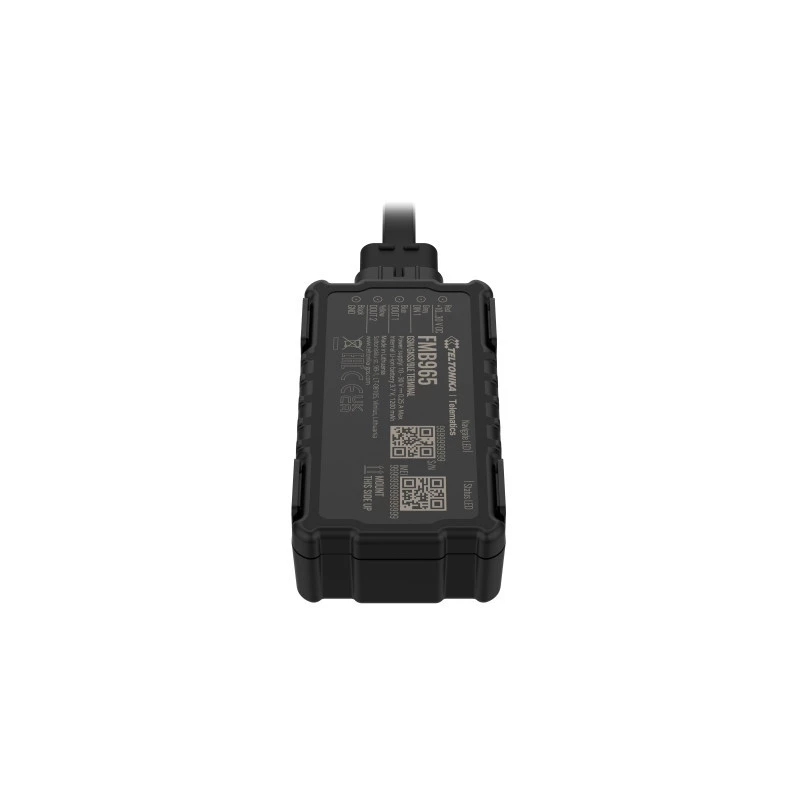

Teltonika FMB9653E8T01 GPS/GSM Car Tracker with 1200mAh Battery

The Teltonika FMB9653E8T01 is a high-performance GPS/GSM car tracker designed for professional fleet management and vehicle security. Featuring a powerful 1200mAh internal battery and quad-band GSM connectivity, this device ensures reliable tracking and real-time data transmission even in challenging environments. With support for multiple GNSS constellations including GPS, GLONASS, Galileo, and BeiDou, it delivers precise positioning and fast time-to-first-fix.

Advantages

This tracker offers exceptional versatility with 2 digital inputs (1 reserved for ignition), 1 digital output for remote immobilization, and 1 analog input (0-30V range). The built-in accelerometer enables advanced features such as crash detection, towing detection, and green driving analysis. Its IP54-rated housing protects against dust and water splashes, making it suitable for harsh conditions. The internal memory stores up to 100,000 records, ensuring data integrity even during network outages.

Suitable for

• Fleet management and logistics
• Vehicle security and anti-theft systems
• Personal car tracking and monitoring
• Commercial vehicle operations

Key specifications

• GNSS: GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, DGPS, AGPS
• GSM: Quad-band 850/900/1800/1900 MHz
• Internal battery: 170 mAh Li-Ion (3.7 V) with 1200mAh external backup
• External power: 6-30 V DC
• Digital inputs: 2 (1 ignition, 1 configurable)
• Digital output: 1 (remote immobilization)
• Analog input: 1 (0-30V)
• Accelerometer: Yes
• Internal memory: 128 MB (up to 100,000 records)
• Operating temperature: -40 °C to +85 °C
• Protection class: IP54
• Antennas: Internal GSM and GNSS
• SIM card: Micro-SIM
• Tracking sensitivity: -165 dBm
• Data transmission: GPRS Class 12, TCP/UDP
• Key features: Geofencing, crash detection, towing detection, green driving, over speeding detection, jamming detection
• LED indicators: 2 (Status, GNSS)

Recommendations

For optimal performance, use a reliable M2M SIM card with GPRS data plan. Ensure proper installation with secure mounting and connection to vehicle power. Regularly update firmware via Teltonika's configuration tool to access latest features and improvements.
