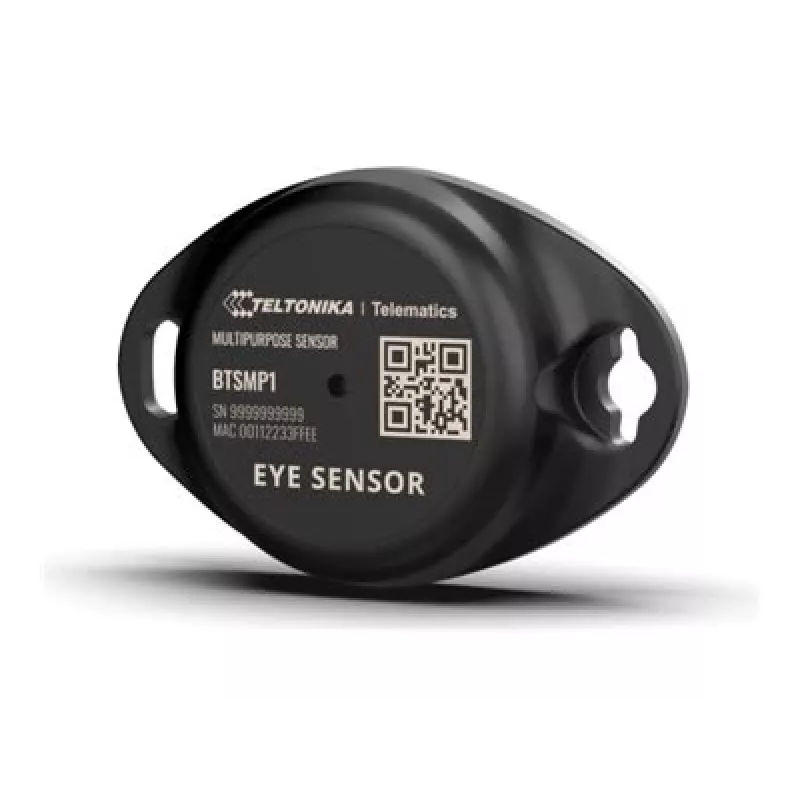

Teltonika EYE SENSOR BLE Temperature Humidity Movement Magnet Sensor

Monitoring environmental conditions and physical state in remote or mobile assets is a constant challenge for fleet managers and logistics operators. The Teltonika EYE SENSOR solves this by combining temperature, humidity, movement, and magnet detection into a single rugged Bluetooth sensor that pairs seamlessly with Teltonika FMB series trackers or any BLE gateway.

Who is it for

This sensor is built for cold chain logistics, warehousing, equipment monitoring, and security applications where real-time alerts on temperature excursions, door openings, or unexpected movement are critical. It suits businesses that need reliable, low-maintenance wireless sensing without complex installation.

Main features

• Monitors temperature from -30°C to +85°C with ±0.5°C accuracy
• Measures relative humidity from 0% to 100% RH with ±4% RH accuracy
• Detects movement and tilt via a 3-axis accelerometer
• Magnetometer senses door/window open or close events
• Bluetooth Low Energy 4.0+ with up to 200 m range in open field
• Replaceable CR2032 battery lasts up to 10 years depending on broadcast interval
• IP67-rated ABS housing withstands dust and water immersion
• Easy configuration via Teltonika Configurator App for Android/iOS
• Flexible mounting with adhesive tape or screws
• CE, FCC, RoHS, REACH certified

Specifications

• Connectivity: Bluetooth Low Energy (BLE) 4.0+
• Sensor types: Temperature, humidity, accelerometer, magnetometer
• Temperature range: -30 °C to +85 °C
• Temperature accuracy: ±0.5 °C (typical)
• Humidity range: 0% to 100% RH
• Humidity accuracy: ±4% RH (typical)
• Accelerometer: 3-axis, detects movement and tilt
• Magnetometer: Detects door/window open/close events
• Battery: Replaceable CR2032, up to 10 years life
• Ingress protection: IP67
• Wireless range: Up to 200 m (open field)
• Configuration: Teltonika Configurator App (Android/iOS)
• Mounting: Adhesive tape or screws
• Housing: ABS plastic
• Certifications: CE, FCC, RoHS, REACH

Tips

For optimal battery life, adjust the broadcast interval to the longest acceptable for your application. Mount the sensor away from metal surfaces to maximize wireless range. Use the magnetometer for door monitoring by placing the sensor on the frame and a magnet on the door.
