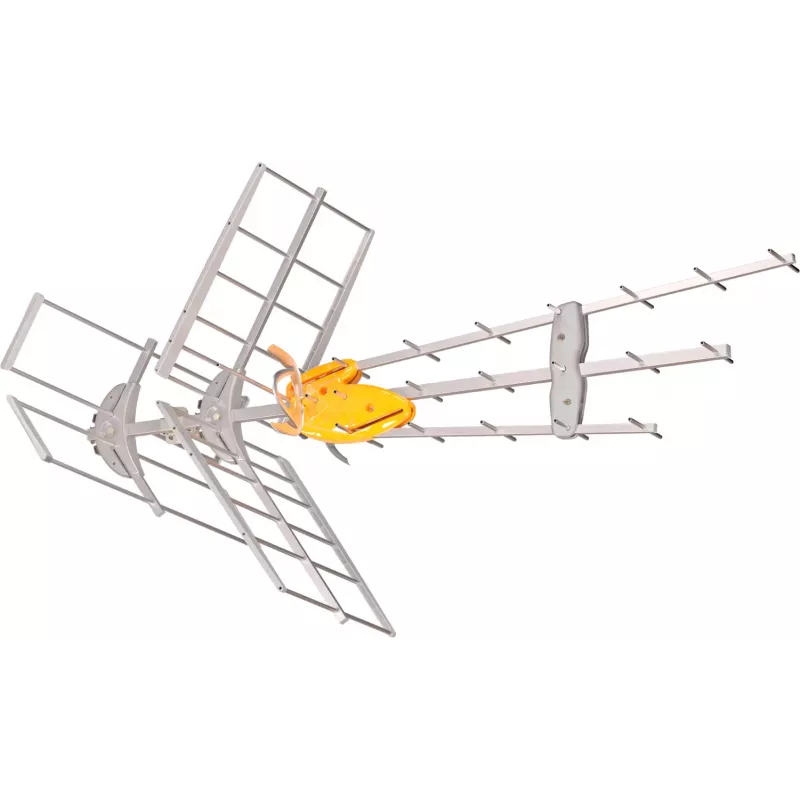

TELEVES DAT BOSS 700 MIX T-Force Directional Outdoor Antenna (34178)

The TELEVES DAT BOSS 700 MIX T-Force is a high-performance directional outdoor antenna designed for reliable reception of VHF (Band III) and UHF (Band IV-V) signals. Featuring advanced BOSS technology and T-Force design, it delivers exceptional gain and filtering up to LTE/5G C48 (694 MHz), ensuring interference-free digital TV reception.

Advantages

This antenna combines a compact Yagi design with powerful BOSS mode amplification, providing up to 30 dBi gain on VHF and 45 dBi on UHF. Its integrated LTE/5G filter eliminates unwanted interference, while the robust outdoor construction withstands wind loads up to 120 N. The antenna is powered via coaxial cable (12-24 Vdc) and includes an F-type connector for easy installation.

Suitable for

• Digital terrestrial TV reception (DVB-T/T2) in areas with weak or mixed signals
• Outdoor installations requiring high gain and low noise figure
• Users needing future-proof filtering up to 694 MHz (LTE/5G)

Key specifications

• Antenna Type: Directional Yagi
• Frequency Bands: VHF (174-223 MHz), UHF (470-694 MHz)
• Passive Gain: 8.5 dBi (VHF), 15 dBi (UHF)
• BOSS Mode Gain: 30 dBi (VHF), 45 dBi (UHF)
• Max Output Level (BOSS Mode): 105 dBµV (VHF), 115 dBµV (UHF)
• Noise Figure: 2.5 dB
• Impedance: 75 Ω
• Power Supply: 12-24 Vdc via coaxial cable
• Current Consumption: 47 mA
• Connector: F-type
• Polarization: Horizontal / Vertical
• Wind Load (130 km/h): 120 N
• Technology: BOSS Tech, T-Force
• Application: Outdoor

Recommendations

For optimal performance, mount the antenna outdoors with a clear line of sight to the transmitter. Use a compatible power inserter (not included) to supply 12-24 Vdc via the coaxial cable. Ensure proper grounding to protect against lightning.
