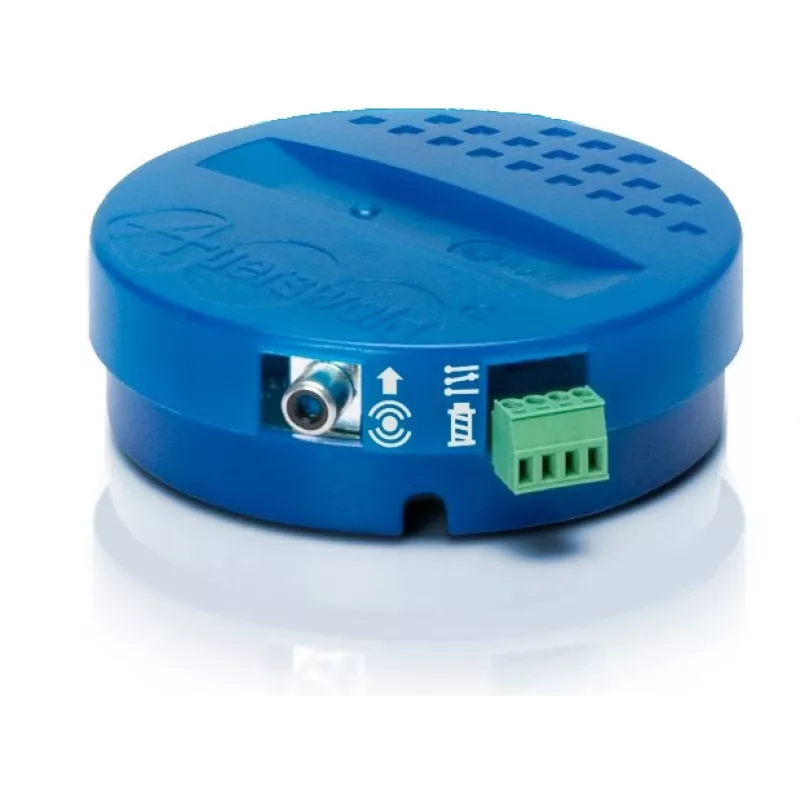

Telephone switching equipment Auerswald 90698 Blue

The Auerswald 90698 Blue telephone switching equipment is a compact module designed to integrate with existing telephone and communication installations. With a slim profile and lightweight construction, the unit occupies minimal space while providing the basic switching functionality required in small office or home telephony setups. The product is supplied as a single module in a blue enclosure and is intended for installation where a discreet, space-saving switching device is required.

Advantages

The device combines a narrow footprint with low weight to simplify mounting and reduce the space required inside distribution cabinets or on device racks. Its compact dimensions make it suitable for installations where horizontal space is limited. The straightforward single-unit supply reduces inventory complexity and supports quick replacement or addition to existing systems.

Suitable for

• Small offices and home telephony systems
• Communication racks or compact distribution enclosures
• Retrofit or expansion of existing telephone switching setups

Key specifications

• Width: 90 mm
• Depth: 33 mm
• Weight: 90 g
• Color: blue
• Sold as: single unit

How to use

Mount the unit within the communication cabinet or on a flat surface that supports its compact size. Connect input and output telephone lines according to the site's wiring diagram and local installation standards. Ensure power and grounding requirements of the broader telephone system are met before placing the unit into service. After physical installation and wiring, verify line continuity and switching operation with standard telephony test procedures.

Recommendations

Install the module in an environment protected from direct moisture and excessive heat. Use appropriate cable management to avoid strain on connectors and keep the unit accessible for maintenance. For integration into complex systems, consult the system wiring plan and, if necessary, a qualified installer to ensure compatibility with other telephony equipment.
