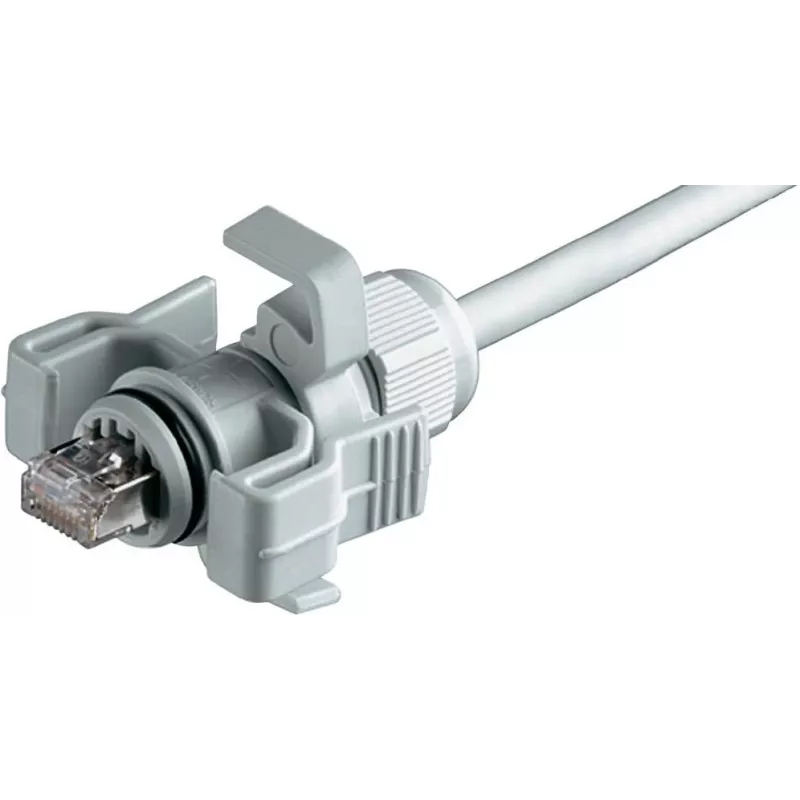

TELEGÄRTNER RJ45 Plug Cat.6A IP67 Field-Terminable Shielded Connector, UL94 V-0, 1 pc J00026A0150

Industrial Ethernet installations demand reliable connectivity even under extreme conditions. The TELEGÄRTNER J00026A0150 RJ45 plug solves the challenge of terminating Cat.6A cables in the field without special tools, while providing IP67 protection against dust and moisture when mated with a compatible IP67 jack. Its die-cast zinc housing and UL94 V-0 flame rating ensure mechanical robustness and fire safety in harsh environments.

Who is it for

This connector is ideal for system integrators, network installers, and maintenance technicians working in industrial automation, transportation, outdoor infrastructure, or any application where Ethernet links must withstand vibration, temperature extremes, and exposure to liquids or dust. It suits both solid and stranded conductors, making it versatile for structured cabling and patch cord assembly.

Main features

• Tool-free IDC termination for fast, reliable field assembly
• IP67 ingress protection when paired with an IP67 jack
• Shielded design (FTP/STP) for excellent EMI performance
• UL94 V-0 flame-retardant housing for enhanced fire safety
• Supports Power over Ethernet up to 4PPoE (IEEE 802.3bt)

Specifications

• Connector type: RJ45 plug, 8P8C
• Performance category: Cat.6A / Class EA (ISO/IEC 11801)
• Frequency range: up to 500 MHz
• Shielding: shielded (FTP/STP)
• Termination: tool-free IDC, field-terminable
• Conductor compatibility: AWG 24/1 – 22/1 (solid), AWG 27/7 – 22/7 (stranded)
• Cable diameter: 5.0 – 9.0 mm
• Housing material: die-cast zinc
• Contact plating: gold (min. 50 µm over nickel)
• Mating cycles: ≥ 750
• Operating temperature: -40 °C to +70 °C
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Tips

For a complete IP67 link, use this plug with a TELEGÄRTNER IP67 jack or coupler. Ensure the cable outer diameter falls within the specified range to maintain the seal. The tool-free IDC termination reduces installation time and eliminates the need for crimping tools, making it perfect for on-site repairs and upgrades.
