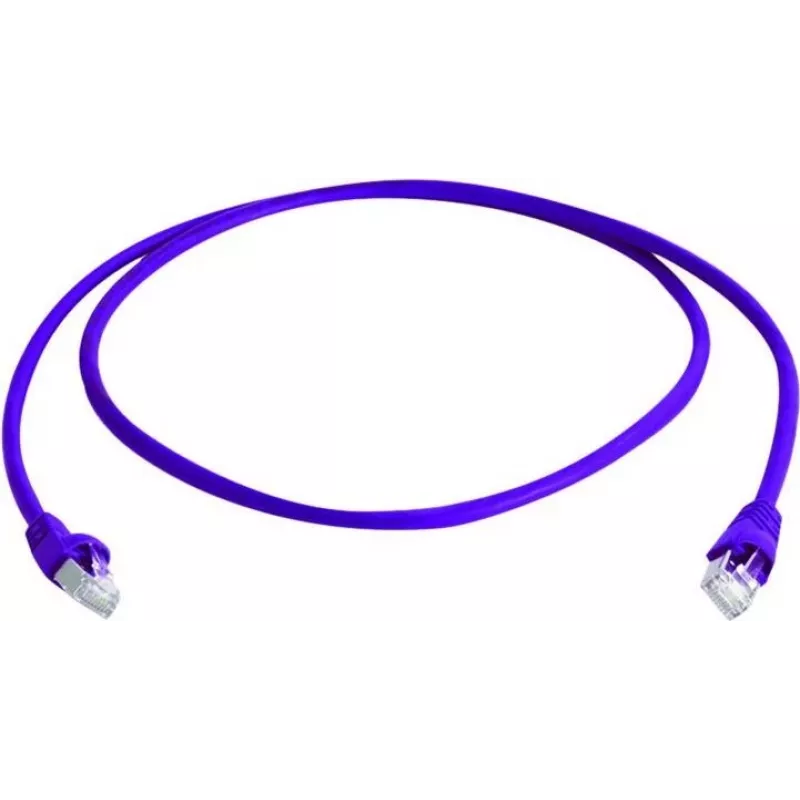

Telegärtner MP8 FS 500 CAT 6a S/FTP Patch Cable, RJ-45 Male to RJ-45 Male, 0.25 m, Violet, Snagless Boot, 10 Gbps, 500 MHz L00000A0237

The Telegärtner MP8 FS 500 sets itself apart with a stranded copper conductor and snagless boot, ensuring both flexibility and long-term connector protection in high-density patching environments. This 0.25 m violet patch cable is engineered for 10 Gigabit Ethernet, delivering a 500 MHz bandwidth over S/FTP shielding to suppress alien crosstalk and EMI. Gold-plated contacts and TIA/EIA-568B wiring guarantee consistent, low-loss connections for data centers, office networks, and PoE applications up to 4PPoE.

Highlights

• CAT 6a performance with 500 MHz bandwidth for 10GBASE-T
• S/FTP shielding: foil around each pair plus overall braid for maximum noise immunity
• Stranded copper conductors for flexibility and easy routing in tight spaces
• Snagless boot protects the locking tab during frequent moves, adds, and changes
• Supports PoE, PoE+, and 4PPoE for powering devices over the same cable

In daily use

At just 25 cm, this cable is ideal for patching between adjacent ports on a patch panel or switch, reducing excess slack and improving airflow. The violet jacket makes it easy to color-code network segments or identify specific VLANs. The snagless boot prevents accidental disconnections when pulling cables through cable managers, while the gold-plated contacts resist corrosion and maintain signal integrity over thousands of mating cycles.

Full specifications

• Brand: Telegärtner
• Model: MP8 FS 500
• MPN: L00000A0237
• EAN: 4018359378905
• Cable length: 0.25 m
• Cable type: Ethernet patch cable
• Cable standard: CAT 6a
• Cable shielding: S/FTP
• Connector 1: RJ-45 male
• Connector 2: RJ-45 male
• Conductor material: Copper
• Conductor construction: Stranded
• Jacket material: PVC
• Colour: Violet
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Wiring standard: TIA/EIA-568B
• Contact plating: Gold
• PoE support: PoE, PoE+, 4PPoE
• Features: Snagless boot

Final note

When every decibel of headroom matters, the MP8 FS 500 delivers certified CAT 6a performance in a compact, rugged form factor that installers trust.
