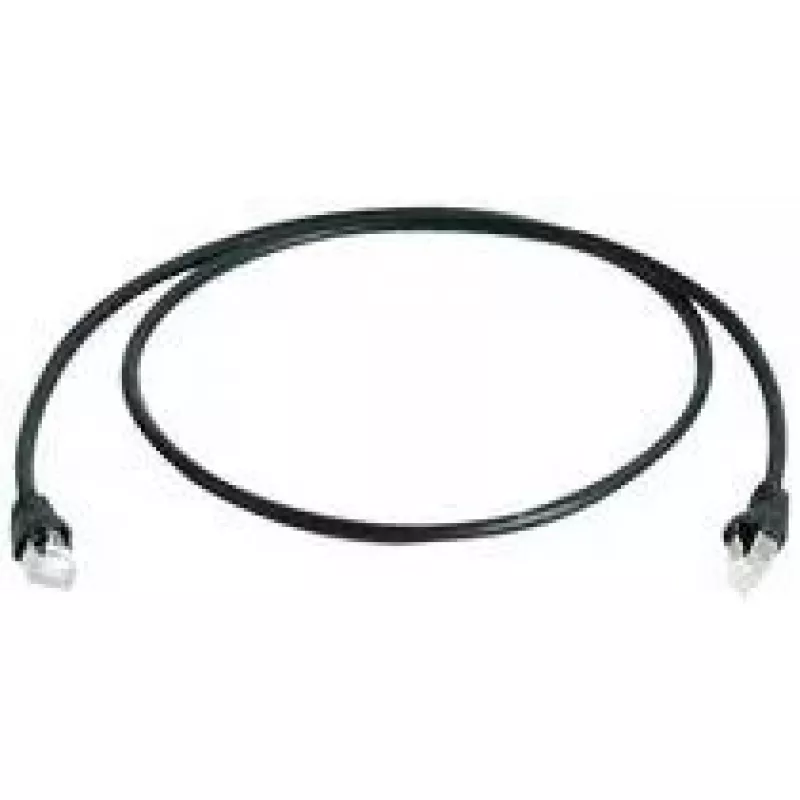

Patch Cord Telegärtner MP8 FS 600 LSZH 1.0m Black

The Telegärtner Patch Cord MP8 FS 600 LSZH 1.0m in black is a shielded networking patch cord designed for reliable high-speed data transmission. Constructed with a PiMF (pairs in metal foil) cable structure and dual overall shielding (aluminium foil and tin-plated copper braid), the cable offers reduced electromagnetic interference. The outer jacket is made from low smoke zero halogen (LSZH) material to limit harmful emissions in case of fire. The cord is terminated to industry connector standards and rated for more than 750 mating cycles.

Advantages

The cable combines PiMF pair configuration with both aluminium-foil and tin-plated copper braid overall shielding for enhanced signal integrity. Its AWG 27 stranded conductors (7x0.14 mm) with PE insulation provide flexibility and reliable contact performance. The LSZH outer jacket minimizes toxic and corrosive gas release under thermal stress. The product is color-coded to ISO/IEC 11801 standards for consistent identification.

Suitable for

• Patch panels and switch-to-equipment connections in LANs
• High-density racks and structured cabling installations
• Environments requiring reduced smoke and halogen emissions

Key specifications

• Length: 1.0 m
• Wire gauge and structure: AWG 27 stranded (7x0.14 mm), Li02YSCH 4x2x AWG 27/7 PiMF
• Insulation material and diameter: PE, Ø 1.04 ±0.05 mm
• Overall shielding: aluminium foil (outside conducting) and tin-plated copper braid
• Outer jacket diameter: 5.7 ±0.2 mm
• Durability (mating cycles): > 750
• Colour: Black (colour code: ISO/IEC 11801)
• Material: LSZH outer jacket

How to use

Connect one end of the patch cord to the network port on your switch, patch panel or network device and the other end to the corresponding port on the target equipment. Ensure connectors are fully seated until a positive engagement is felt. Route the cable to avoid sharp bends and excessive tensile stress; maintain bend radius consistent with the cable diameter. For structured installations, follow your site’s cabling scheme and color-coding based on the ISO/IEC 11801 standard.

Recommendations

Store and install the cord in dry conditions and avoid exposure to solvents or strong mechanical abrasion. For best performance, do not exceed the recommended bend radius and limit repeated mating cycles where possible to prolong connector life.
