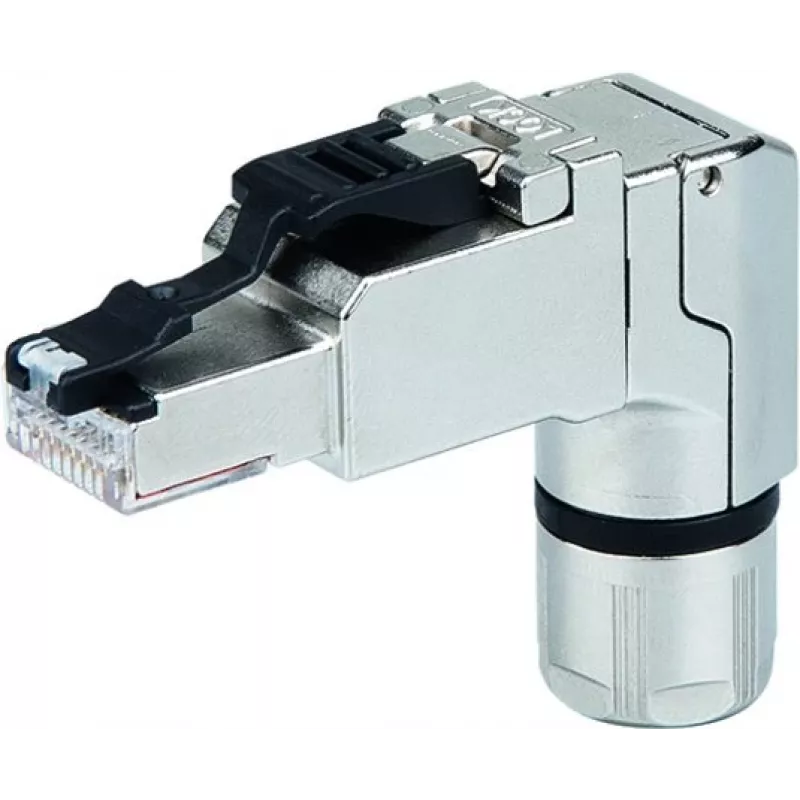

Telegärtner J00026A4114 RJ45 Cat6A Stainless Steel Shielded Field-Terminable Plug T568A

The Telegärtner J00026A4114 is a high-performance RJ45 plug designed for Cat6A applications, featuring a robust stainless steel housing for durability in industrial and harsh environments. This field-terminable, tool-free IDC connector supports both solid and stranded conductors, ensuring reliable data transmission up to 500 MHz. It is compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards, and supports PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt).

Advantages

Tool-free termination saves installation time and reduces errors. The stainless steel housing provides superior mechanical strength and corrosion resistance. Reusable up to 4 times, lowering total cost of ownership. Supports a wide cable diameter range (5.0-9.0 mm) for versatile use.

Suitable for

• Data centers requiring high-speed Cat6A connectivity
• Industrial environments with demanding conditions
• Office networks needing reliable, shielded connections
• PoE applications including cameras, access points, and IoT devices

Key specifications

• Connector Type: RJ45 Plug
• Performance Category: Cat.6A (up to 500 MHz)
• Wiring Standard: T568A
• Shielding: Shielded (STP)
• Housing Material: Stainless Steel
• Contact Material: Phosphor Bronze, gold-plated
• Number of Positions: 8P8C
• Termination Type: Field-terminable, tool-free IDC
• Conductor Gauge (Solid): AWG 24/1 - AWG 22/1
• Conductor Gauge (Stranded): AWG 27/7 - AWG 22/7
• Cable Diameter Range: 5.0 mm - 9.0 mm
• PoE Support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Operating Temperature: -40°C to +70°C
• Mating Cycles: ≥ 750
• Reusability: Up to 4 times
• Packaging: Retail Blister Pack

Recommendations

For optimal performance, use with Cat6A shielded cable and ensure proper grounding. Suitable for both solid and stranded conductors within the specified gauge range.
