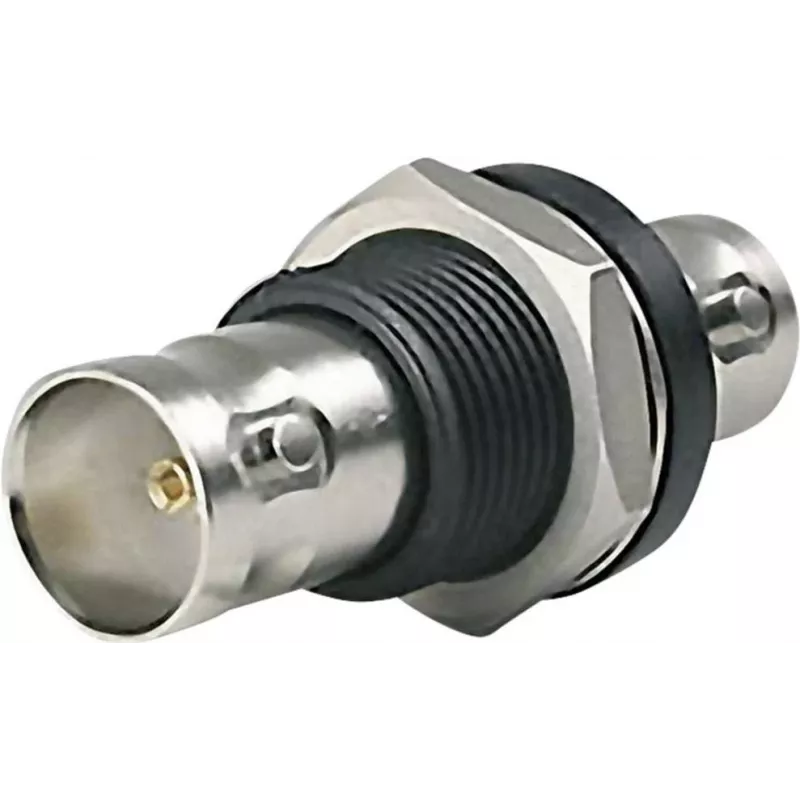

Telegärtner BNC Bulkhead Adapter Female to Female 50 Ohm Panel Mount, Nickel-Plated Brass, DC-4 GHz

In professional RF installations, passing a BNC connection through a panel or enclosure often requires a reliable, low-loss transition. This Telegärtner bulkhead adapter provides a secure female-to-female BNC interface, enabling clean cable routing through walls, chassis, or patch panels without signal degradation.

Who is it for

Network engineers, broadcast technicians, and RF installers who need to extend BNC connections through panels or create test points in 50-ohm systems. Ideal for video, instrumentation, and telecommunications applications up to 4 GHz.

Main features

• BNC female (jack) to BNC female (jack) bulkhead feed-through
• 50 Ω impedance for standard RF and video systems
• Nickel-plated brass body with gold-plated center contacts
• PTFE insulator ensures stable performance across -55 °C to +155 °C

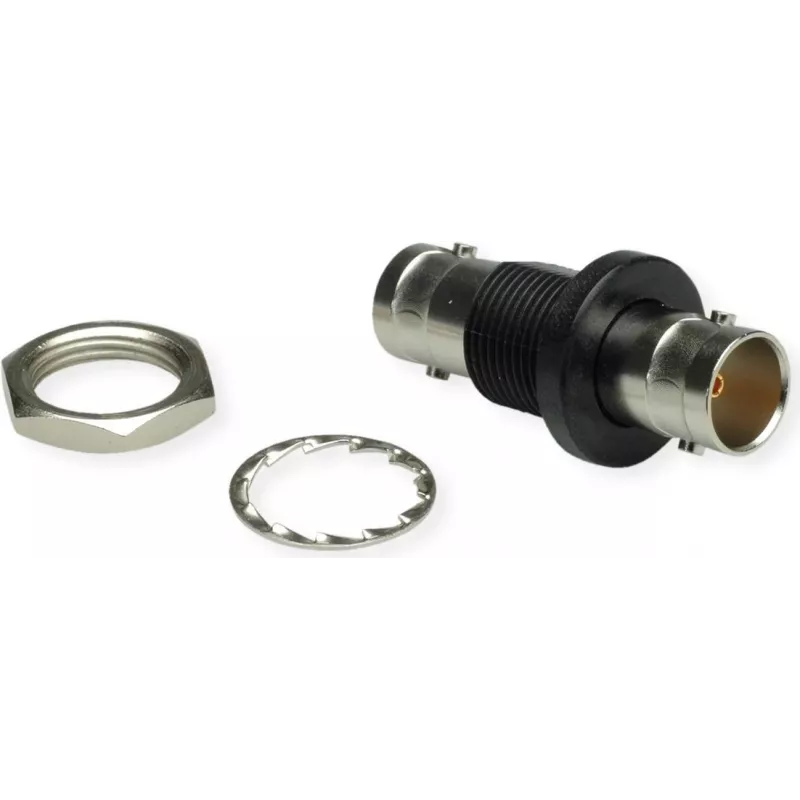

• M12 x 0.75 mounting thread for secure panel installation
• Low VSWR ≤ 1.3 at 4 GHz and high mating cycle durability (≥500)

Specifications

• Connector series: BNC
• Connector type (side 1): BNC female (jack)
• Connector type (side 2): BNC female (jack)
• Impedance: 50 Ω
• Mounting type: Bulkhead / panel mount
• Mounting thread: M12 x 0.75
• Frequency range: DC to 4 GHz
• VSWR at 4 GHz: ≤ 1.3
• Contact material: Brass, gold over nickel plating
• Body material: Brass, nickel plating
• Insulator material: PTFE
• Dielectric withstanding voltage: 1500 Veff
• Insulation resistance: ≥ 5 GΩ
• Contact resistance (center): ≤ 1.5 mΩ
• Contact resistance (outer): ≤ 1 mΩ
• Operating temperature: -55 °C to +155 °C
• Mating cycles: ≥ 500
• RoHS compliant

Tips

Ensure the panel cutout matches the M12 x 0.75 thread. For best performance, use with 50-ohm BNC cables and connectors. The nickel-plated body offers corrosion resistance, making it suitable for indoor and protected outdoor environments.
