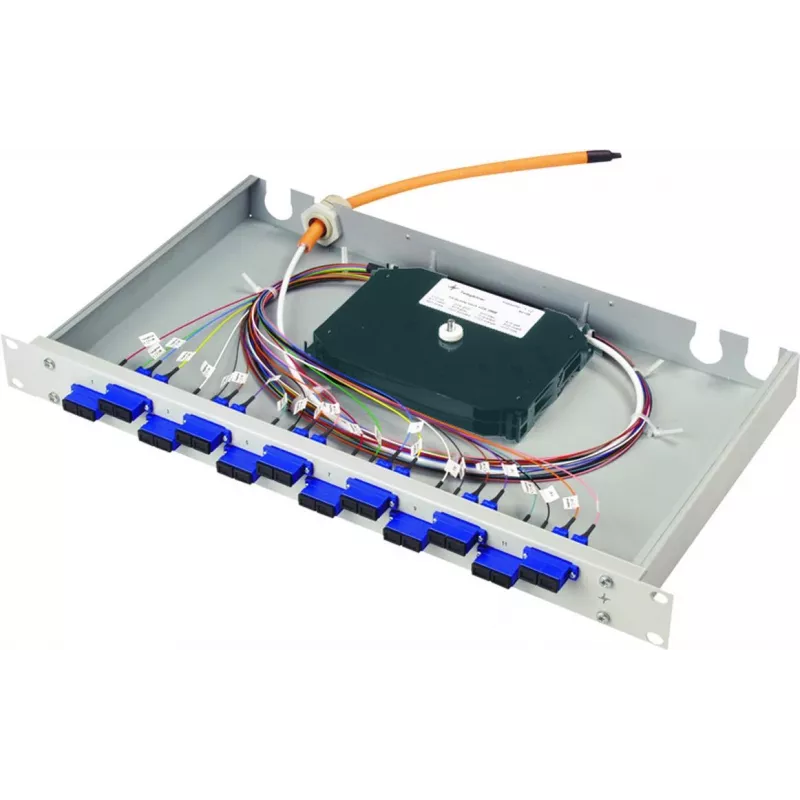

Telegärtner 19 inch 1U Fiber Optic Patch Panel Basis eco, 12 x SC-Duplex, 24 x SC Pigtails, OM3 Multimode 50/125µm

In a busy data center, every rack unit counts. The Telegärtner Basis eco patch panel packs 24 fiber connections into a single 1U space, giving network technicians a tidy, reliable way to manage OM3 multimode links. It comes pre-loaded with 12 SC-Duplex adapters and 24 SC pigtails, so installation is quick and consistent.

Key specifications

• 19-inch rack mount, 1U height
• 12 x SC-Duplex adapter ports (24 fiber connections total)
• 24 x SC pigtails, multimode OM3, 50/125 µm core/cladding
• Multimode fiber optic patch panel
• Series: Basis eco
• Colour: Grey

Why choose it

The Basis eco series delivers essential fiber management without unnecessary extras. The pre-installed pigtails and adapters reduce on-site termination time, while the 1U form factor maximizes rack density. OM3 fiber supports 10 Gigabit Ethernet up to 300 meters, making it suitable for high-speed backbone connections.

Ideal use cases

• Data center fiber distribution
• LAN backbone patching
• Telecommunication rooms
• Enterprise network cross-connects

Good to know

The panel is designed for standard 19-inch racks and cabinets. It includes 24 SC pigtails factory-terminated to the adapters, ensuring consistent performance. The grey finish blends with most rack equipment. For best results, use with OM3-rated patch cords and maintain proper bend radius during installation.
