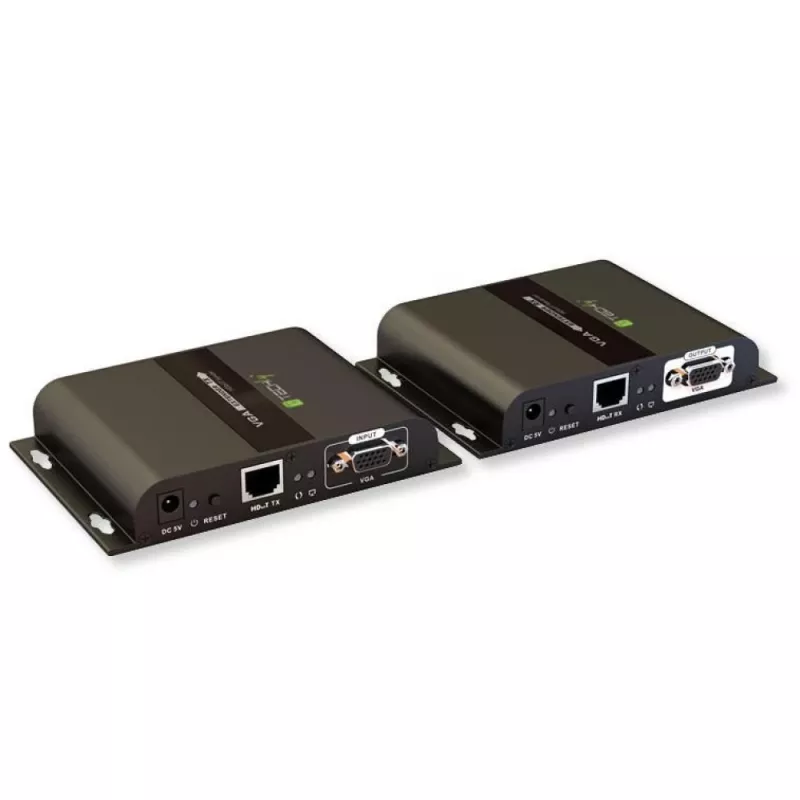

Techly IDATA EXTIP-383V AV extender AV transmitter & receiver Black

Techly IDATA EXTIP-383V AV extender AV transmitter & receiver Black
Techly IDATA EXTIP-383V AV extender AV transmitter & receiver Black
Techly IDATA EXTIP-383V AV extender AV transmitter & receiver Black
Techly IDATA EXTIP-383V AV extender AV transmitter & receiver Black
Techly IDATA EXTIP-383V AV extender AV transmitter & receiver Black
Techly IDATA EXTIP-383V AV extender AV transmitter & receiver Black
Techly IDATA EXTIP-383V AV extender AV transmitter & receiver Black
Techly IDATA EXTIP-383V AV extender AV transmitter & receiver Black
R1,257
VGA Extender with 3.5mm audio can estendendere VGA and analog audio signals up to 120m over a single CAT6 cable. It saves on the cost of the cable and supports RGBHV input signal.Due to the high bandwidth consumption should use these devices with IGMP router, or alternatively on dedicated networks o... Read More
Stock 2 Code 2409769 Brand TECHLY Model IDATA EXTIP-383V Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
VGA Extender with 3.5mm audio can estendendere VGA and analog audio signals up to 120m over a single CAT6 cable. It saves on the cost of the cable and supports RGBHV input signal.
Due to the high bandwidth consumption should use these devices with IGMP router, or alternatively on dedicated networks or separate port based VLAN.

Techly IDATA EXTIP-383V. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1080 pixels, Cable types supported: Cat5, Cat5e, Cat6. Operating voltage: 5 V, Input current: 2 A, Power consumption (transmitter) (max): 7.5 W. Width: 138 mm, Depth: 90 mm, Height: 23.8 mm. Cables included: Audio (3.5mm)

Key Highlights
  • Supports HDbitT technology
  • Extends VGA and analog audio signals over a single CAT5 / 5e / 6
  • Supports resolutions up to 1920x1080 @ 60Hz
  • VGA signal transmission up to 120m
  • RGBHV Support
  • 3.5mm audio jack Support
  • Cascading to divide and extend the VGA signal indefinitely
  • Housing material aluminum alloy
  • AV transmitter & receiver 1920 x 1080 pixels Black
  • Maximum transfer distance: 120 m
  • 60 Hz
Specifications
3.5 mm (1/8-inch) in
Yes
3.5 mm (1/8-inch) out
Yes
AC adapter included
Yes
Audio support
Yes
Cable types supported
Cat5, Cat5e, Cat6
Cables included
Audio (3.5mm)
Certification
CE, FCC, RoHS
Compliance certificates
CE, RoHS
Depth
90 mm
Height
23.8 mm
Input current
2 A
Manual
Yes
Maximum refresh rate
60 Hz
Maximum resolution
1920 x 1080 pixels
Maximum transfer distance
120 m
Operating temperature (T-T)
0 - 60 °C
Operating voltage
5 V
Power consumption (receiver) (max)
7 W
Power consumption (transmitter) (max)
7.5 W
Product colour
Black
Receiver dimensions (WxDxH)
138 x 90 x 23.8 mm
RJ-45 input ports
1
RJ-45 output ports
1
Supported graphics resolutions
800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 960, 1360 x 768 (WXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Transmitter dimensions (WxDxH)
138 x 90 x 23.8 mm
Type
AV transmitter & receiver
Vendor code
025541
VGA (D-Sub) input ports
1
VGA (D-Sub) output ports
1
VGA (D-Sub) ports quantity
2
Weight
954 g
Width
138 mm

Leaflet

Open Leaflet
