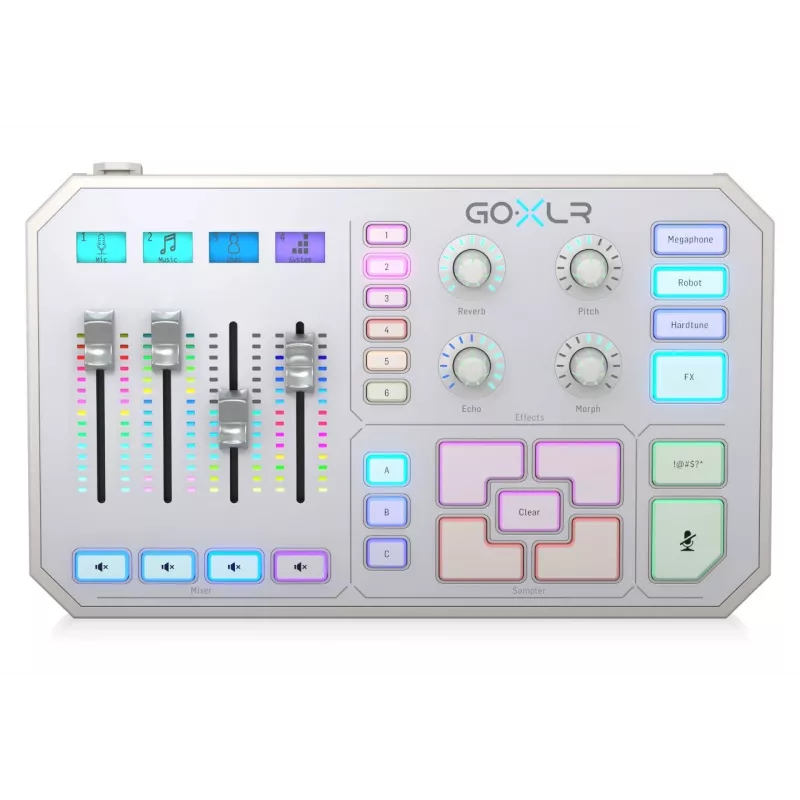

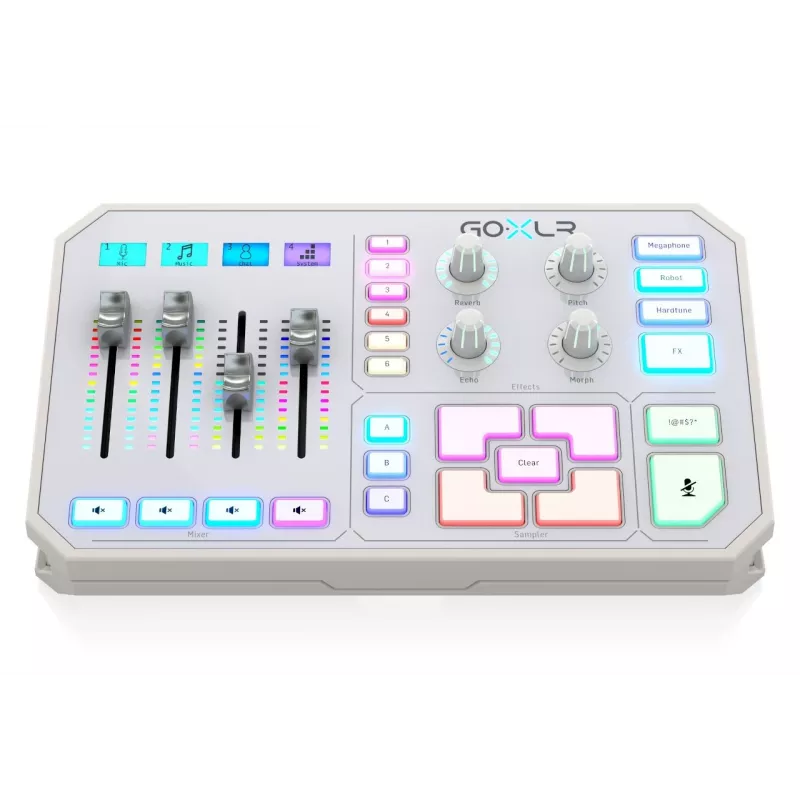

USB audio mixer TC‑Helicon GO XLR‑WH white — 1 XLR mic input, USB‑B, 48 V phantom, 24‑bit/48 kHz, optical out

The TC‑Helicon GO XLR‑WH white is a compact USB audio mixer designed for streaming, podcasting and live voice applications. It provides one XLR microphone input with switchable 48 V phantom power, USB Type‑B connection for digital audio transfer at 24‑bit/48 kHz, an optical digital output and multiple analogue I/O including AUX in/out and a 3.5 mm headphone jack. The unit features a white finish, backlit controls and a small footprint that fits desktop setups while consuming around 10 W of power.

Advantages

The mixer delivers 24‑bit digital sound processing at a 48 kHz sample rate and a high line signal‑to‑noise ratio, enabling clear vocal capture and low noise. Its single XLR input with 48 V phantom power supports condenser microphones, while the USB Type‑B port and optical out provide flexible digital routing to computers and external recorders. Backlit and customizable controls improve visibility and workflow in low‑light conditions. Physical dimensions and moderate weight make it easy to place on a desk or in a small studio.

Suitable for

• Live streaming and content creation
• Podcast recording with a single microphone
• Voiceovers and home studio vocal work
• Connecting to PC or digital recorders via USB or optical out

Key specifications

• One XLR microphone input with 48 V phantom power
• Digital audio processing: 24 bit at 48 kHz
• Line signal‑to‑noise ratio: 101 dB
• Optical digital output for external converters or recorders
• USB Type‑B connection for computer audio interface
• AUX input and AUX output for analogue sources
• 3.5 mm headphone jack for monitoring
• Four‑band equalizer for tone shaping
• Backlit controls and white enclosure; compact dimensions (285 x 174 x 82 mm) and weight ~1.55 kg
• Typical power consumption: 10 W; internal fuse: 1 A

How to use

Connect a microphone to the XLR input and enable 48 V phantom power if using a condenser microphone. Use the USB Type‑B port to connect the mixer to a computer for digital audio streaming or recording at 24 bit/48 kHz. Route digital output via the optical port when connecting to external digital devices, or use the AUX in/out for analogue sources and monitoring. Adjust the four‑band EQ to shape vocal tone, monitor through the 3.5 mm headphone jack and use the backlit controls to operate in dim environments. Always switch the device off before connecting or disconnecting cables to avoid potential signal or power issues.

Recommendations

For best results, set input gain to avoid clipping while keeping clear headroom; enable phantom power only when required by the microphone; use the optical out for lossless digital connections; and place the unit on a stable surface to reduce handling noise. Follow safety guidance and power the device down before making cable changes.
